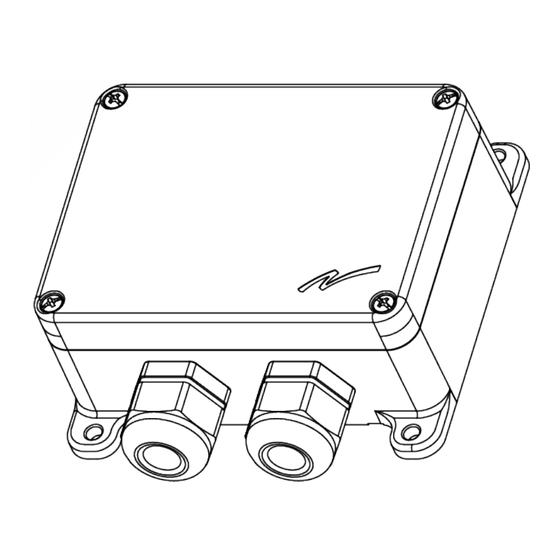

- Page 1 INSTALLATION INSTRUCTIONS Receivers: R8-01, R8-06, R8-10, R8-11 safe smart strong IM-PN-RX101-EN-v06 Language: English (original)
- Page 2 ©Tele-Radio i Lysekil AB August Barks gata 30A SE-421 32 Västra Frölunda Sweden Phone: +46 (0)31 748 54 60...
-
Page 3: Table Of Contents
Installation instructions│ R8│ CONTENTS CHAPTER 1: INTRODUCTION 1.1 About this document 1.2 About R8 receivers – R8-01, R8-06, R8-10, R8-11– CHAPTER 2: SAFETY 2.1 Warnings & restrictions CHAPTER 3: TECHNICAL DATA 3.1 Receiver specifications 3.2 Current consumption CHAPTER 4: PRODUCT GENERAL DESCRIPTION 4.1 Receiver description 4.2 Mechanical installation 4.3 Placement of antenna... - Page 4 Installation instructions│ R8│ 8.3 Erase all registered transmitters 8.4 Master reset of the receiver CHAPTER 9: WARRANTY, SERVICE, REPAIRS, AND MAINTENANCE CHAPTER 10: REGULATORY INFORMATION 10.1 Europe 10.2 EAC ANNEX A: FREQUENT TERMS ANNEX B: INDEX IM-PN-RX101-EN-v06...
-
Page 5: Chapter 1: Introduction
These Installation instructions have been published by Tele Radio and are not subject to any guarantees. The Installation instructions may be withdrawn or revised by Tele Radio at any time and without further notice. Corrections and updates will be added to the latest version of the manual. Always download the Installation instructions from our website, www.tele-radio.com, for the latest... - Page 6 Tele Radio Installation instructions do not include or address the specific instructions and safety warnings of the end product manufacturer. Tele Radio products are covered by a warranty against material, construction, or manufacturing faults. See "Chapter 9: Warranty, service, repairs, and maintenance".
-
Page 7: About This Document
1 . 1 A b o u t t h i s d o c u m e n t Before installing or operating the product, read the corresponding documentation carefully. Tele Radio's product range is composed of transmitters, receivers, and accessories intended for use together as a system. These Installation instructions cover general safety issues, main technical specifications, standard installation, configuration and operating instructions, as well as general troubleshooting. -
Page 8: About R8 Receivers - R8-01, R8-06, R8-10, R8-11
1 . 2 A b o u t R 8 r e c e i v e r s – R 8 - 0 1 , R 8 - 0 6 , R 8 - 1 0 , R 8 - 1 1 – R8 receivers have simplex communication and work in either discontinuous or continuous mode. -
Page 9: Chapter 2: Safety
The following information is intended for use as a complement to applicable local regulations and standards. IMPORTANT! Tele Radio remote controls are often built into wider applications. These systems should be equipped with: • a wired emergency stop where necessary •... - Page 10 Installation instructions│ R8│ Chapter 2: Safety To utilize the safety features of the system, use the stop relays in the safety circuitry of the object/ equipment to be controlled. When the equipment controlled by the receiver's standard relays is connected via the stop relays, make sure that the maximum current through the stop relays is still within the specifications.
- Page 11 Installation instructions│ R8│ Chapter 2: Safety Mount the receiver in a location where the LEDs are easily visible and the buttons accessible. Make sure to install available accessories inside or on the receiver before permanently installing the receiver. A permanent installation of the product must include fuse protection of the equipment and cables against short circuits.
- Page 12 Installation instructions│ R8│ Chapter 2: Safety 2 . 1 . 3 M A I N T E N A N C E Before maintenance intervention on any remote controlled equipments: • always remove all electrical power from the equipment.
-
Page 13: Chapter 3: Technical Data
Installation instructions│ R8│ Chapter 3: Technical data CHAPTER 3: TECHNICAL DATA 3 . 1 R e c e i v e r s p e c i f i c a t i o n s R8-01 R8-06... -
Page 14: Current Consumption
Installation instructions│ R8│ Chapter 3: Technical data 3 . 2 C u r r e n t c o n s u m p t i o n Input power Min.* Max.** 12 V DC 0.02 A 0.03 A 24 V DC 0.02 A... -
Page 15: Chapter 4: Product General Description
Installation instructions│ R8│ Chapter 4: Product general description CHAPTER 4: PRODUCT GENERAL DESCRIPTION The pictures shown in this chapter are for illustrative purposes only. 4 . 1 R e c e i v e r d e s c r i p t i o n... -
Page 16: Mechanical Installation
Installation instructions│ R8│ Chapter 4: Product general description 4 . 2 M e c h a n i c a l i n s t a l l a t i o n 4 . 2 . 1 R 8 - 0 1 , R 8 - 0 6... - Page 17 Installation instructions│ R8│ Chapter 4: Product general description 4 . 2 . 2 R 8 - 1 0 , R 8 - 1 1 NOTE: For mounting on a wall or equipment, use 4 M5x30 mm screws or equivalent fastening method.
- Page 18 Installation instructions│ R8│ Chapter 4: Product general description 4 . 2 . 3 I N S T A L L A T I O N P R E C A U T I O N S RISK OF ELECTRIC SHOCK The receiver must only be opened by qualified installers or authorized personnel.
-
Page 19: Placement Of Antenna
Installation instructions│ R8│ Chapter 4: Product general description 4 . 3 P l a c e m e n t o f a n t e n n a NOTE: For optimum performance, place the receiver /antenna well away from metal objects such as metal girders, high-voltage cables and other antennas. -
Page 20: Chapter 5: Board Description
Installation instructions│ R8│ Chapter 5: Board description CHAPTER 5: BOARD DESCRIPTION NOTE: The pictures shown in this chapter are for illustrative purposes only. Depending on the configuration, the actual product appearance may differ from the basic model used for reference. -
Page 21: Base Board
Installation instructions│ R8│ Chapter 5: Board description 5 . 1 B a s e b o a r d NOTE: This board is integrated in the following models: R8-01, R8-06, R8-10, R8-11. 1. Terminal block for input power and 6. - Page 22 Installation instructions│ R8│ Chapter 5: Board description 5 . 1 . 1 T E R M I N A L B L O C K F O R I N P U T P O W E R A N D R E L A Y S 1 – 5 O N T H E B A S E B O A R D NOTE: If voltage on the function relay(s) is higher than 60 V DC or 30 V AC, use...
- Page 23 Installation instructions│ R8│ Chapter 5: Board description 5 . 1 . 2 T E R M I N A L B L O C K F O R D I G I T A L I N P U T S O N T H E B A S E B O A R D NOTE: For assistance with digital inputs, please contact your representative.
-
Page 24: 6-Relay Expansion Board
5 . 2 6 - R e l a y e x p a n s i o n b o a r d NOTE: This board is integrated in the following models: R8-06 and R8-11. 1. Terminal blocks for function relays 4. - Page 25 Installation instructions│ R8│ Chapter 5: Board description 5 . 2 . 2 T E R M I N A L B L O C K F O R R E L A Y S O N T H E 6 - R E L A Y E X P A N S I O N B O A R D NOTE: If voltage on the function relay(s) is higher than 60 V DC or 30 V AC, use...
-
Page 26: Chapter 6: Status And Error Indications
Installation instructions│ R8│ Chapter 6: Status and error indications CHAPTER 6: STATUS AND ERROR INDICATIONS LEDs 1–5 are called relays LEDs, LED 6 is the power indication LED and LEDs 7–10 are called function LEDs. 6 . 1 R e l a y L E D s i n d i c a t i o n i n n o r m a l o p e r a t i o n NOTE: The numbers above the five red leds (LED1–5) correspond to the relay... -
Page 27: Function Leds Indication In Normal Operation
Installation instructions│ R8│ Chapter 6: Status and error indications 6 . 2 F u n c t i o n L E D s i n d i c a t i o n i n n o r m a l o p e r a t i o n... -
Page 28: Error Codes
6 . 3 E r r o r c o d e s If an error occurs that requires the attention of Tele Radio, all function LEDs will flash. At the same time, one or more relay LEDs will light up. Write down the error code and contact your representative for assistance. -
Page 29: Chapter 7: Operation
Installation instructions│ R8│ Chapter 7: Operation CHAPTER 7: OPERATION 7 . 1 G e n e r a l i n f o r m a t i o n 7 . 1 . 1 R E C E I V E R S W I T H L O G I N / L O G O U T... -
Page 30: Radio Mode
Installation instructions│ R8│ Chapter 7: Operation 7 . 2 R a d i o m o d e NOTE: The radio mode is determined by the selected Operating mode. To establish a radio link between the transmitter and receiver, both units need to be set to the same radio mode. -
Page 31: Chapter 8: Configuration Menu
Installation instructions│ R8│ Chapter 8: Configuration menu CHAPTER 8: CONFIGURATION MENU All configuration settings require access to the receiver circuit board(s). RISK OF ELECTRIC SHOCK The receiver must only be opened by qualified installers or authorized personnel. Make sure the power supply is switched off before opening the receiver. -
Page 32: Register A Transmitter In The Receiver
8 . 3 R e g i s t e r a b a t t e r y l e s s b u t t o n ( B L B ) t r a n s m i t t e r This procedure is intended for customer specific applications where a transmitter's function buttons 1–4 can be remapped (duplicated) to other buttons on the same Button 1 and 2 are factory defaults (see relevant Tele Radio transmitter installation instructions). IM-PN-RX101-EN-v06... - Page 33 Installation instructions│ R8│ Chapter 8: Configuration menu transmitter or on a BLB transmitter. RISK OF UNINTENDED EQUIPMENT OPERATION Only transmitters that are intended for use should be registered in the receiver. Failure to follow these instructions could result in death, serious injury, or equipment damage.
- Page 34 Installation instructions│ R8│ Chapter 8: Configuration menu The corresponding relay LED stops flashing and remains lit. The receiver is in BLB registration mode. NOTE: If no BLB button is pressed within 10 seconds, the receiver will exit registration mode. 6. Press the BLB button to be remapped to.
-
Page 35: Set Momentary Or Latching Relay Functions
Installation instructions│ R8│ Chapter 8: Configuration menu 8 . 4 S e t m o m e n t a r y o r l a t c h i n g r e l a y f u n c t i o n s The setting options depend on the selected Operating mode (see "8.5 ... -
Page 36: Operating Modes
Installation instructions│ R8│ Chapter 8: Configuration menu 8 . 5 O p e r a t i n g m o d e s This receiver is provided with one Operating mode as standard. For other Operating modes, contact your representative for assistance. - Page 37 Installation instructions│ R8│ Chapter 8: Configuration menu 3. Press the Function button once to move to the next available Operating mode (repeat until the LED combination corresponds to the desired Operating mode). The corresponding relay LEDs lights. 4. Press the Select button to confirm.
-
Page 38: Active Load Select
Installation instructions│ R8│ 8 . 0 . 1 O P E R A T I N G M O D E 1 NOTE: Only for discontinuous radio mode. Button functions On relays – Work relays Relay 11 is active when any of the relays 1–10 are... - Page 39 Installation instructions│ R8│ 8 . 1 . 1 S H O W L O A D S E L E C T 1. Press the Function button five times and keep it pressed until function LEDs 10 (orange) and 9 (green) light.
-
Page 40: Log A Transmitter Out
Installation instructions│ R8│ 3. Press the Select button once to move to the next available Load (repeat until the LED combination corresponds to the desired Load select). The corresponding status LED flashes and the Load can be activated. 4. Press the Select button to confirm. - Page 41 Installation instructions│ R8│ 8 . 3 E r a s e a l l r e g i s t e r e d t r a n s m i t t e r s NOTE: The following instructions will erase all registered transmitters from the receiver.
- Page 42 Tele Radio products are covered by a warranty against material, construction and manufacturing faults. During the warranty period, Tele Radio may replace the product or faulty parts. Work under warranty must be performed by Tele Radio or by an authorized service center specified by Tele Radio.
- Page 43 For proper treatment, recovery and recycling, please take this product to a designated collection point. Tele Radio strives to minimize the use of hazardous materials, promotes reuse and recycling, and reduces emissions to air, soil and water. When a commercially viable alternative is available, Tele Radio strives to restrict or eliminate substances and materials that pose an environmental, health or safety risk.
- Page 44 Installation instructions│ R8│ Chapter 10: Regulatory information 1 0 . 2 E A C Applies to: R8-01, R8-06, R8-10, R8-11 1 0 . 2 . 1 E A C S T A T E M E N T ( Д Е К Л А Р А Ц И Я Е А С ) This product is declared as compliant within Eurasian Economic Union (EAC).
- Page 45 Installation instructions│ R8│ Annex A: Frequent terms ANNEX A: FREQUENT TERMS Configuration ID Numerical code stored in both the transmitter and receiver unit. The receiver unit can only be controlled by a transmitter with the correct configuration ID. Continuous When in continuous radio mode the transmitter unit transmits radio mode continuously when it is switched on.
- Page 46 Installation instructions│ R8│ Annex A: Frequent terms On relay Relay that is active when the receiver unit is operating and a radio link is established, regardless of whether any other relays are active. Operating mode One or more Operating modes are stored in the receiver unit.
- Page 47 Installation instructions│ R8│ Annex B: Index ANNEX B: INDEX About R15 receivers Active Load select AEC Statement Boards CE marking Configuration menu Enter menu mode Current consumption Dimensions Erase all registered transmitters Function LEDs in normal operation mode Installation precautions...
- Page 48 Installation instructions│ R8│ Annex B: Index Maintenance Master reset Menu mode Enter menu mode Mounting dimensions Receiver Number of channels Operating modes Operating temperature Power supply Radio communication Radio frequency band Radio mode Register Register a BLB transmitter Relay functions...
- Page 49 Installation instructions│ R8│ Annex B: Index Warnings & restrictions Installation and commission Maintenance Operation WEEE directive Weight IM-PN-RX101-EN-v06...
- Page 50 safe smart strong These Installation instructions are subject to change without prior notice. Download the latest Installation instructions from www.tele-radio.com .
