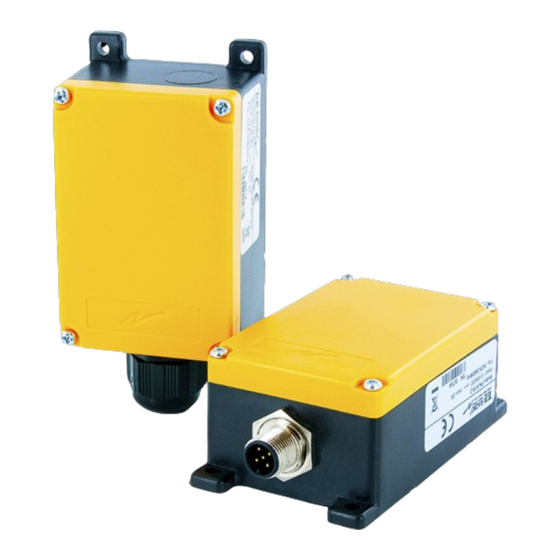

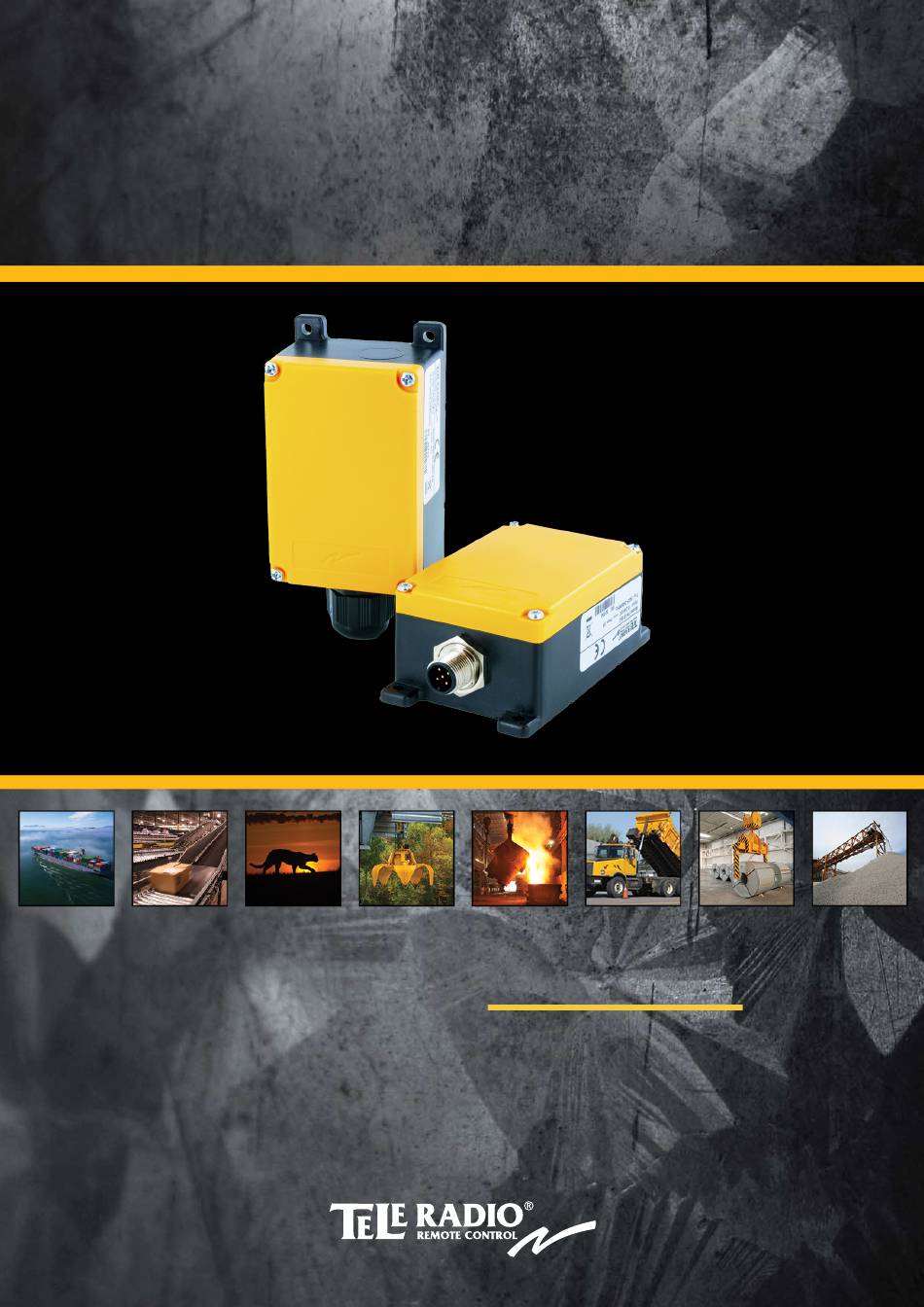

- Page 1 Panther Installation instructions PN-R18-1/2 Receiver IM-PN-RX105-A02-EN Language: English (original)
-
Page 2: Table Of Contents
CONTENTS Chapter 1: CUSTOMER INFORMATION Chapter 2: PRODUCT DESCRIPTION Base board Function LEDs indication Technical data Current consumption Mechanical installation Chapter 3: USERS' GUIDE Radio mode Register the transmitter in the receiver Logout Operating modes CANopen Chapter 4: GUARANTEE, SERVICE, REPAIRS AND MAINTENANCE Chapter 5: REGULATORY INFORMATION Chapter 6: FREQUENT TERMS... -
Page 3: Chapter 1: Customer Information
These instructions are published by Tele Radio AB and are not subject to any guarantee. The instructions may be removed or revised by Tele Radio AB at any time and without further notice. Corrections and additions will be added to the latest version of the instructions. - Page 4 Tele Radio AB strives to minimize the use of hazardous materials, promotes reuse and recycling, and reduces emissions to air, soil and water. When a commercially viable alternative is available, Tele Radio AB strives to restrict or eliminate substances and materials that pose an environmental, health or safety risk.
-
Page 5: Chapter 2: Product Description
Chapter 2: PRODUCT DESCRIPTION CHAPTER 2: PRODUCT DESCRIPTION WARNING! The receiver must NOT be opened by anyone other than a qualified installer. Make sure that the electricity is switched off before opening the receiver. BASE BOARD NOTE! This base board is fitted in the following receiver models: PN-R18-1, PN-R18-2 ... -
Page 6: Function Leds Indication
M12 CONNECTOR NOTE! This connector is only used on the receiver model: PN-R18-2 1. Shield 2. Input power 12–24V DC 3. GND 4. CAN high 5. CAN low FUNCTION LEDS INDICATION LED Colour Off On Indicates ... -
Page 7: Technical Data
TECHNICAL DATA Input power 12–24V DC Digital inputs Radio communication Simplex Max. number of registered transmitters IP code Dimensions 80 x 54 x 38 mm / 3 x 2 x 1.5 in Weight Max. 200 g / 0.44 Ibs Operating temperature -20 –... -
Page 8: Mechanical Installation
MECHANICAL INSTALLATION 54.1 mm (2.1 in) 44 mm (1.7 in) Cable diameter 3.5–10 mm (0.14–0.39 in) - 8 -... -
Page 9: Chapter 3: Users' Guide
NOTE! The registration procedure for PN-R18-1/2 differs compared to other Panther receivers. 1. Set the transmitter in registration mode (see relevant Tele Radio Transmitter Installation instruc- tions). 2. Press the receiver Function button The function LED lights (red). -
Page 10: Operating Modes
OPERATING MODES Select Operating mode 1. Press the Function button 4 times. Function LED 8 lights (orange). 2. Press the Select button to see the Operating mode in use. The indication LEDs light (red) according to the table below, function LED 8 flashes (orange). ... -
Page 11: Canopen
CANOPEN Show/change CANopen node ID CANopen node IDs from 1–15 can be selected from the receiver user interface. Any value greater than 15 will be shown as 15 on the receiver user interface. NOTE! When setting CANopen node IDs greater than 15, please contact your representative. ... - Page 12 SHOW/CHANGE CAN BITRATE 1. Press the Function button three times. Function LED 7 lights (green) and indication LEDs 9–12 (red) show the current CAN bitrate according to the table below. 2. Press the Select button. The indication LEDs 9–12 (red) show the current CAN bitrate according to the following table and function LED 7 flashes (green).
-
Page 13: Chapter 4: Guarantee, Service, Repairs And Maintenance
Tele Radio AB products are covered by a guarantee/warranty against material, construction and manufacturing faults. During the guarantee/warranty period, Tele Radio AB may replace the product or faulty parts. Work under guarantee/warranty must be carried out by Tele Radio AB or by an authorized service centre specified by Tele Radio AB. -
Page 14: Chapter 5: Regulatory Information
This product is in compliance with the essential requirements of directive 1995/5/EC of the European Parliament and of the Council. Latest version of the EC Declaration of Conformity can be downloaded from the Tele Radio AB website, www.tele-radio.com. - 14 -... -
Page 15: Chapter 6: Frequent Terms
Chapter 6: FREQUENT TERMS CHAPTER 6: FREQUENT TERMS Configuration ID Numerical code stored in both the transmitter and receiver unit. The receiver unit can only be controlled by a transmitter with the correct configuration ID. Continuous radio When in continuous radio mode the transmitter unit transmits continuously when mode it is switched on. - Page 16 This installation instruction is subject to change without prior notice. Download the latest installation instruction from www.tele-radio.com...
