Natural Gas Models
Natural Gas Models
FPB-26DBS22TPSI-N
FPB-29DBS22TPSI-N
FPB-34DBS31TPSI-N
FPB-39DBS31TPSI-N
FPB-25SFBS22TPSI-N 25" Square Flat Disc with 22" Stainless Spur Burner
FPB-30SFBS22TPSI-N 30" Square Flat Disc with 22" Stainless Spur Burner
FPB-34SFBS31TPSI-N 34" Square Flat Disc with 31" Stainless Spur Burner

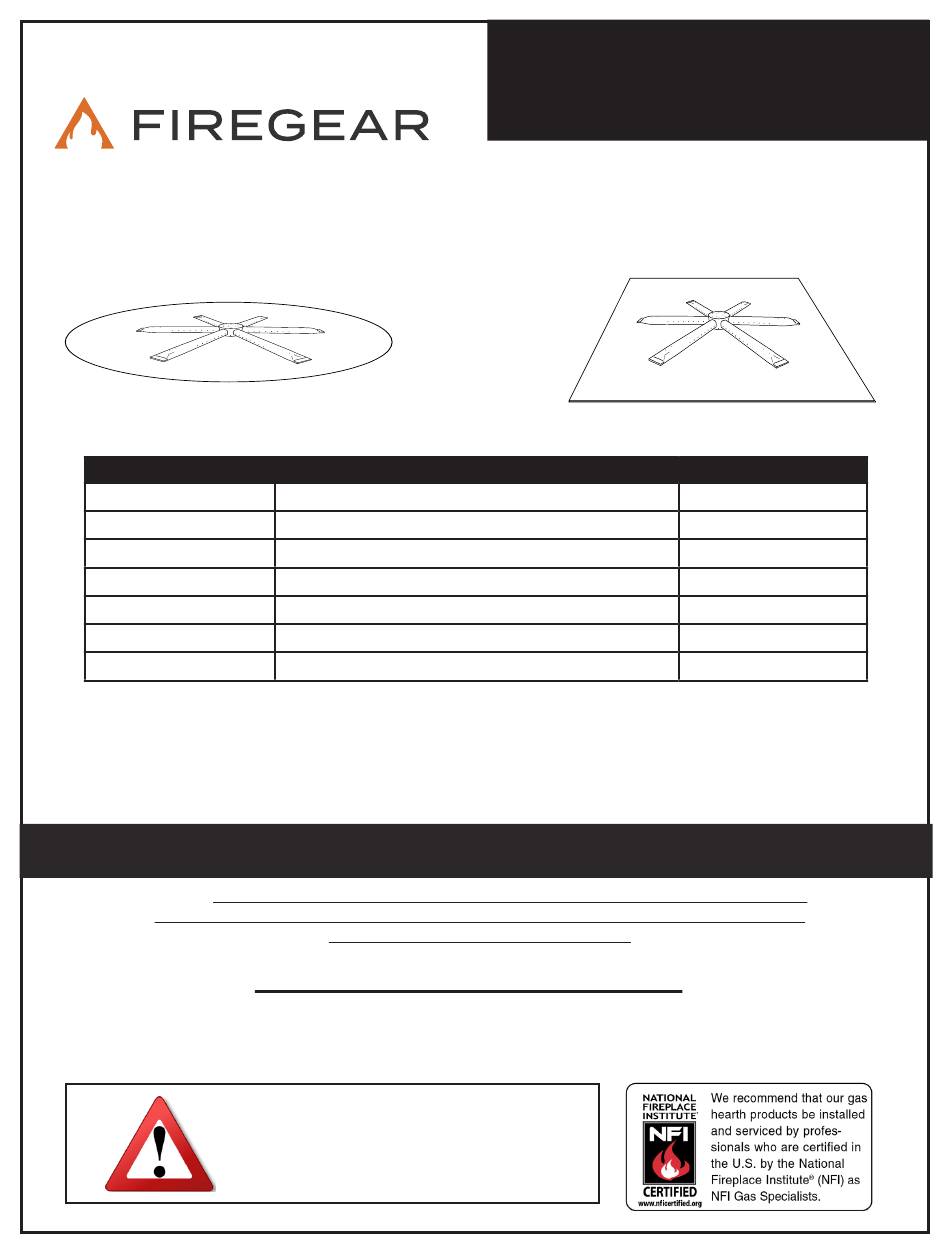

Outdoor Thermocouple Piloted
Safety Ignition (TPSI) Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
NOTE: All TPSI models come shipped from the factory as Natural gas or Propane (LP)
gas. They must be order specifically as Natural gas or Propane models and cannot be
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS
Description
Description

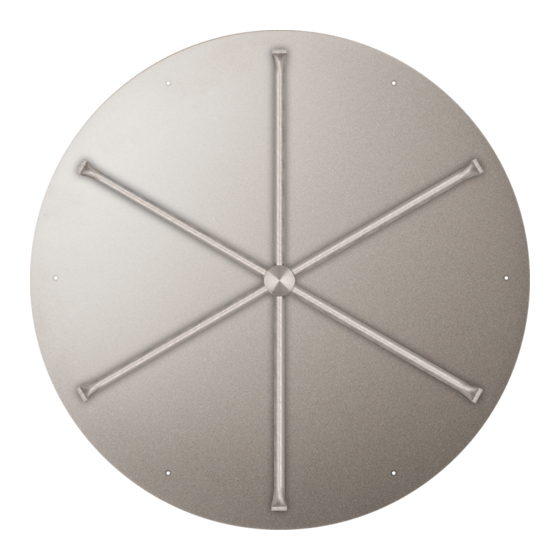

26" Round Flat Disc with 22" Stainless Spur Burner
29" Round Flat Disc with 22" Stainless Spur Burner
34" Round. Flat Disc with 31" Stainless Spur Burner
39" Round. Flat Disc with 31" Stainless Spur Burner
field converted from one gas to another.
INSTALLATION PRECAUTION:
Manual # 90264
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Propane Gas Models
Propane Gas Models
FPB-26DBS22TPSI-P
FPB-29DBS22TPSI-P
FPB-34DBS31TPSI-P
FPB-39DBS31TPSI-P
FPB-25SFBS22TPSI-P
FPB-30SFBS22TPSI-P
FPB-34SFBS31TPSI-P
