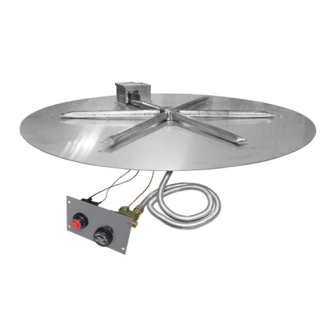

Firegear FPB-26DBS22TPSI-N Installation And Operating Instructions Manual
Outdoor thermocouple piloted safety ignition (tpsi) fire pits
Hide thumbs
Also See for FPB-26DBS22TPSI-N:
Table of Contents
Advertisement
Quick Links

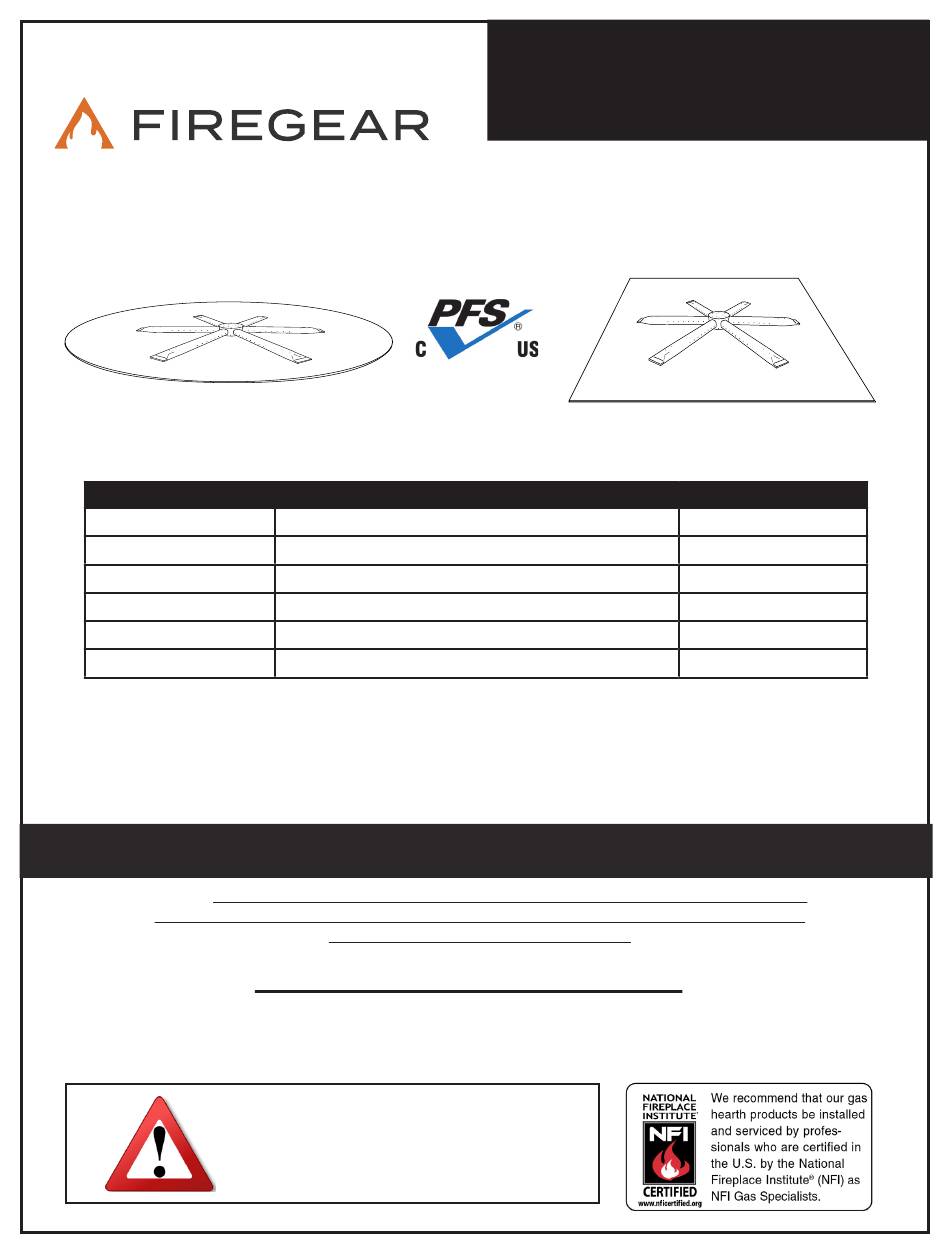

Natural Gas Models
Natural Gas Models
FPB-26DBS22TPSI-N
FPB-29DBS22TPSI-N
FPB-34DBS31TPSI-N
FPB-25SFBS22TPSI-N 25" Square Flat Disc with 22" Stainless Spur Burner
FPB-30SFBS22TPSI-N 30" Square Flat Disc with 22" Stainless Spur Burner
FPB-34SFBS31TPSI-N 34" Square Flat Disc with 31" Stainless Spur Burner
Outdoor Thermocouple Piloted
Safety Ignition (TPSI) Fire Pits
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
NOTE: All TPSI models come shipped from the factory as Natural gas or Propane (LP)
gas. They must be order specifically as Natural gas or Propane models and cannot be
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS
Description
Description
26" Round Flat Disc with 22" Stainless Spur Burner
29" Round Flat Disc with 22" Stainless Spur Burner
34" Round. Flat Disc with 31" Stainless Spur Burner
field converted from one gas to another.
INSTALLATION PRECAUTION:
Manual # 90264
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
#20-025
Propane Gas Models
Propane Gas Models
FPB-26DBS22TPSI-P
FPB-29DBS22TPSI-P
FPB-34DBS31TPSI-P
FPB-25SFBS22TPSI-P
FPB-30SFBS22TPSI-P
FPB-34SFBS31TPSI-P
Advertisement
Table of Contents
Related Manuals for Firegear FPB-26DBS22TPSI-N
Summary of Contents for Firegear FPB-26DBS22TPSI-N
- Page 1 MODELS Natural Gas Models Natural Gas Models Description Description Propane Gas Models Propane Gas Models FPB-26DBS22TPSI-N 26” Round Flat Disc with 22” Stainless Spur Burner FPB-26DBS22TPSI-P FPB-29DBS22TPSI-N 29” Round Flat Disc with 22” Stainless Spur Burner FPB-29DBS22TPSI-P FPB-34DBS31TPSI-N 34” Round. Flat Disc with 31” Stainless Spur Burner FPB-34DBS31TPSI-P FPB-25SFBS22TPSI-N 25”...
- Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. DANGER WARNING FIRE OR EXPLOSION HAZARD...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. -
Page 4: Model Specifications
Model: Model: Natural Gas (NG) Propane Gas (LP) Disc Min.Install Ground Side Combustible Combustible Depth Diameter Opening Level Wall Ceiling Floor FPB-26DBS22TPSI-N FPB-26DBS22TPSI-P 1/16” 25” Dia 23” 8” 36” 120” 18” FPB-29DBS22TPSI-N FPB-29DBS22TPSI-P 1/16” 29” Dia 27” 8” 36” 120”... -
Page 5: Preparation For Non-Combustible Structure
This appliance must be isolated from the gas supply piping system by closing its manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than ½” psig (3.5kPa) Examples of Cross Ventilation 2- Firegear 6 x12 vents (Part #VENT-KIT-6x12) HIGH ELEVATION INSTALLATION... -
Page 6: Gas Pipe Sizing Chart
GAS PIPE SIZING CHART REFERENCE GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 7: Installation Into An Approved Enclosure
13. Ensure proper water drainage is also incorporated into the fire pit enclosure. NOTICE Firegear Outdoors fire pits are constructed and tested to follow the rigid ANSI standards for gas appliances and manufactured safely providing dependable and certified products. If these fire pits are not installed according to the installation manual (i.e. -
Page 8: Removing Parts From Carton
REMOVING PARTS FROM CARTON Valve Assembly Flexible Gas Line Thermocouple Lead Piezo Wires Pilot Tubing Control Panel Hardware Carton Contents Fig. 4 Removing contents from carton. This fire pit is comes partially assembled from the factory. The pilot tubing and thermocouple leads are 48” in total length, therefore, when mounting the Gas Valve/Piezo Burner Pan mounting plate, ensure the mounting plate is close enough... -
Page 9: Control Panel, Pilot & Media Information
Thermocouple PIEZO48WH Connection PIEZO25WH Pilot Gas Remove red button cap and install battery into Piezo ignitor module. Line Outlet To Burner Inlet Gas Mounting Plate Supply Plastic Nut Red Button Cap Piezo Ignition Control Knob Fig. 8 Installing battery into Piezo. Fig. -
Page 10: Detail View Of Installation
Non-Combustible Enclosure Pilot Spur Burner Flat Pan Pilot Tube Piezo Wires Gas Valve Thermocouple Gas Supply Piezo Shut-O Gas valve and flexible gas lines are supplied; E-Stop shut-off is not supplied, but available in accessories page. Flex lines with flared fittings do not require Teflon tape or pipe compound. Ensure not to “kink” the flex lines to allow better gas flow of gas. -
Page 11: Operation & Lighting
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 12: Replacement Parts
FPB ROUND AND SQUARE TPSI REPLACEMENT PARTS Drawings Not to Scale TPSI Round & Square Flat Disc Burning Spur Fire Pits REV. A Page 12... -
Page 13: Replacement Parts List
FPB ROUND AND SQUARE TPSI REPLACEMENT PARTS Qty. Description Item Part Number 26-inch Round Flat Stainless Disc PAN-SS26D 29-inch Round Flat Stainless Disc PAN-SS29D 34-inch Round Flat Stainless Disc PAN-SS34D 25-inch Square Stainless Pan PAN-SS25SF 30-inch Square Stainless Pan PAN-SS30SF 34-inch Square Stainless Pan PAN-SS34SF 16-inch Spur (used on 19”... -
Page 14: Tpsi Troubleshooting/Maintenance
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. -
Page 15: Optional Accessories
TPSI-LPK41 - 75,000 Btu models Model: PAVER-CP-TPSI TPSI-LPK47 - 50,000 Btu models - Kits include main burner orifice and PSE-SUB163 pilot orifice. NOTE: See the Firegear Outdoors catalogue for other accessories also available. FOR TECHNICAL SERVICE, CALL: (800) 966-8126 Firegear Outdoors 17322 Gothard St. - Page 16 FIREGEAR LIMITED WARRANTY - 2022 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
- Page 17 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
- Page 18 Product to be returned should; be packed so as not to incur damages during transportation. Firegear is not responsible for damages on returned items. RMA is valid for thirty (30) days from the date issued. The RMA must be clearly marked on the outside of the package.
- Page 19 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard St.
- Page 20 Optional Cutout Template for TMS Face Plate This fire pit instruction provides an option to mount the TMSI face plate to concrete board. Use the template above to complete the installation. The TMSI face plate can be mounted vertically or horizontally. Our suggestion is to attach the face plate in a horizontal position with the gas valve on the left side.
- Page 21 NOTES: TPSI Round & Square Flat Disc Burning Spur Fire Pits REV. A Page 21...
- Page 22 Having problems getting the fire pit to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
