NG Models
FPB-25SFBSAWS-N
FPB-26DBSAWS-N
FPB-29DBSAWS-N
FPB-29RBSAWS-N
FPB-30SFBSAWS-N
FPB-32SFBSAWS-N
FPB-33RBSAWS-N
FPB-34DBSAWS-N
FPB-40SFBSAWS-N
FPB-44DBSAWS-N

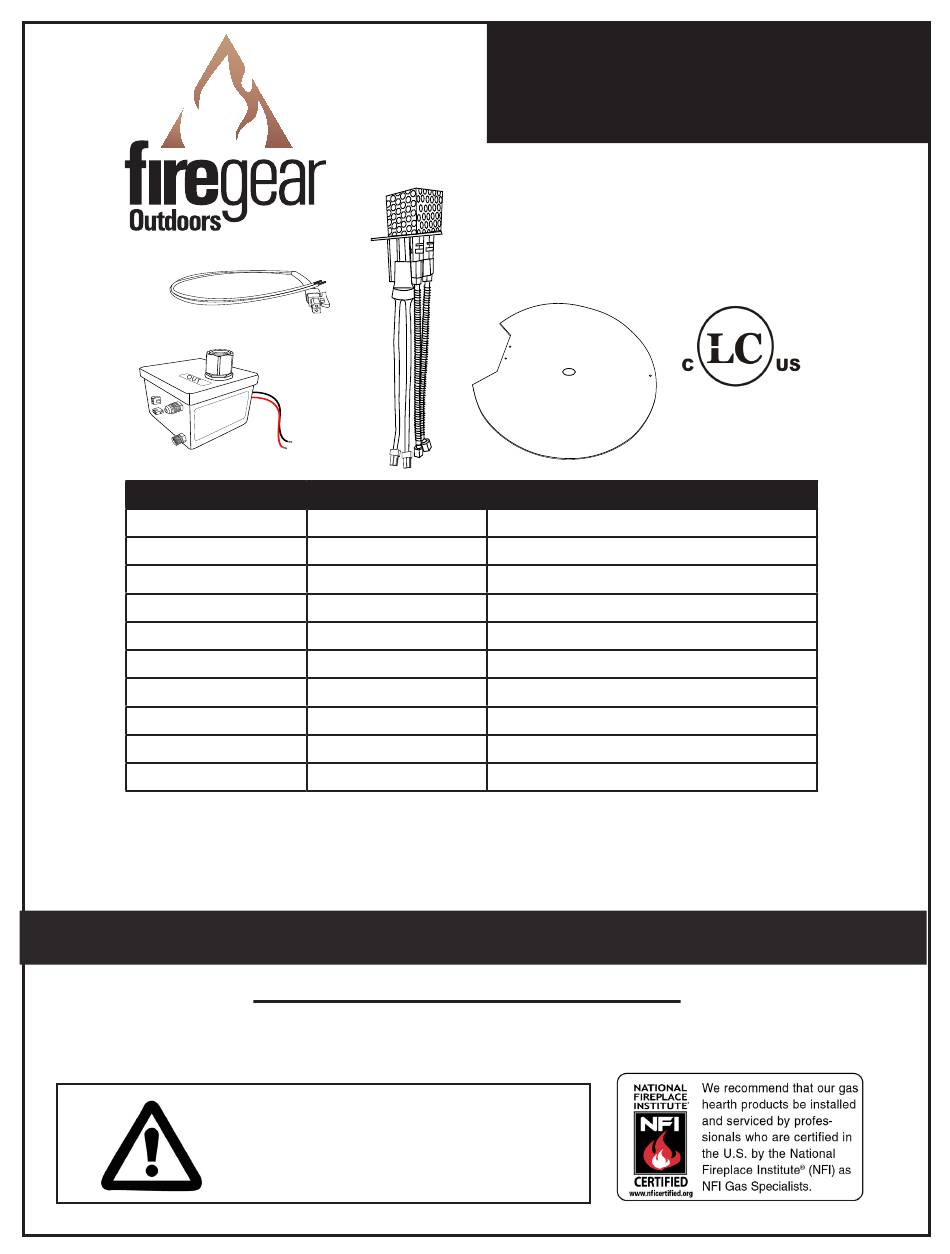

All Weather Electronic Ignition System
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This system requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation will void the warranty.
Warning: For Outdoor Use Only
LP Models
FPB-25SFBSAWS-P
FPB-26DBSAWS-P
FPB-29DBSAWS-P
FPB-29RBSAWS-P
FPB-30SFBSAWS-P
FPB-32SFBSAWS-P
FPB-33RBSAWS-P
FPB-34DBSAWS-P
FPB-40SFBSAWS-P
FPB-44DBSAWS-P
INSTALLATION PRECAUTION:
PN#90070
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
Certified by Lab Test Certification for USA and
Canada. Meets: ANSI Z21.972014, CSA C22.2 No.
3-M1998 (R2014).
Description
25" Round Pan with 22" Spur Burner
26" Round Flat Disc with 16" Spur Burner
29" Round Disc with 22" Spur Burner
29" Round Pan with 22" Spur Burner
30" Square Flat Disc with 22" Spur Burner
32" Square Flat Disc with 22" Spur Burner
33" Round Pan with 31" Spur Burner
34" Round Flat Disc with 31" Spur Burner
40" Square Flat Disc with 36" Spur Burner
44" Round Flat Disc with 36" Spur Burner
Advertisement
Table of Contents
Related Manuals for Firegear FPB-32SFBSAWS-N
Summary of Contents for Firegear FPB-32SFBSAWS-N
- Page 1 29” Round Disc with 22” Spur Burner FPB-29RBSAWS-N FPB-29RBSAWS-P 29” Round Pan with 22” Spur Burner FPB-30SFBSAWS-N FPB-30SFBSAWS-P 30” Square Flat Disc with 22” Spur Burner FPB-32SFBSAWS-N FPB-32SFBSAWS-P 32” Square Flat Disc with 22” Spur Burner FPB-33RBSAWS-N FPB-33RBSAWS-P 33” Round Pan with 31” Spur Burner FPB-34DBSAWS-N FPB-34DBSAWS-P 34”...
- Page 2 State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. (For more information go to: www.p65Warnings.ca.gov.) Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 2...
-
Page 3: Table Of Contents
This drying out period should be no less than 30 minutes. Continue monitoring the flame from distance to ensure that all popping has ceased before fully enjoying the fire. Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 3... -
Page 4: Specifications
25/64 250,000 (73.26kW) FPB-40SFBSAWS-P FPB-44DBSAWS-N 25/64 250,000 (73.26kW) FPB-44DBSAWS-P Table 2 Btu Specifications for Burner Spur by Firegear Outdoors Pressure Min. Inlet 3.5” WC (⅛ PSI) (0.87kPa) 8.0” WC (⅓ PSI) (1.99kPa) Max. Inlet 14.0” WC (½ PSI) (3.48kPa) 14.0” WC (½ PSI) (3.48kPa) Normal Inlet 7.0”... -

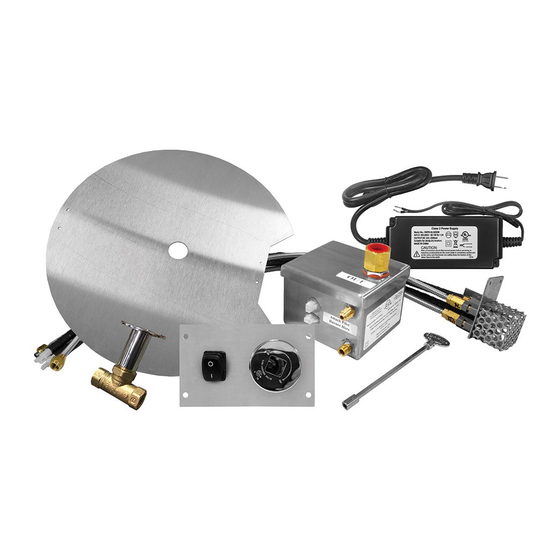

Page 5: Carton Contents - Single Fire Feature
(2) Wire Nuts (1) ½”NPT x ½” Flare Hardware Bag ON/OFF Control Options Model: FG-TIMER Model: FG-WS-OD (wall switch) Additional Safety Precaution Options Model: FG-EMER (emergency stop) Hardware Bag Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 5... -
Page 6: Preparing A Non Combustible Structure
Firegear burner. NOTE: Depending on venting locations, do not place fire pit directly on grass, dirt, or rocks that could prevent proper ventilation. Ensure proper water drainage is also incorporated into the fire feature enclosure. -
Page 7: Gas Pipe Sizing Chart
This chart is for reference only, we recommend you consult with a Licensed Plumber/Gas Fitter or NFPA54 (National Fuel Gas Code - current edition) for more details. Table 4 Gas Pipe Sizing Chart Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 7... -
Page 8: Pre-Installation Check List For Single Installation
Natural gas. To convert to Propane (LP) gas, the secondary pilot orifice must be changed. Power Supply - Firegear Outdoors offers two power supplies for use with the fire features. Each power Manual Shut-off/Key Valve - Is there a manual shut-off or... -
Page 9: Power Supply Location For Single Installation
Fig. 9a Example of single fire feature install within 5 feet of a pool or spa. Note: Reguires FG-PS-30V320 power supply (purchased seperately). Do not use the GOE-30VDC. FG-PS-30V320 power supply can be installed up to a maximum of 500-feet away from fire pit. Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 9... - Page 10 Note: Retain the four screws to install the new AWS ignition assembly later in this process. 2-Tabs Fig. 8 Removing cover plate. Fig. 6 Shows AWS-PLATE in flat position. Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 10...
-
Page 11: Burner Pan Preparation
Secure the burner against the pan with a nut and washer then install the orifice and shown in Fig. 12. Firegear Spur burner and orifice shown. Note: The AWS valve is set up for ½” fittings. If your burner is ¾”... -
Page 12: Installing Valve Kit To Burner Pan
(U1-8D-S) to inlet side of valve Fig. 14 Removing the plug from the Outlet end of the valve Fig. 16 Installing fitting into the inlet side of gas valve Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 12... -
Page 13: Installing Key Valve
Wall Material Primary Gas Supply Fig. 20 Key valve components Fig. 18 Shows three 2-PIN connectors installed into valve box and the power supply wires attached to valve box. Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 13... -
Page 14: Installing Media
24 on page 15. Note: There is an extra red jumper wire provided to extend either red wire of the 1420-A remote control receiver. It is not required to use this wire. It depends on each application. Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 14... -
Page 15: Wiring Diagram For Single Installation
GFI Box LEARN Adapter Red Sleeve Antenna Fig. 23 Wire diagram of AWS system with 1420-A remote control receiver Fig. 24 Shows typical installation of fire pit using AWS system Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 15... -
Page 16: Operating- Lighting Instructions
1. Turn the fire feature OFF by pressing the OFF button on the remote control (or switch/timer if applicable). 2. If you are no longer burning the fire pit until another time, we recommend turning the key valve to OFF position. Firegear Outdoors All Weather Ignition System (AWS) REV. C... -
Page 17: Replacements Parts
AWS REPLACEMENT PARTS GOE-30DCV Items are not to scale Weatherproof Cover/Lid Junction Box Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 17... -
Page 18: Replacement Parts List
8-18 x ½” Hex Head Self Tapping Stainless Screw (not shown) 31802 ½” Flare x to ½” MIP (no shown) U1-8D-S Valve Box Reference 2-pin Igniter Connector 2-pin Thermopile Connector Flared Pilot Connection Compression Pilot Connection Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 18... -
Page 19: Troubleshooting
Use a multi-meter to check resistance. No resistance or resistance greater than 8 ohms indicates a defective igniter. Page 27 valve reference shows the igniter and thermopile 2-pin connections for testing. Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 19... - Page 20 Thermopile is not defective the only thing left is a Defective Controller inside the valve box. If you have a Defective Controller the only way to fix it is to replace it. Firegear Outdoors All Weather Ignition System (AWS) REV. C...
- Page 21 Often this will result in a small flame that continues to burn on the Main Burner after the feature has been turned OFF. Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 21...
-
Page 22: Optional Accessories
FG-FR-30SSK - 30” stainless burner FG-FR-36SSK - 36” stainless burner FG-FR-48SSK - 48” stainless burner NOTE: See the Firegear Outdoors catalogue for a variety of fittings and flex connectors also available. Firegear Outdoors All Weather Ignition System (AWS) REV. C... - Page 23 Firegear Outdoors 17322 Gothard St Huntington Beach, CA 92647 Web Site: www.firegearoutdoors.com Manual changes often occur, ensure to check the Firegear Outdoor website for any recent updates and warranty information. Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 23...
-
Page 24: Warranty
FIREGEAR LIMITED WARRANTY - 2020 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –... - Page 25 • LIFETIME WARRANTY - CONSTRUCTION AND MANUFACTURER DEFECTS • LIFETIME WARRANTY - STAINLESS STEEL COMPONENTS (LIDS, STAINLESS STEEL COVERS) • ONE (1) YEAR WARRANTY – ESTOP1-OH, ESTOP2-5H WINDSHIELDS, HOSES AND REGULATORS Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 25...
- Page 26 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
- Page 27 Firegear Outdoors 17322 Gothard Street, Huntington Beach, CA 92647 www.firegearoutdoors.com Phone: 800-966-8126 Email: order@firegearoutdoors.com Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 27...
- Page 28 What are the symptoms? Please be prepared to explain. Be prepared to send photos to us when on the phone. 10. Found missing or damaged parts? Let us know ASAP or send photos. Fire Pits FPSS 3-30-16 Firegear Outdoors All Weather Ignition System (AWS) REV. C Page 28...
