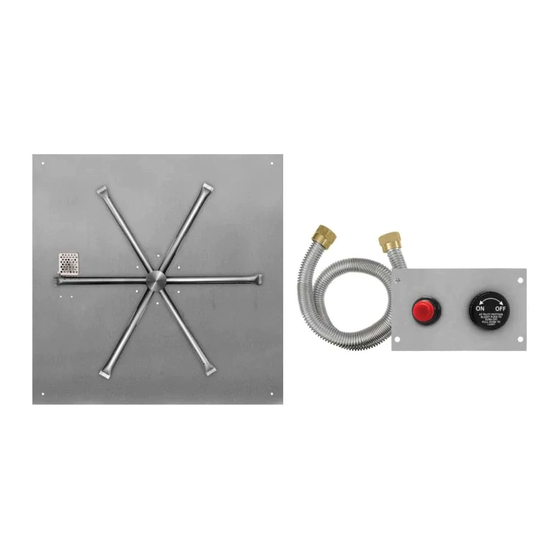

Outdoor Round and Square Flat
Installation and Operating Instructions
IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE THIS APPLIANCE
This fire pit requires a minimum 18-square inches (per side) of cross ventilation.
Failure to provide proper ventilation can void the warranty.
Warning: For Outdoor Use Only
MODELS
Description
25" Square Flat Disc (TMSI)
25" Square Flat Disc (TFS)
26" Round Flat Disc (TMSI)
29" Round Flat Disc (TMSI)
29" Round Flat Disc (TFS)
30" Square Flat Disc (TMSI)
30" Square Flat Disc (TFS)
34" Round Flat Disc (TMSI)
34" Round Flat Disc (TFS)
34" Square Flat Disc (TMSI)
34" Square Flat Disc (TFS)
Fire Pit Discs
INSTALLATION PRECAUTION:
Manual # 90001
DO NOT DISCARD. THIS MANUAL
HAS IMPORTANT OPERATING AND
MAINTENANCE INSTRUCTIONS.
LEAVE WITH THE HOMEOWNER.
MODEL:
SERIAL #:
#20-025
FPB-25DBSTMSI-P
FPB-25SFBSTFS-P
FPB-26DBSTMSI-P
FPB-29DBSTMSI-P
FPB-29DBSTFS-P
FPB-30SFBSTMSI-P
FPB-30SFBSTFS-P
FPB-34DBSTMSI-P
FPB-34DBSTFS-P
FPB-34SFBSTMSI-P
FPB-34SFBSTFS-P
Propane
REV. B Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPB-25SFBSTMSI-N and is the answer not in the manual?

Questions and answers

Related Manuals for Firegear FPB-25SFBSTMSI-N

Summary of Contents for Firegear FPB-25SFBSTMSI-N

  • Page 1 HAS IMPORTANT OPERATING AND MAINTENANCE INSTRUCTIONS. LEAVE WITH THE HOMEOWNER. MODEL: SERIAL #: #20-025 MODELS Natural Gas Description Propane FPB-25SFBSTMSI-N FPB-25DBSTMSI-P 25” Square Flat Disc (TMSI) FPB-25SFBSTFS-N FPB-25SFBSTFS-P 25” Square Flat Disc (TFS) FPB-26DBSTMSI-N FPB-26DBSTMSI-P 26” Round Flat Disc (TMSI) FPB-29DBSTMSI-N FPB-29DBSTMSI-P 29”...
  • Page 2 CARBON MONOXIDE HAZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. DANGER WARNING FIRE OR EXPLOSION HAZARD...

  • Page 3: Table Of Contents

    CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm.

  • Page 4: Specifications

    Model: Natural Gas (NG) Propane Gas (LP) Disc Min.Install Ground Side Combustible Combustible Depth Diameter Opening Level Wall Ceiling Floor 1/16” FPB-25SFBSTMSI-N FPB-25SFBSTMSI-P 25” 24” 18” 19” 69” 18” 1/16” FPB-25SFBSTFS-N FPB-25SFBSTFS-N 25” 24” 18” 19” 69” 18” 1/16” FPB-26DBSTMSI-N FPB-26DBSTMSI-P 26”...

  • Page 5: Btu Specifications

    NOTICE Firegear Outdoors fire pits are constructed and tested to follow the rigid ANSI standards for gas appliances and manufactured safely providing dependable and certified products. If these fire pits are not installed according to the installation manual (i.e.

  • Page 6: Gas Pipe Sizing Chart

    GAS PIPE SIZING CHART REFERENCE GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640...

  • Page 7: Preparation For Non-Combustible Structure

    ½” psig (3.5kPa) Examples of Cross Ventilation VENTILATION FOR NON-COMBUSTIBLE ENCLOSURE 2- Firegear 6 x12 vents Fire pits are subjected to many outdoor elements such as rain, snow, wind, heat or cold. A minimum of 18 square inches of...

  • Page 8: Installation Into An Approved Enclosure

    INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS 1. Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath area should be non-combustible or a flat level combustible surface according to the clearances specified in this manual.. 2.

  • Page 9: Section A Thermocouple Manual Safety (Tmsi) Installation

    Section A Thermocouple Manual Safety (TMSI) Installation Flat disc’s are typically used with landscape blocks. The illustrations below show examples of possible installations. Figs. 4 and 5 show the use of the flex frame system which provides the ability to easily remove the disc if necessary. Fig.
  • Page 10 INSTALLING GAS VALVE Piezo Ground Tab The gas valve is secured into the mounting plate with a nut. Fig. 7 shows an example of a typical installation. PIEZO48WH Illustration shows side view of valve and Piezo ignitor. PIEZO23WH Bottom of Burner Pan Illustration above shows ground tab PIEZO48WH connection underneath the burner pan.
  • Page 11 IGNITOR ALIGNMENT 1/8” Gap at Ignitor Probes It is to important check that the ignitor probes are properly aligned over top of the burner port holes and did not move during shipping. Use the Fig. 9 as a guide. Before lighting remove the screen cover of the ignition hood to burner and ensure the thermocouple is directly ⅛”...

  • Page 12: Operation & Lighting

    OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water.

  • Page 13: Tmsi Troubleshooting/Maintenance

    FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4.

  • Page 14: Expanded Tmsi Model View

    Expanded View of Thermocouple Manual Safety (TMSI) Fire Pit Ignition Hood Spur Burner 7/8” Washer Ground Brass Nut OASNG# Note: Use joint compound or (Burner Ori ce) Te on tape resistant to all gasses on all male NPT U3-8D-S (Fitting) threads;...

  • Page 15: Section B Thermocouple Flame Sense (Tfs) Installation

    Section B Thermocouple Flame Sense (TFS) Installation Flat discs are typically used with landscape blocks. The illustrations below show examples of possible installations. NOTE: Gas valve, flexible gas lines and TFS components are supplied. Gas shut-off is not supplied. Battery pack can be installed within the 12-foot wire length. If exposed to the elements a weather proof box is recommended.
  • Page 16 INSTALLING BATTERY PACK INTO WEATHERPROOF BOX After the weatherproof box location has been established and installed, run the black 4-PIN connector wire along with the red and black wires from the valve box into the weatherproof box. Connect red to red and black to black wires from the valve box to the wires of the battery pack.
  • Page 17 Additional transmitters can be learned to this electronic module; up to a total of three transmitters are available. Contact Firegear to discuss additional transmitter options or see the accessory page of this instruction manual. Learning the new transmitters will require pressing the learn button on the module.
  • Page 18 IGNITOR ALIGNMENT 1/8” Gap at Ignitor Probes It is to important check that the ignitor probes are properly aligned over top of the burner port holes and did not move during shipping. Use the Fig. 21 as a guide. Before lighting, remove the screen cover of the ignition hood to burner and ensure the spark probes are directly over top of a burner port ⅛”...

  • Page 19: Operation & Lighting

    OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water.

  • Page 20: Tfs Troubleshooting/Maintenance

    TROUBLE SHOOTING FOR TFS MODELS FAULT CODES TROUBLE SHOOTING The VCS-5000MODTC control module has built-in error detection for several common operating fault conditions. When the control module detects an error, it will emit a series of beeps. The beeping pattern will help to determine the cause of the operating fault Ignition Safety (Protection for ignition system): Error Code: One beep every one second.
  • Page 21 Thermal Safety (Overheat Protection): Error Code: 4 Beeps every 2 seconds. Description of Fault: Warn users that the modules internal temperature exceeds 170°F. How to Clear: Module’s internal temperature must cool to below 160°F and then press ON button. What to Check: 1.
  • Page 22 ADDITIONAL TROUBLE SHOOTING Symptom Remedy Fire Pit 1. Bleed gas line. Won’t Light 2. Ensure all gas lines are turned ON. 3. Ensure there is not too much media over top the burner, it can inhibit the gas flow. Too little or no media can also contribute to non-lighting. 4.

  • Page 23: Expanded Tfs Model View

    Expanded View of Thermocouple Flame Sense (TFS) Fire Pits Ignition Hood Spur Burner Orange ⁄ ” Washer Ignition Wire Brass Nut Flat Disc OAS-NG# (Burner Ori ce) Thermocouple & ½” Coupler Ground Wires Battery Pack Black Wire Valve Box: (Gas valve,control module and wires inside) T-200-9898-46 (Flex Conector)

  • Page 24: Replacement Parts

    ROUND FLAT DISC REPLACEMENT PARTS PILOT ADJ PILOT MAIN Drawings are not to scale POWER Requires 4-AA 1.5V alkaline batteries Slide Switch to Latching Solenoid Round & Square Flat Disc REV. B Page 24...

  • Page 25: Replacement Parts List

    ROUND FLAT DISC REPLACEMENT PARTS LIST Item Qty. Part Number Description TMSI 26-inch Round Flat Stainless Disc PAN-SS26D 29-inch Round Flat Stainless Disc PAN-SS29D 34-inch Round Flat Stainless Disc PAN-SS34D 25-inch Square Flat Stainless Disc PAN-SS25SF 30-inch Square Flat Stainless Disc PAN-SS30SF 34-inch Square Flat Stainless Disc PAN-SS34SF...
  • Page 26 (800) 966-8126 Firegear Outdoors 17322 Gothard St Huntington Beach, CA 92647 Web Site: www.firegearoutdoors.com Manual changes often occur, ensure to check the Firegear Outdoor website for any recent updates and warranty information. Round & Square Flat Disc REV. B Page 26...

  • Page 27: Optional Accessories

    OPTIONAL ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. Media Media Media Lava Stones: 1” to 2” size (50 lbs) Lava Boulders: 6” to 12” size (30lbs) Lava Rock: 1”...
  • Page 28 FIREGEAR LIMITED WARRANTY - 2020 Firegear Outdoors hereby warrants to the end user that products will be free from material and workmanship defects that prevent safe and correct operation of the product. The warranty commences from date of sale to the end user for the following period: CONSUMER RESIDENTIAL APPLICATIONS –...
  • Page 29 COMMERCIAL APPLICATIONS – MANUFACTURED AFTER 12/02/2019 BURNER SYSTEMS, BURNERS, COMPONENTS AND ACCESSORIES • TWO (2) YEAR WARRANTY ON CONSTRUCTION AND MANUFACTURER DEFECTS • TWO (2) YEAR WARRANTY - STAINLESS STEEL BURNERS AND PANS • TWO (2) YEAR WARRANTY - BRASS BURNERS •...
  • Page 30 The manufacturer may request defective products returned with an RMA (Return Merchandise Authorization) issued by Firegear Outdoors for specific products, which is considered to be the nature of the defect and or warranty claim. Product to be returned should; be packed so as not to incur damages during transportation.
  • Page 31 We do not authorize any person or company to assume for it any other obligation or liability in connection with the sale, installation, use, removal, return, or replacement of its equipment, and or such representation are binding. Firegear Outdoors 17322 Gothard Street, Huntington Beach, CA 92647 www.firegearoutdoors.com Phone: 800-966-8126 Email: order@firegearoutdoors.com...
  • Page 32 Optional Cutout Template for TMSI Face Plate This fire pit instruction provides an option to mount the TMSI face plate to concrete board. Use the template above to complete the installation. The TMSI face plate can be mounted vertically or horizontally. Our suggestion is to attach the face plate in a horizontal position with the gas valve on the left side.
  • Page 33 The TMS valve bracket can be oriented in different positions to accommodate different installations. Once the bracket and knob are installed, the knob may not be oriented in a convenient position to easily read. If this is the case, we have provided a label that can be placed over top of the existing knob for the user to easily know which way to turn the control knob to light a fire pit.
  • Page 34 Having problems getting the fireplace to operate? Don’t leave the job site! We want to help! Call 800.966.8126 for Technical Support between the hours of 8:00AM to 5:00PM PST. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____ What size is gas line? _____...
