cPCI-RY02
User Manual
Version 1.0
Windows, Windows2000, Windows NT and Windows XP are trademarks of Microsoft. We acknowledge that the trademarks or service names of all
other organizations mentioned in this document as their own property.
Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ
system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is
granted by implication or otherwise under any patent or copyrights of DAQ system.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced
without the prior written consent.
Copyrights  2005 DAQ system, All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the cPCI-RY02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAQ system cPCI-RY02

Summary of Contents for DAQ system cPCI-RY02

  • Page 1 Information furnished by DAQ system is believed to be accurate and reliable. However, no responsibility is assumed by DAQ system for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ system.

  • Page 2: Table Of Contents

    User’s Manual Contents 1. Product Features -------------------------------------------------------------------- 2. Board Installation 2-1 cPCI-RY02 Board Connection --------------------------------------------------------------- 4 3. Product Description Board Layout ----------------------------------------------------------------------- 5 Function Description 3-2-1 Relay Board MDR 100Pin (4(Com)x50(OUT)) ---------------------------------- 3-2-2 MDR 100 Pin No. --------------------------------------------------------- 3-2-3 4x50 Matrix Structure (comX vs Relay Number)

  • Page 3: Product Features

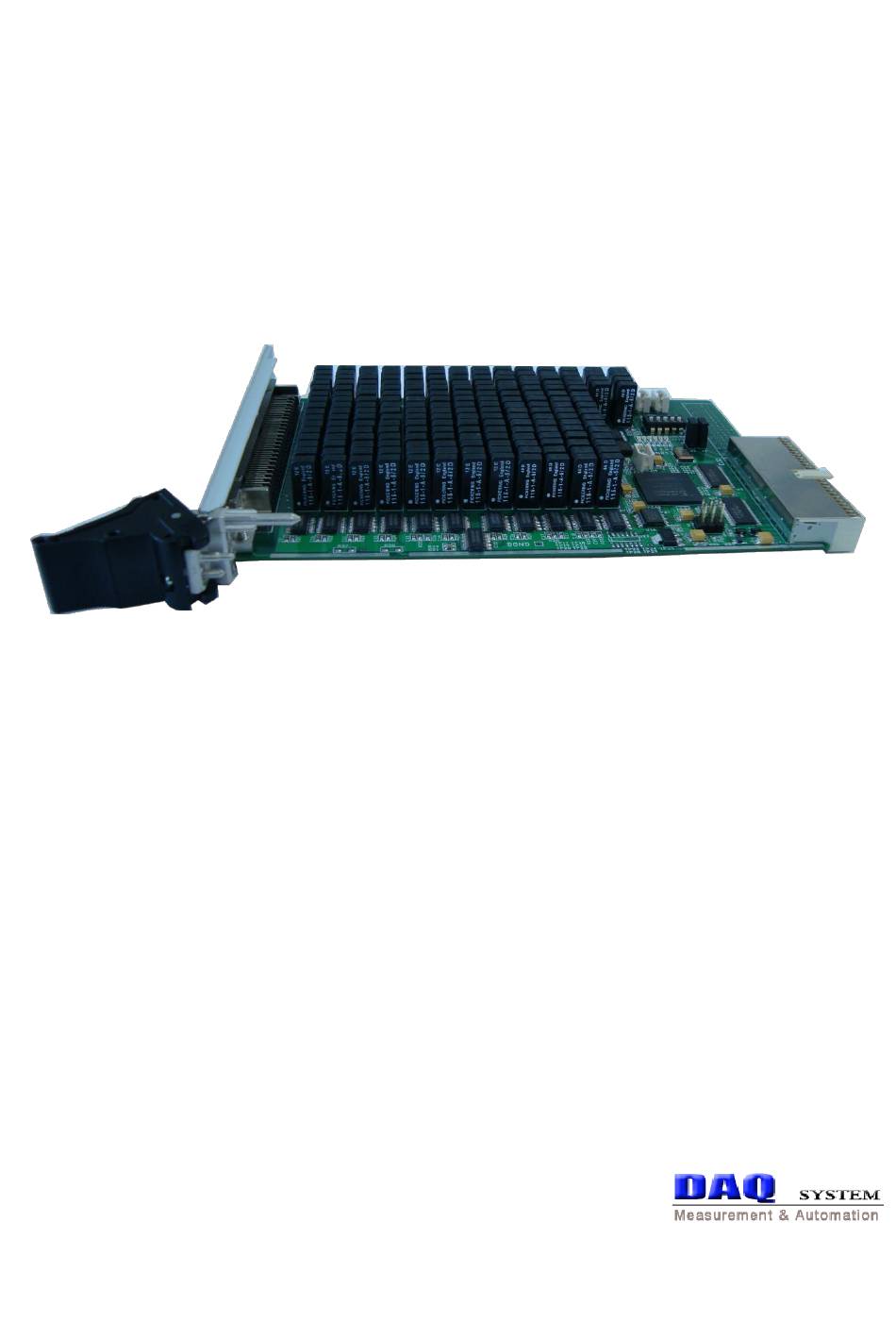

    User’s Manual 1. Product Features The cPCI-RY02 product is used in conjunction with the Relay Control System, and can control 4x50 (total 200) relays. [Figure 1-1] cPCI-RY02 board is shown as an industrially stable product connected to the backplane.
  • Page 4 User’s Manual [Table 2. Basic Specification] Specification General 256Mb SDRAM x 2 16Mb Flash Interface +3.3V Single Power operation Max 300mA 이내 Functions PCI specification v2.2 compliant Software Supported OS Windows 2000 SP4 이상/ Windows XP SP1 이상 Interface with Application through client DLL...

  • Page 5: Board Installation

    Before installation, check that the contents of the package are intact. 2-1 cPCI-RY02 Board Connection Back Plane. -1 CPU Board -Max. 15 Relay Board cPCI-RY02 Board Board [Figure 2-1. Relay System]  The cPCI-RY02 board is connected to the backplane and used through the control board.

  • Page 6: Product Description

    User’s Manual 3. Product Description Each function of the board will be briefly described. For detailed function information, please refer to the parts specification. 3.1 cPCI-RY02 Board comA/comB Relay MDR 100pin switch cPCI FPGA connector local bus [Figure 3-1. RELAY Board] FPGA : Local Bus interface for Data Communication, Relay control.

  • Page 7: Function Description

    User’s Manual 3-2 Function Description 3-2-1 Relay Board MDR 100pin connection (4(Com) x 50(OUT)) OUT0 OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8 OUT9 OUT10 OUT11 OUT12 OUT13 OUT14 OUT15 COMA COMC COMB COMD OUT16 OUT17 OUT18 OUT19 OUT20...

  • Page 8: Mdr 100Pin No

    User’s Manual 3-2-2 MDR 100Pin No. 3-2-3 4x50 Matrix Structure (ComX Vs Relay number) [Table 3. OUT port Vs Relay Number] OUT No. MDR Pin No. ComA ComB ComC ComD OUT0 OUT1 OUT2 Ry10 Ry11 Ry12 OUT3 Ry13 Ry14...
  • Page 9 User’s Manual OUT19 Ry77 Ry78 Ry79 Ry80 OUT20 Ry81 Ry82 Ry83 Ry84 OUT21 Ry85 Ry86 Ry87 Ry88 OUT22 Ry89 Ry90 Ry91 Ry92 OUT23 Ry93 Ry94 Ry95 Ry96 OUT24 Ry97 Ry98 Ry99 Ry100 OUT25 Ry101 Ry102 Ry103 Ry104 OUT26 Ry105...

  • Page 10: Relay Board Address Switch Setup

    User’s Manual 3-2-4 Relay Board Address Switch Setup A maximum of 15 relay boards can be installed in the Relay System, and each board number can be set as “SW1”. *The 3rd switch of SW1 is for inspection purposes and should not be used by general users.

  • Page 11: Relay Board Common Line Connector

    User’s Manual 3-2-5 Relay Board Common Line Connector 5267 5267 COMA COMC COMB COMD 미사용 미사용 COMA and COMB can be connected in common with the RJ45 connector on the CPU board.

  • Page 12: Appendix

    ⑥ Products whose serial number has been changed or removed intentionally ⑦ If DAQ SYSTEM determines that it is the customer's fault for other reasons (5) Shipping costs for returning the repaired product to DAQ SYSTEM are the responsibility of the customer.

  • Page 13: Reference

    User’s Manual References 1. PCI System Architecture -- MindShare Inc. 2. PCI Local Bus Specification -- PCI-SIG 3. AN201 How to build application using API -- DAQ system...
  • Page 14 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
