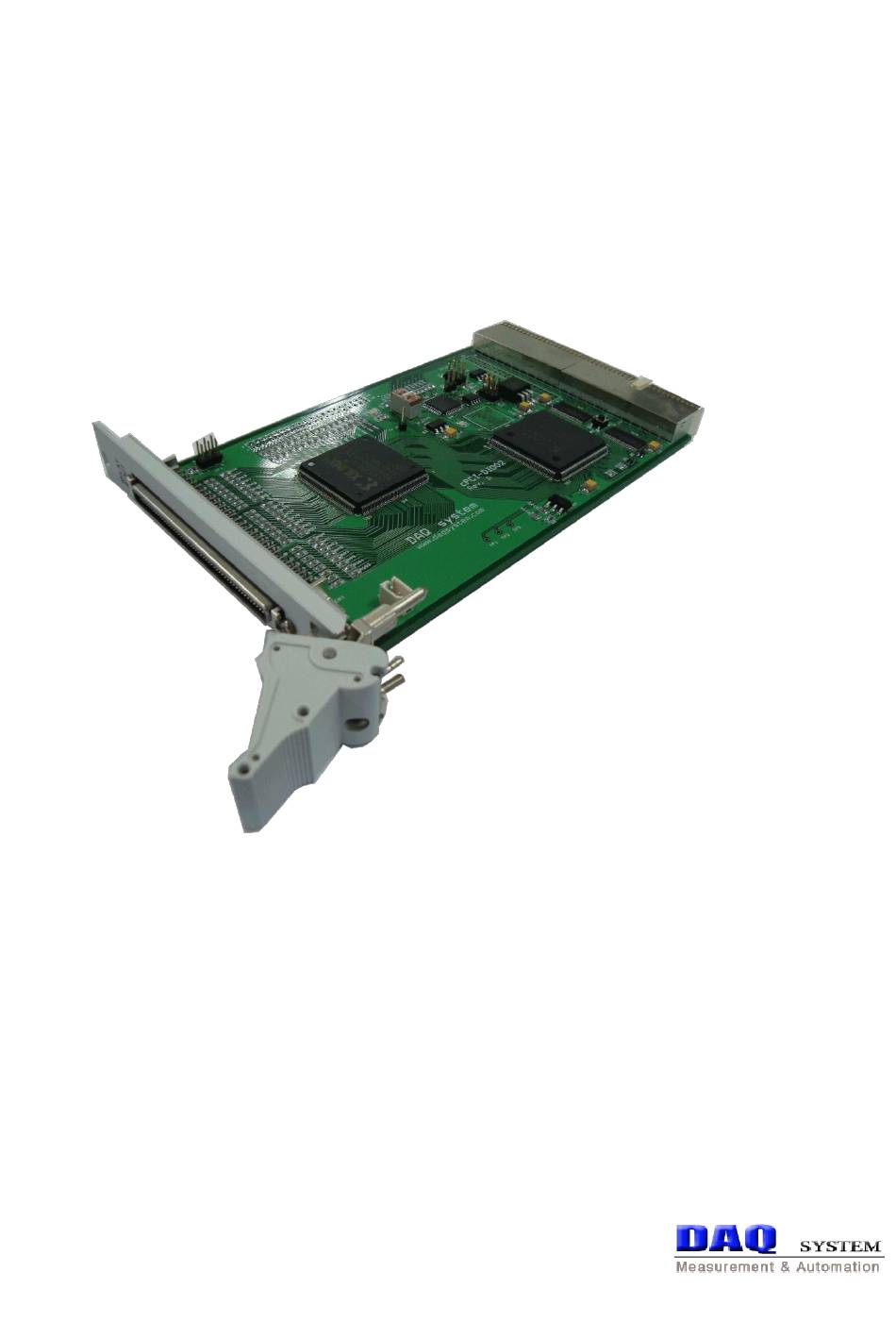

cPCI-DIO02
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Related Manuals for DAQ system cPCI-DIO02
Summary of Contents for DAQ system cPCI-DIO02
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
User‟s Manual Contents 1. Introduction 1-1 Product Features ------------------------------------------------------------------------ 2. cPCI-DIO02 Block Diagram -------------------------------------------------------- 3. cPCI-DIO02 Board Description 3-1 Board Outline ------------------------------------------------------------------------ Device Features ---------------------------------------------------------------------- 4. Connector Pin Map Front Panel - (CN1) ---------------------------------------------------------------- 4-2 Box Header (J1) ----------------------------------------------------------------------... - Page 3 User‟s Manual 6. Sample Program --------------------------------------------------------------------- Appendix A-1 Repair Regulations ----------------------------------------------------------------------- Reference -----------------------------------------------------------------------...
-
Page 4: Introduction
User‟s Manual 1. Introduction cPCI-DIO02 is a 128-bit digital input/output board that is perfectly compatible with industrial PCs and uses a 33bits, 33MHz PCI interface. All control of this board is designed with FPGA (Field Programmable Gate Array), so function enhancement or modification is free, and it can be easily upgraded according to the user's needs. - Page 5 User‟s Manual DAQ System Digital I/O Products Product No. In/Out Timer/Counter Specification cPCI-DIO6400 32/32 Isolated Input/Output 128 channels Software cPCI-DIO02 Read/Write in 8 Groups in 16-bit Units Configurable PCI(e)-DIO6400 32/32 Isolated Input/Output PCI-DIO6401 64/None Isolated Input PCI-DIO6402 None/64...
-
Page 6: Cpci-Dio02 Block Diagram
User‟s Manual 2. cPCI-DIO02 Block Diagram In the case of cPCI-DIO02, as shown in [Figure 2-1], it has 128 IO ports and is configured to interface with the outside. (Input/output can be selected and used in the program) It is possible to select Read / Write in 8 groups of 16 bits. -
Page 7: Cpci-Dio02 Board Description
Each important board function is briefly described. For detailed function information, please refer to the parts specification. 3-1 Board Layout [Figure 3-1. cPCI-DIO02 Layout] There are 3 LEDs on the board, and the description of each is as follows. LED1 : Lights up when U5 FPGA Chip is selected. (for testing) LED2: (for testing) LED3 : Lights up when the board finishes configuration and ready for operation. -
Page 8: Device Features
User‟s Manual 3-2 Device Features (1) MDR 100 pin connector: CN1 External interface (I/O 0~95) (2) Box Header 2x20 : J1 External interface (I/O 96~127) (3) EPLD: U1 128bit Digital I/O Expansion (4) FPGA : U5 All functions of the board are controlled through this FPGA Logic. -
Page 9: Connector Pin Map
LD_92 LD_93 LD_94 LD_95 MDR 100Pin [Figure 4-1. cPCI-DIO02 Front Panel – MDR 100pin] The front panel of cPCI-DIO02 has MDR 100PIN connector, and there are a total of 96 I/O ports. The Pin Map is like the picture above. -
Page 10: Box Header (J1)
+3.3V Box header 2x20 2.54mm [Figure 4-2. cPCI-DIO02 „J2‟ Box-header] 32 I/O can be used as „J1‟ Box header connector of cPCI-DIO02. The PIN Map is like the picture above. 4-3 J3 Connector (2Pin Header, 2.54mm) This is a 3.3V external DC power connector. Power used when installing CPLD or FPGA and is not normally used. -
Page 11: Jp4 Connector
User‟s Manual 4-6 JP4 Connector JP4 is a JTAG (Joint Test Action Group) connector and is used to update the U8 CPLD (XC9536) program of the board. Do not use when operating the board normally. In a system that requires many I/O ports, if several DIO02 series boards are installed in one system, each board address must be used separately. -
Page 12: I/O Register Map
User‟s Manual 4-8 I/O Register Map VENDOR ID : 0x0303 DEVICE ID : 0x7040 <IO MAP> IO-offset NAME BIT 할당 DESC 0x00 Local Data #0 LD00~LD15 Data 0x04 Local Data #1 LD16~LD31 Data 0x08 Local Data #2 LD32~LD47 Data... -
Page 13: Installation
④ In case of multi-board, repeat from step 2. ⑤ When the power is off, plug the cPCI-DIO02 board into the PCI SLOT and apply power, LED3 turns on, and LEDs 1 and 2 repeat On/Off. -
Page 14: Driver Installation
The board environment must be Windows 2000 SP4 or higher and Windows XP SP1 or higher. First, turn off the PC's power, plug the cPCI-DIO02 board into the Compact PCI Slot, and turn on the PC's power. When the “Start New Hardware Wizard” window opens as shown below, selects it as shown below and click the Next button. - Page 15 User‟s Manual 2. Select Driver from the enclosed CD and click the Next button. 3. Click the Next button. The driver folder contains “pci_di02.inf” and “pci_dio02.sys” files required for driver installation. Click Next to install the driver files.
- Page 16 5. When the installation is complete, check whether the driver is installed normally in the following way. 6. My Computer -> Properties -> Hardware -> Device Manager Check if multifunction adapter -> “cPCI-DIO02” is installed. If it appears as shown in the figure below, the installation has been completed normally.
- Page 17 7. If it appears as shown in the figure below, the installation has been completed normally. The above picture shows the screen where the PCI-DIO02” (The cPCI-DIO02 uses a same driver with PCI-DIO02 because of compatibility.) product is normally installed in the PC.
- Page 18 User‟s Manual 6. Sample Program In the APP folder of the CDROM provided with the board, a sample program “PCI_DIO02.exe” is provided for easy use of the board. In order to test the sample program, the driver of the board must be installed first.
- Page 19 User‟s Manual (1) „Model No‟ Button Select the motel name cPCI-DIO02. (2) „Board No‟ Button Select the selected board number (Board #0 ~ Board #3) when clicked. The board number is set to SW1 in the board and up to 4 units can be connected.
- Page 20 (3) All DAQ SYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty.
- Page 21 User‟s Manual References 1. PCI System Architecture -- MindShare Inc. 2. PCI Local Bus Specification -- PCI-SIG 3. AN201 How to build application using APIs -- DAQ system 4. AN242 PCI-DIO02 API Programming -- DAQ system...
- Page 22 User‟s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
