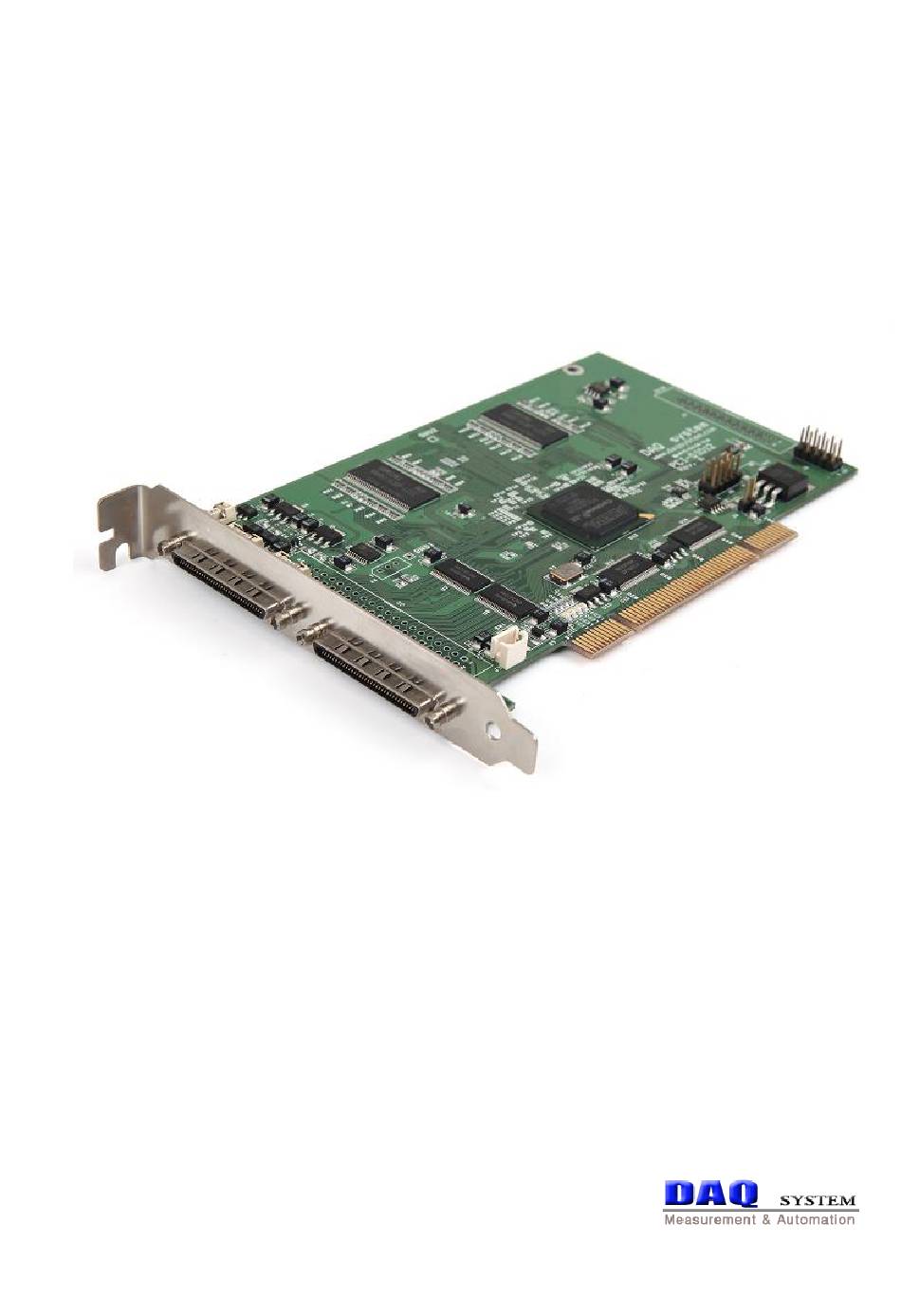

PCI-DIO12
User Manual
Version 1.2
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCI-DIO12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DAQ system PCI-DIO12

  • Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
  • Page 2: Table Of Contents

    PCI-DIO12 User‟s Manual Contents 1. Introduction 1-1 Product Features ------------------------------------------------------------------------ 1-2 Product Applications ------------------------------------------------------------------------ 2. PCI-DIO12 Block Diagram ----------------------------------------------------------- 3. PCI-DIO12 Board Description 3-1 Board Outline ------------------------------------------------------------------------ Device Features ---------------------------------------------------------------------- 4. Connector Pin Map 4-1 VHDCI69 Connector (J10/J11) -------------------------------------------------------------- J2 Connector...
  • Page 3 PCI-DIO12 User‟s Manual 6. Sample Program ------------------------------------------------------------ Appendix A-1 Repair Regulations ------------------------------------------------------------ Reference -----------------------------------------------------------------------...
  • Page 4: Introduction

    PCI-DIO12 User‟s Manual 1. Introduction PCI-DIO12 is a 32-bit digital input/output board that is perfectly compatible with industrial PCs and uses a 33bits, 33MHz PCI interface. All control of this board is designed with FPGA (Field Programmable Gate Array), so function enhancement or modification is free, and it can be easily upgraded according to the user's needs.
  • Page 5: Product Applications

    PCI-DIO12 User‟s Manual  DAQ System Digital I/O Products Product No. In/Out Timer/Counter Specification cPCI-DIO6400 32/32 Isolated Input/Output 128 channels Software cPCI-DIO02 Read/Write in 8 Groups in 16-bit Units Configurable PCI(e)-DIO6400 32/32 Isolated Input/Output PCI-DIO6401 64/None Isolated Input PCI-DIO6402 None/64...
  • Page 6: Pci-Dio12 Block Diagram

    PCI-DIO12 User‟s Manual 2. PCI-DIO12 Block Diagram PCI-DIO12 has a digital 32 channel port and 128MByte of memory and is configured to interface with the outside quickly (400MBytes/sec). All control of the PCI-DIO12 board is designed with FPGA (Field Programmable Gate Array), so function enhancement or modification is free, and it can be easily upgraded according to the user's needs.
  • Page 7: Pci-Dio12 Board Description

    PCI-DIO12 User‟s Manual 3. PCI-DIO12 Board Description Each important board function is briefly described. For detailed function information, please refer to the parts specification. 3-1 Board Layout [Figure 3-1. PCI-DIO12 Layout] There are 5 LEDs on the board, and the description of each is as follows.
  • Page 8: Device Features

    PCI-DIO12 User‟s Manual 3-2 Device Features (1) VHDCI68 connector: J10, J11 J10 --- DIO 28ch / Vio (Max 500mA) J11 --- DIO 4ch / 1trigger In /1trigger Out (2) FPGA : U12 All functions of the board are controlled through this FPGA Logic.
  • Page 9: Connector Pin Map

    PCI-DIO12 User‟s Manual 4. Connector Pin Map This section describes connectors and jumpers used in PCI-DIO12. The main connectors are the VHDCI (Very High Density Cable Interconnect) 68pin connector J10 and J11 for external digital input/output connection, and the 40pin Box Header J2 connector for checking the signal of the VHDCI connector.
  • Page 10 PCI-DIO12 User‟s Manual [Table 1. PCI-DIO12 J10 Connector] Pin No. Name Description Remark 5V DC PCI Power Power V_LCD LCD Power 2.8V Output A_OUT0 A-port Digital IO Signal 0 A_OUT1 A-port Digital IO Signal 1 A_OUT2 A-port Digital IO Signal 2...
  • Page 11: J2 Connector

    33,35,37,39,41,43,45,47,48,51,52,53,55,57,59, 60,64,67 4-2 J2 Connecter PCI-DIO12 allocated a TP pin array that can attach a 40-pin (20x2, 2.54mm pitch) header connector (JP1) on the PCB to check the signal of the J10/J11 connector. Refer to [Table 1] for signal characteristics.
  • Page 12: J3 Connector

    PCI-DIO12 User‟s Manual 4-3 J3 Connector (2Pin Header, 2.54mm) This is a 3.3V external DC power connector. This is the power used when installing the FPGA and is not normally used. 4-4 J5 Connector J5 is used when writing FPGA program on the board to U12 EPCS16 (16Mbit flash memory).
  • Page 13: Installation

    Tighten the screws between the bracket of the board and the connection part of the case. ⑤ In case of multi-board, repeat from step 3. Connect the PCI-DIO12 board in the PC to an empty PCI slot. When you turn on the power, a new hardware search window will appear.
  • Page 14: Driver Installation

    The board environment must be Windows 2000 SP4 or higher and Windows XP SP1 or higher. First, turn off the PC's power, plug the PCI-DIO12 board into the PCI Slot, and turn on the PC's power. When the “Start New Hardware Wizard” window opens as shown below, selects it as shown below and click the Next button.
  • Page 15 PCI-DIO12 User‟s Manual If new hardware is found, Wizard will ask you to install the corresponding driver. For installation of the driver, select the item “Install from a list or specific location (Advanced)” and click “Next” as in the figure.
  • Page 16 PCI-DIO12 User‟s Manual If the installation is completely finished, you can show below message window.
  • Page 17 “Device Manager” window. [My Computer -> properties -> Hardware -> Device Manager -> Multifunction Adaptors -> PCI-DIO11] The PCI-DIO12 uses a same driver with PCI-DIO11 because of If you can see the “PCI-DIO11” ( compatibility.
  • Page 18 PCI-DIO12 User‟s Manual 6. Sample Program In the APP folder of the CDROM provided with the board, a sample program “PCI_DIO11_TEST.exe” is provided for easy use of the board. In order to test the sample program, the driver of the board must be installed first.
  • Page 19 PCI-DIO12 User‟s Manual (1) „Init Board‟ Button When executing a program with the board initialization button, it should be done first. (2) „Get data‟ Button Data is loaded into the PC according to the value set in the „Type‟ box.
  • Page 20 PCI-DIO12 User‟s Manual (5) „Output Mode‟ Select of A, B, C, reserved Output mode. (6) „Data Output‟ Data Output or update (7) „C Port Test‟ Test a specific mode (C port) with special specifications. (8) „Clock Setting‟ Out clock setting with special specifications.
  • Page 21 (3) All DAQ SYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty.
  • Page 22 PCI-DIO12 User‟s Manual References 1. PCI System Architecture -- MindShare Inc. 2. PCI Local Bus Specification -- PCI-SIG 3. AN201 How to build application using APIs -- DAQ system 4. AN242 PCI-DIO12 API Programming -- DAQ system...
  • Page 23 PCI-DIO12 User‟s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
