DAQ system PCI-AIO05 User Manual

Hide thumbs Also See for PCI-AIO05:
Table of Contents

Advertisement

Quick Links

Download this manual

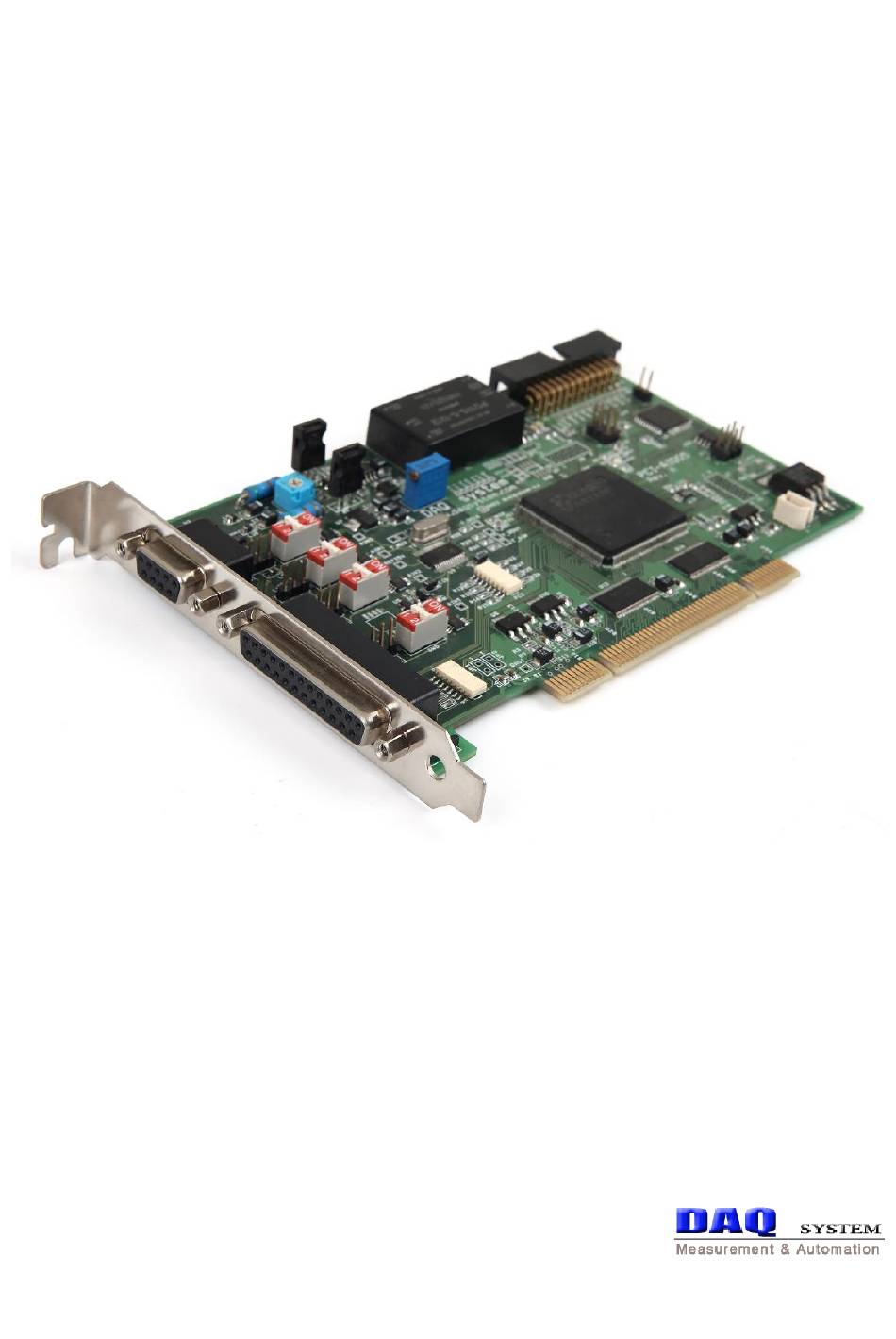

PCI-AIO05
User Manual
Version 1.1
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCI-AIO05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DAQ system PCI-AIO05

Summary of Contents for DAQ system PCI-AIO05

  • Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.

  • Page 2: Table Of Contents

    PCI-AIO05 User‟s Manual Contents 1. Introduction 1-1 Product Features ------------------------------------------------------------------------ 1-2 Product Applications ------------------------------------------------------------------------ 2. PCI-AIO05 Block Diagram ------------------------------------------------------------ 3. PCI-AIO05 Board Description 3-1 Unbalanced Input ------------------------------------------------------------------------ Balance Input ---------------------------------------------------------------------- 3-3 Connector and Switch ----------------------------------------------------------------------- 3-3-1 D-Sub 25 Connector (P2)
  • Page 3 PCI-AIO05 User‟s Manual 7. Installation 7-1 Hardware Installation 7-1-1 Product Contents --------------------------------------------------------------------- 7-1-2 Installation Process --------------------------------------------------------------------- 7-2 Driver Installation --------------------------------------------------------------------- 8. Sample Program --------------------------------------------------------------------- 8-1 System Function Description -------------------------------------------------------------- 8-2 ADC Test Function Description ------------------------------------------------------------ 8-3 ADC Graph Function Description -------------------------------------------------------------...
  • Page 4 PCI-AIO05 User‟s Manual UPDATE HISTORY 2010-11-05 Add API function GetBoardVersion() 2011-07-04 7. Add installation 8. Add sample program description...

  • Page 5: Introduction

    PCI-AIO05 User‟s Manual 1. Introduction PCI-AIO05 is an analog input, digital input/output PCI board that supports 4 channels of 16/24-bit ADC (Analog to Digital Converter) and 4 channels of digital I/O. All control of this board is designed with FPGA (Field Programmable Gate Array), so function enhancement or modification is free, and it can be easily upgraded according to the user's needs.

  • Page 6: Product Applications

    PCI-AIO05 User‟s Manual 1-2 Product Applications ♦ PCI development and evaluation ♦ Data acquisition ♦ Laboratory instrumentation ♦ Process control systems ♦ Factory automation  DAQ System Analog I/O Products Analog Input Analog Output Timer Products Sampling Resolution Channel Range(V) Resolution Channel...

  • Page 7: Pci-Aio05 Block Diagram

    PCI-AIO05 User‟s Manual 2. PCI-AIO05 Block Diagram PCI-AIO05 is a multi-function I/O PCI board that supports 4-channel 16/24-bit ADC and 4-bit DIO functions as shown in [Figure 2-1]. PCI-AIO05 INTERNAL BLOCK External PCI BUS Interface Local Bus Address Data(Mem,I/O) PCI Target...

  • Page 8: Pci-Aio05 Board Description

    PCI-AIO05 User‟s Manual 3. PCI-AIO05 Board Description Each important board function is briefly described. For detailed function information, please refer to the parts specification. 3-1 Board Layout [Figure 3-1. PCI-AIO05 Layout] There are 3 LEDs on the board, and the description of each is as follows.
  • Page 9 PCI-AIO05 User‟s Manual 3-2 Device Features (1) D-Sub 9 Pin : P1 DAC 2 channels Output Pin, Synchronous Pin (2) D-Sub 25 Pin : P2 Analog Input Pin, Pin for Trigger (3) FPGA : U14 All functions of the board are controlled through this FPGA Logic.
  • Page 10 PCI-AIO05 User‟s Manual 3-3 Connector and Switch D-SUB 9-pin and 25-pin connectors fixed to standard PCI brackets are used for Analog and Digital signal output and input, respectively. [Figure 3-2. PCI-AIO05 PCI Bracket]...

  • Page 11: D-Sub25 Connector (P2)

    AIN3- A+10V AGND EOUT3 EOUT2 EOUT1 EIN3 EIN2 EIN1 DGND [Figure 3-3. PCI-AIO05 D-sub25 Connector] [Table 1. PCI-AIO05 D-sub 25 Pin Connector] Pin No. Name Description Remark DGND Digital Ground Ground EIN2 Digital Input Channel 2 EOUT1 Digital Output Channel 1...

  • Page 12: D-Sub 9 Connector (P1)

    Load Cell Reference Power -5V Output AGND Analog Ground Ground AIN1- Analog Input Port 1, Negative Signal REF- Load Cell Reference Power -5V Output 3-3-2 D-Sub 15 Connector (P1) DGND +12VPCI AIN0- EOUT0 AIN0+ EIN0 REF- AGND REF+ [Figure 3-4. PCI-AIO05 D-sub9 Connector]...

  • Page 13: Analog Input Amplification Setup

    PCI-AIO05 User‟s Manual [Table 2. PCI-AIO05 D-sub 9 Pin Connector] Pin No. Name Description Remark REF+ Load Cell Reference Power +5V Output REF- Load Cell Reference Power -5V Output AIN0+ Analog Input Port 0, Positive Signal AIN0- Analog Input Port 0, Negative Signal...

  • Page 14: Board Address Setup(Sw6)

    PCI-AIO05 User‟s Manual 3-3-4 Board Address Setup (SW6) In a system that requires many I/O ports, if several AIO series boards are installed in one system, each board address must be used separately. At this time, each board classification uses the DIP switch (SW1) on the board, and the total number of boards that can be installed in one system is four.

  • Page 15: Analog Input Wiring

    PCI-AIO05 User‟s Manual 4. Analog Input Wiring 4-1 Unbalanced Input J1~4 Jumper Setup ADC CH0-3 + ADC CH0-3 - /AGND Sensor Sensor [Figure 4-1. Analog SE(Single Ended) Input Wiring] Analog SE connection connects the signal to the positive terminal and the ground to the negative terminal.

  • Page 16: Balance Input

    PCI-AIO05 User‟s Manual 4-2 Balanced Input J1~4 Jumper Setup ADC CH0-3 + ADC CH0-3 - AGND Sensor Sensor [Figure 4-2. Analog DI(Differential Input) Input Wiring] In analog DI connection, the input reference is the difference between two input channel pairs.

  • Page 17: Input

    PCI-AIO05 User‟s Manual 5. Digital Input/Output Features 5-1 Input +3.3V +12VPCI 4.7K EIN0 DIN0 +3.3V 4.7K EIN3 DIN3 [Figure 5-1. Digital Input] The external digital input signal (EINx) receives a logic signal isolated by the photo-transistor of the board as shown in [Figure 5-1] above.

  • Page 18: Conversion Time Setup

    PCI-AIO05 User‟s Manual 6. Conversion Time Setup A digital filter exists inside the AD converter, and the filter characteristics are displayed differently depending on the filter word (FW). With many FWs, you can have good noise characteristics and effective bits, but it takes a lot of time to get the output data. Refer to the characteristics of the following table and set the appropriate conversion time according to the use.

  • Page 19: Installation

    Tighten the screws between the bracket of the board and the connection part of the case. ⑤ In case of multi-board, repeat from step 3. Connect the PCI-AIO05 board in the PC to an empty PCI slot. When you turn on the power, a new hardware search window will appear.

  • Page 20: Driver Installation

    The board environment must be Windows 2000 SP4 or higher and Windows XP SP1 or higher. First, turn off the PC's power, plug the PCI-AIO05 board into the PCI Slot, and turn on the PC's power. When the “Start New Hardware Wizard” window opens as shown below, selects it as shown below and click the Next button.
  • Page 21 PCI-AIO05 User‟s Manual If new hardware is found, Wizard will ask you to install the corresponding driver. For installation of the driver, select the item “Install from a list or specific location (Advanced)” and click “Next” as in the figure.
  • Page 22 PCI-AIO05 User‟s Manual If the installation is completely finished, you can show below message window.
  • Page 23 “Device Manager” window. [My Computer -> properties -> Hardware -> Device Manager -> Multifunction Adaptors -> PCI-AIO05] If you can see the “PCI-AIO05” at Multifunction Adaptors, the driver installation is to have been over. (Check the red circle)

  • Page 24: Sample Program

    PCI-AIO05 User‟s Manual 8. Sample Program DAQ system provides a sample program to make the user be familiar with the board operation and to make the program development easier. You can find the sample program in the CDROM accompanying with the board. One of the execution file is “PCI_AIO.exe”.

  • Page 25: System Function Description

    Set the conversion time. (See Table 3.) (5) Select Channel Write down the ADC channel value. The channel number of PCI-AIO05 is from 0 to 4. (6) Select Range Set the ADC input range for each channel. (0 to 5, ±5, 0 to 10V, ±10V)

  • Page 26: Adc Graph Function Description

    PCI-AIO05 User‟s Manual (7) Average Numbers Specifies the number of data to which the moving average is applied. Specify a number from 1 to 255. It does not apply to AD data collection by ADC_GetData() function. (8) Select Resolution Set the AD data width (bits).

  • Page 27: Dio Function Description

    PCI-AIO05 User‟s Manual (5) „Clear‟ Button Clear AVG, MAX, MIN, DIFF values. 8-4 DIO Function Description DIO Auto Read Read the DIO value automatically. (2) „DIO Read‟ Button It is called when reading the value of general purpose I/O port. The read data is recorded in the editor box next to the button.

  • Page 28: Appendix

    (3) All DAQ SYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty.
  • Page 29 1. PCI System Architecture -- MindShare Inc. 2. PCI Local Bus Specification -- PCI-SIG 3. General information on PCI board API -- DAQ system 4. AN201 How to build application using APIs -- DAQ system 5. AN242 PCI-AIO05 API Programming -- DAQ system...
  • Page 30 PCI-AIO05 User‟s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
