PCIe-DIO05 User‟s Manual Contents 1. Introduction 1-1 Product Features ------------------------------------------------------------------------ 2. PCIe-DIO05 Block Diagram ---------------------------------------------------------- 3. PCIe-DIO05 Board Description 3-1 Board Outline ------------------------------------------------------------------------ Device Features ---------------------------------------------------------------------- 3-3 External IO DSub-37 Pin ---------------------------------------------------------------------- 4. Installation 4-1 Hardware Installation 4-1-1 Product Contents... -
Page 3: Introduction
PCIe-DIO05 User‟s Manual 1. Introduction PCIe-DIO05 is a 32-bit digital input/output board that is perfectly compatible with industrial PCs and uses a x1 Express PCI interface. All control of this board is designed with FPGA (Field Programmable Gate Array), so function enhancement or modification is free, and it can be easily upgraded according to the user's needs. - Page 4 PCIe-DIO05 User‟s Manual DAQ System Digital I/O Products Product No. In/Out Timer/Counter Specification cPCI-DIO6400 32/32 Isolated Input/Output 128 channels Software cPCI-DIO02 Read/Write in 8 Groups in 16-bit Units Configurable PCI(e)-DIO6400 32/32 Isolated Input/Output PCI-DIO6401 64/None Isolated Input PCI-DIO6402 None/64...
-
Page 5: Pcie-Dio05 Block Diagram
PCIe-DIO05 User‟s Manual 2. PCIe-DIO05 Block Diagram In the case of PCIe-DIO05, it has 32 TTL level input/output ports and is configured to interface with the outside. PCIe-DIO05 can set 4 groups of input and output in units of 8Bit. -
Page 6: Pcie-Dio05 Board Description

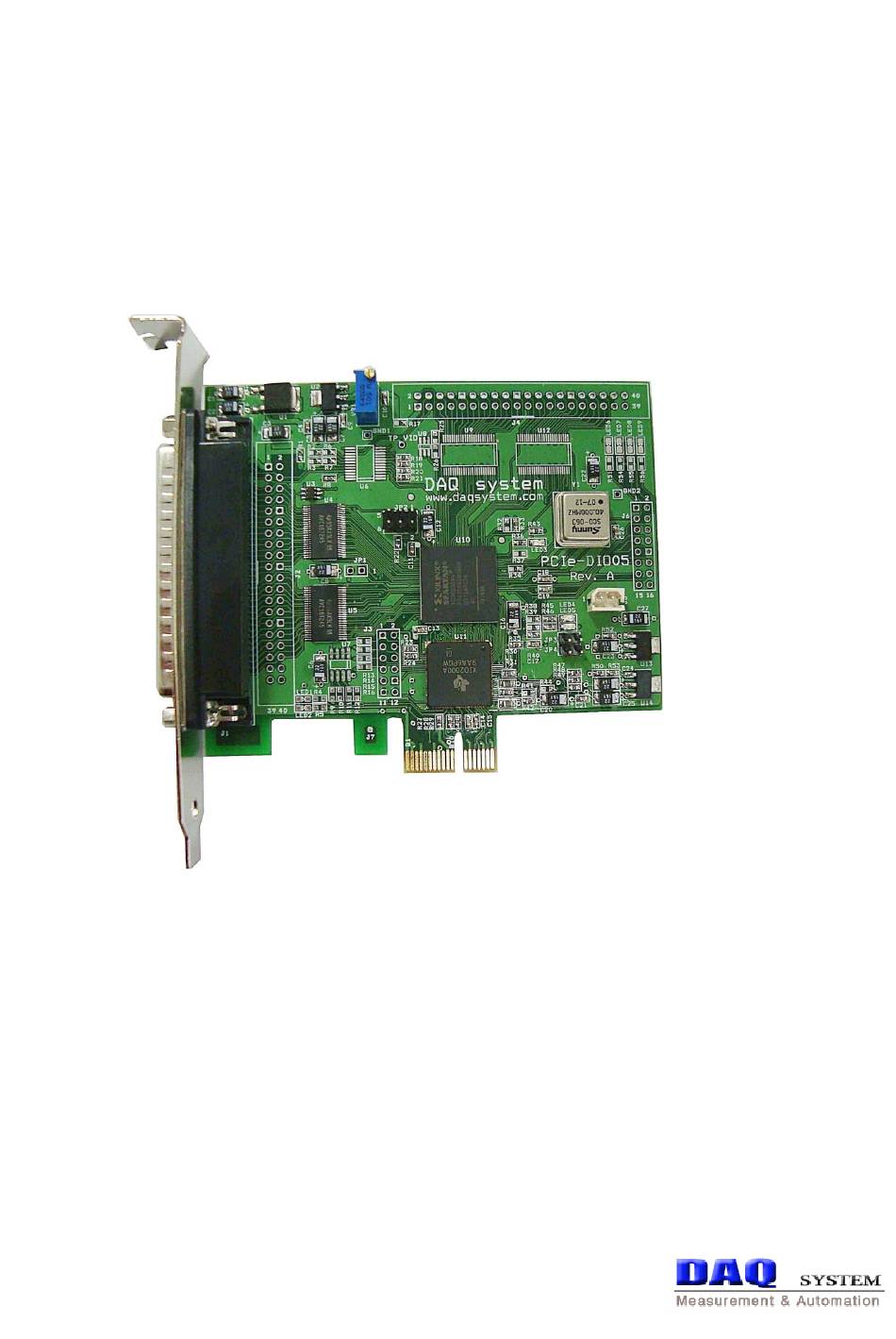

PCIe-DIO05 User‟s Manual 3. PCIe-DIO05 Board Description Each important board function is briefly described. For detailed function information, please refer to the parts specification. 3-1 Board Layout [Figure 3-1. PCIe-DIO05 Layout] There are a total of 3 LEDs on the board, the most important of which is LED3, and the description of each is as follows. -
Page 7: Device Features
PCIe-DIO05 User‟s Manual 3-2 Device Features (1) FPGA : U10 All functions of the board are controlled through this FPGA Logic. (2) Buffer : U4, U5, U9, U12 Digital I/O Buffer. (3) Regulator : U1, U2, U13, U14 It supplies the power used by the board. -
Page 8: External Io Dsub-37 Pin
DIN/OUT21 DIN/OUT22 DIN/OUT23 DIN/OUT24 DIN/OUT25 DIN/OUT26 DIN/OUT27 DIN/OUT28 DIN/OUT29 DIN/OUT30 DIN/OUT31 GROUND [Figure 4-1. PCIe-DIO05 D-Sub 37 Pin Connector] [Table 1. PCIe-DIO05 J1 Connector] Pin No. Pin No. Pin Name Description Remark (DSUB37) (BOX40) POWER Board Power Output READY READY... - Page 9 PCIe-DIO05 User‟s Manual DIN/OUT4 Digital Input 4 DIN/OUT6 Digital Input 6 DIN/OUT8 Digital Input 8 DIN/OUT10 Digital Input 10 DIN/OUT12 Digital Input 12 DIN/OUT14 Digital Input 14 DIN/OUT16 Digital Input 16 DIN/OUT18 Digital Input 18 DIN/OUT20 Digital Input 20 DIN/OUT22...
-
Page 10: Installation
Tighten the screws between the bracket of the board and the connection part of the case. ⑤ In case of multi-board, repeat from step 3. Connect the PCIe-DIO05 board in the PC to an empty PCI slot. When you turn on the power, a new hardware search window will appear. -
Page 11: Driver Installation
To install your PCIe-DIO05 board in your PC, follow the steps described in the document “How to install PCI DAQ Board” provided by DAQ System. If the document is missing, you can get it from www.daqsystem.com. The PCIe-DIO05 board is completely Plug & Play. There are no switches or jumpers to set. - Page 12 PCIe-DIO05 User‟s Manual The driver folder includes a file of “pcie_dio05.inf” and “pcie_dio05.sys” that it is necessary for driver installation. A warning message appears during installation here, press “Continue Anyway” button. You can show below message window. The process progress as follows.
- Page 13 If the installation is completely finished, you can show below message window. If the installation is completely finished, you confirm it in the following ways. Do the following steps to show up the “Device Manager” window. [My Computer -> properties -> Hardware -> Device Manager -> Multifunction Adaptors -> PCIe-DIO05]...
- Page 14 PCIe-DIO05 User‟s Manual If you can see the “PCIe-DIO05” at Multifunction Adaptors, the driver installation is to have been over. (Check the red circle) Notice : After installation, you should re-boot the system for the proper operation.
-
Page 15: Sample Program
PCIe-DIO05 User‟s Manual 5. Sample Program In the CDROM provided with the board, a sample program “PCIe_DIO05.exe” is provided for easy use of the board. In order to test the sample program, the driver of the board must be installed first. -
Page 16: Function Description
PCIe-DIO05 User‟s Manual 5-1 Function Description (1) DMA Size Set the DMA size of input data. Data can be input in 32-bit units, and after being input in the set size, it is transmitted from the DIO05 board to the PC main board. -
Page 17: 32-Ch Digital Io Setup
It is used to save the frame image data read into the PC as a file. 5-2 32-Ch Digital IO Setup PCIe-DIO05 can set 4 groups of input and output in units of 8Bit. LS_Set_Dir : Input, Output Setup (Input “0” , Output “1”) Ex) If “F”, ALL output,... -
Page 18: Appendix
(3) All DAQ SYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 19 PCIe-DIO05 User‟s Manual References 1. PCI System Architecture -- MindShare Inc. 2. PCI Local Bus Specification -- PCI-SIG 3. AN201 How to build application using APIs -- DAQ system 4. AN312 PCIe-DIO05 API Programming -- DAQ system...
