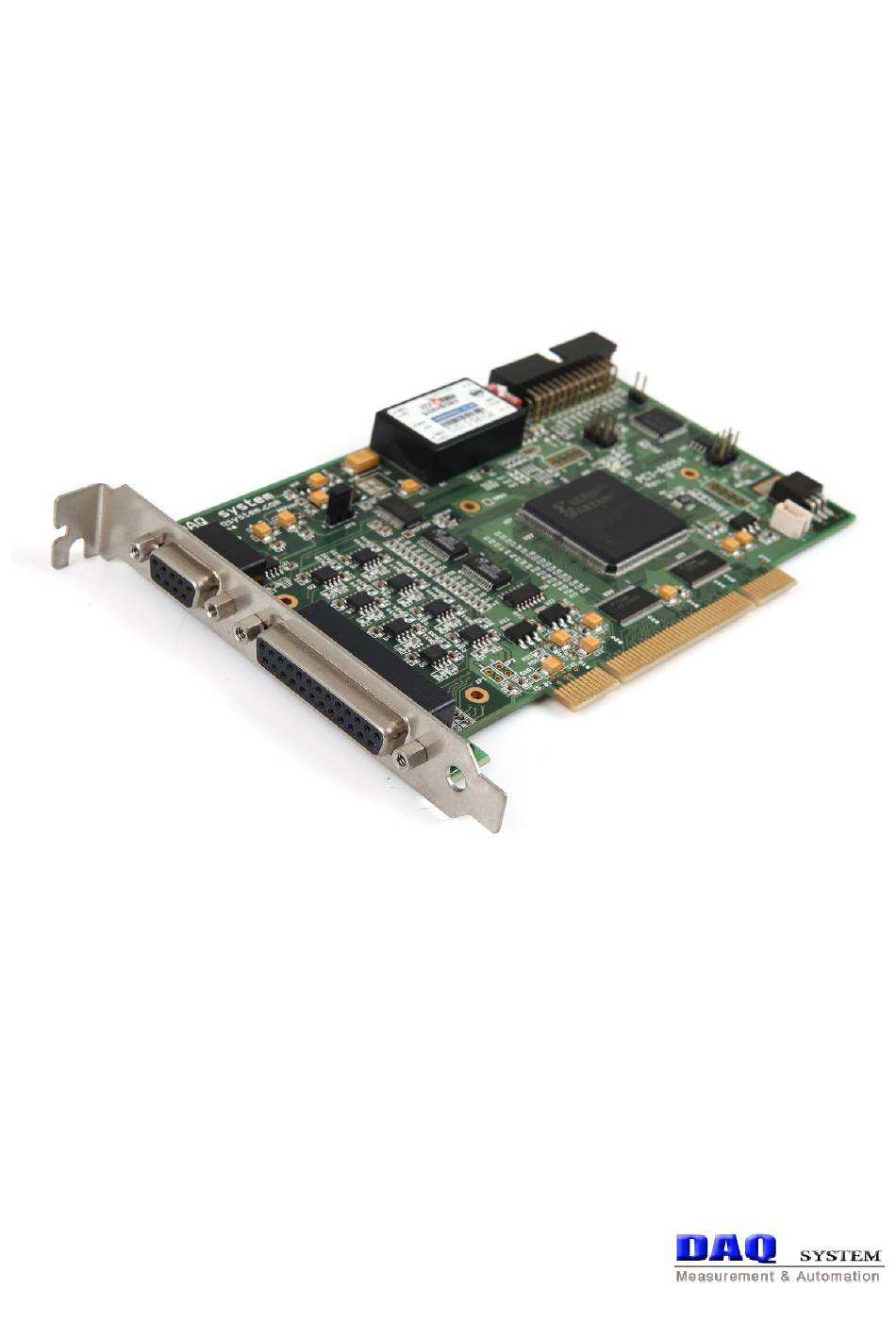

PCI-AIO04
User Manual
Version 0.8
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAQ system PCI-AIO04
Summary of Contents for DAQ system PCI-AIO04
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
PCI-AIO04 User’s Manual Contents 1. Introduction 1-1 Product Features ------------------------------------------------------------------------ 1-2 Product Applications ------------------------------------------------------------------------ 2. PCI-AIO02 Block Diagram ------------------------------------------------------------ 3. PCI-AIO04 Board Description 3-1 Board Outline ------------------------------------------------------------------------ Device Features ---------------------------------------------------------------------- Connector and Switch ------------------------------------------------------------------------ 3-3-1 D-Sub 25 Connector (P2) -------------------------------------------------------... - Page 3 PCI-AIO04 User’s Manual 7. Sample Program --------------------------------------------------------------------- 7-1 System Function Description --------------------------------------------------------------- 7-2 ADC Test Function Description -------------------------------------------------------------- 7-3 DAC Test Function Description -------------------------------------------------------------- 7-4 Select Channel Graph ---------------------------------------------------------------------- Appendix A-1 Repair Regulations ----------------------------------------------------------------------- Reference -----------------------------------------------------------------------...
- Page 4 PCI-AIO04 User’s Manual UPDATE HISTORY 2010-11-05 Add API function GetBoardVersion() - Effective from board version 2 2011-07-04 6. Add installation 7. Add sample program description...
-
Page 5: Introduction
PCI-AIO04 User’s Manual 1. Introduction PCI-AIO04 is an analog input/output PCI board that supports 2 channels of 12-bit DAC (Digital to Analog Converter) and 16 channels of 12/14/16-bit ADC (Analog to Digital Converter). All control of this board is designed with FPGA (Field Programmable Gate Array), so function enhancement or modification is free, and it can be easily upgraded according to the user's needs. -
Page 6: Product Applications
PCI-AIO04 User’s Manual 1-2 Product Applications ♦ PCI development and evaluation ♦ Data acquisition ♦ Laboratory instrumentation ♦ Process control systems ♦ Factory automation DAQ System Analog I/O Products Analog Input Analog Output Timer Products Sampling Resolution Channel Range(V) Resolution Channel... -
Page 7: Pci-Aio02 Block Diagram
PCI-AIO04 User’s Manual 2. PCI-AIO04 Block Diagram PCI-AIO04 is an analog input/output PCI board that supports 12-bit resolution DAC 2 channels and 12/14/16-bit resolution ADC 16 channels as shown in [Figure 2-1]. PCI-AIO04 INTERNAL BLOCK External PCI BUS Interface Local Bus... -
Page 8: Pci-Aio04 Board Description
PCI-AIO04 User’s Manual 3. PCI-AIO04 Board Description Each important board function is briefly described. For detailed function information, please refer to the parts specification. 3-1 Board Layout [Figure 3-1. PCI-AIO04 Layout] There are 3 LEDs on the board, and the description of each is as follows. -
Page 9: Device Features
PCI-AIO04 User’s Manual 3-2 Device Features (1) D-Sub 9 Pin : P1 DAC 2 channels Output Pin, Synchronous Pin (2) D-Sub 25 Pin : P2 Analog Input Pin, Pin for Trigger (3) FPGA : U22 All functions of the board are controlled through this FPGA Logic. -
Page 10: Connector And Switch
PCI-AIO04 User’s Manual 3-3 Connector and Switch D-SUB 9-pin and 25-pin connectors fixed to standard PCI brackets are used for analog signal output and input, respectively. [Figure 3-2. PCI-AIO04 PCI Bracket]... -
Page 11: D-Sub25 Connector (P2)
ADC IN6 ADC IN5 ADC IN4 ADC IN3 ADC IN2 ADC IN1 ADC IN0 [Figure 3-3. PCI-AIO04 D-sub 25 Connector] [Table 1. PCI-AIO04 D-sub 25 Pin Connector] Pin No. Name Description Remark ADC IN0 Analog Input Channel 0 +/- 10V Input... -
Page 12: D-Sub 9 Connector (P1)
0V GROUND FACE_IN0 Add future features 3.3V CMOS Input TRG_IN1 Add future features 3.3V CMOS Input TRG_OUT1 Add future features 3.3V CMOS Output 3-3-2 D-Sub 15 Connector (P1) DAC GROUND DAC SYNC DAC CH1 DAC CH0 [Figure 3-4. PCI-AIO04 D-sub15 Connector]... -
Page 13: Sw1 Switch
PCI-AIO04 User’s Manual [Table 2. PCI-AIO04 D-sub 9 Pin Connector] Pin No. Name Description Remark DAC CH0 Analog Output Channel 0 +/- 10V Output DAC CH1 Analog Output Channel 1 +/- 10V Output DAC SYNC Digital SYNC Output Open-collector Output... -
Page 14: Analog Output Wiring
PCI-AIO04 User’s Manual 4. Analog Output Wiring DAC CH0/1 DAC GROUND Actuator [Figure 4-1. Analog Output Wiring] In the figure above, the analog output comes out through the D-sub 9-pin connector. Since the two analog outputs are based on the channel 0 and channel 1 DAC Ground, the output channel and DAC... -
Page 15: Analog Input Wiring
PCI-AIO04 User’s Manual 5. Analog Input Wiring ADC CH0-15 AGND Sensor [Figure 5-1. Analog SE(Single Ended) Input Wiring] For analog SE connection, the input reference becomes the common analog GROUND (AGND). At this time, there are a total of 16 input channels. -
Page 16: Installation
Tighten the screws between the bracket of the board and the connection part of the case. ⑤ In case of multi-board, repeat from step 3. Connect the PCI-AIO04 board in the PC to an empty PCI slot. When you turn on the power, a new hardware search window will appear. -
Page 17: Driver Installation
The board environment must be Windows 2000 SP4 or higher and Windows XP SP1 or higher. First, turn off the PC's power, plug the PCI-AIO04 board into the PCI Slot, and turn on the PC's power. When the “Start New Hardware Wizard” window opens as shown below, selects it as shown below and click the Next button. - Page 18 PCI-AIO04 User’s Manual If new hardware is found, Wizard will ask you to install the corresponding driver. For installation of the driver, select the item “Install from a list or specific location (Advanced)” and click “Next” as in the figure.
- Page 19 PCI-AIO04 User’s Manual If the installation is completely finished, you can show below message window.
- Page 20 “Device Manager” window. [My Computer -> properties -> Hardware -> Device Manager -> Multifunction Adaptors -> PCI-AIO04] If you can see the “PCI-AIO04” at Multifunction Adaptors, the driver installation is to have been over. (Check the red circle)
-
Page 21: Sample Program
PCI-AIO04 User’s Manual 7. Sample Program DAQ system provides a sample program to make the user be familiar with the board operation and to make the program development easier. You can find the sample program in the CDROM accompanying with the board. One of the execution file is “PCI_AIO.exe”. -
Page 22: System Function Description
PCI-AIO04 User’s Manual 7-1 System Function Description (1) Select Device Select our own PCI-AIO0 ~ AIO05 board (2) Board Number Select the board number. Up to 4 selectable (3) „Device Open‟ Button Click to open the selected board. (4) „Device Close‟ Button Close the running board when clicked. -
Page 23: Dac Test Function Description
PCI-AIO04 User’s Manual (8) Select Range Set the ADC input range for each channel. (0 to 5, ±5, 0 to 10V, ±10V) (9) Voltage Level Conversion The read data is a value converted to a voltage level. (10) Select Resolution Set the AD data width (bits). -
Page 24: Select Channel Graph
PCI-AIO04 User’s Manual (6) DAC Auto Out Outputs the current DAC value automatically. 7-4 Select Channel Graph (1) Average Numbers The number of data to which the moving average is applied is designated as a number from 1 to 255. -
Page 25: Appendix
(3) All DAQ SYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 26 PCI-AIO04 User’s Manual References 1. PCI System Architecture -- MindShare Inc. 2. PCI Local Bus Specification -- PCI-SIG 3. General information on PCI board API -- DAQ system 4. AN201 How to build application using APIs -- DAQ system 5. AN242 PCI-AIO01/02/04 API Programming...
- Page 27 PCI-AIO04 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
