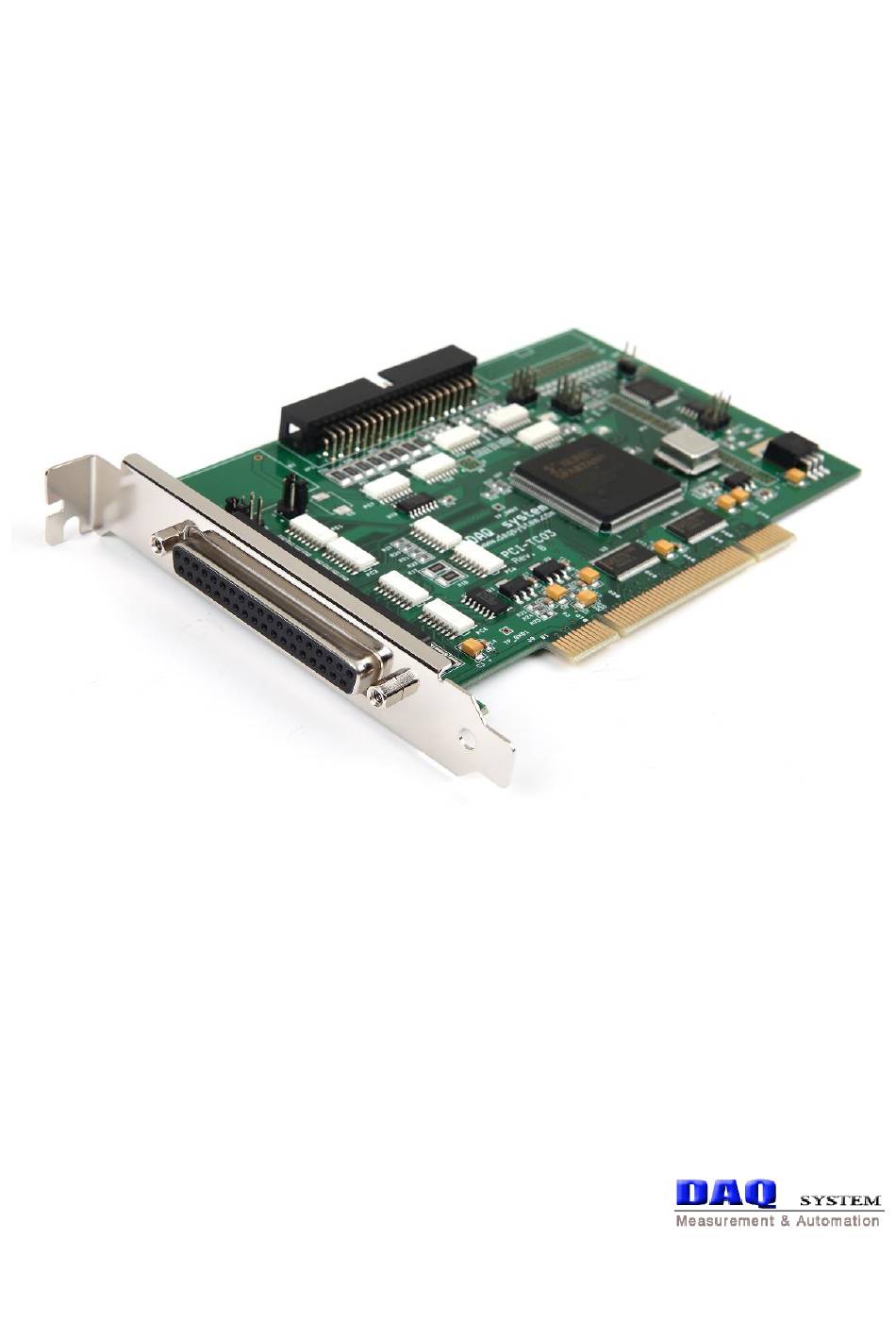

PCI-TC03
User Manual
Version 1.1
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Related Manuals for DAQ system PCI-TC03
Summary of Contents for DAQ system PCI-TC03
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
PCI-TC03 User‟s Manual Contents Introduction --------------------------------------------------------------------- 1-1 Product Features ------------------------------------------------------------------------ 1-2 Product Applications ------------------------------------------------------------------------ 2. PCI-TC03 Block Diagram ----------------------------------------------------------- 3. PCI-TC03 Board Description Board Layout ------------------------------------------------------------------------ Device Features -------------------------------------------------------------------------- Connector Pin Map 3-3-1 External DSub-37Pin (J2) ------------------------------------------------------------- 3-3-2 Internal BOX 40Pin (JP1) - Page 3 PCI-TC03 User‟s Manual 5. Sample Program 5-1 Program Interface --------------------------------------------------------------------- 5-2 Function Description -------------------------------------------------------------------- Appendix A-1 Repair Regulations -------------------------------------------------------------------- Reference -----------------------------------------------------------------------...
-
Page 4: Introduction
PCI-TC03 User‟s Manual 1. Introduction PCI-TC03 is a board with 8 32-bit counter/timers (RS-485 or RS-422 Type) and 16-bit digital input/output (TTL Level) board that is perfectly compatible with industrial PCs and uses a PCI interface. All control of this board is designed with FPGA (Field Programmable Gate Array), so function enhancement or modification is free, and it can be easily upgraded according to the user's needs. -
Page 5: Product Features
PCI-TC03 User‟s Manual 1-1 Product Features Items Description Remark Hardware PC Interface PCI 32bit/33Mhz Operation Power +5VDC at 250mA typical I/O Port D-Sub37 Plug Type Feature 8Ch Counter/Timer, 16/16bit Digital I/O Isolated Digital Input Number of Channels : 16 Number of Common Input : 2... -
Page 6: Product Applications
PCI-TC03 User‟s Manual 1-2 Product Applications ♦ Data acquisition ♦ Laboratory instrumentation ♦ Process control systems... -
Page 7: Pci-Tc03 Block Diagram
PCI-TC03 User‟s Manual 2. PCI-TC03 Block Diagram PCI-TC03 consists of 8 32-bit counters, 8 32-bit timers, 16-bit digital input circuit, and 16-bit digital output circuit as shown in [Figure 2-1]. PCI-TC03 INTERNAL BLOCK External PCI BUS Interface Local Bus Address... -
Page 8: Pci-Tc03 Board Description
PCI-TC03 User‟s Manual 3. PCI-TC03 Board Description Each important board function is briefly described. For detailed function information, please refer to the parts specification. 3-1 Board Layout [Figure 3-1. PCI-TC03 Layout] There are 3 LEDs on the board, and the description of each is as follows. -
Page 9: Device Features
PCI-TC03 User‟s Manual 3-2 Device Features (1) FPGA : U4 All functions of the board are controlled through this FPGA Logic. (2) Photo-coupler : PC1 ~ PC11 Photo-coupler chipset. (3) Regulator : U1, U2, U7, U10 It supplies the power used by the board. -
Page 10: Connector Pin Map
PCI-TC03 User‟s Manual 3-3 Connector Pin Map PCI-TC03 receives counter, timer and digital I/O in two parts: D-Sub37 Pin (external connector) J2 and BOX 40 Pin header (internal connector) JP1. 3-3-1 External DSub-37Pin (J2) PWR_OUT DOUT7 DOUT6 DOUT5 DOUT4 DOUT3... - Page 11 PCI-TC03 User‟s Manual COUNT2+ Counter2 + Input COUNT3+ Counter3 + Input DIN0 Digital Input 0 DIN2 Digital Input 2 DIN4 Digital Input 4 DIN6 Digital Input 6 DIN_COM Digital Input Common DIN0~7 Common Input GND OUT Board Ground Output TMR0 +...
-
Page 12: Internal Box 40Pin (Jp1)
TMR7- DOUT8 DOUT9 DOUT10 DOUT11 DOUT12 DOUT13 DOUT14 DOUT15 DIO_PWR1 [Figure 3-2. PCI-TC03 BOX 40 Pin JP1 Connector] [Table 2. PCI-TC03 BOX40 PIN JP1 Connector(HIROSE HIF3F-40PA-2.54DS)] Pin No. Pin Name Description Remark COUNT4+ Counter4 + Input COUNT4- Counter4 - Input... - Page 13 PCI-TC03 User‟s Manual COUNT6- Counter6 - Input COUNT7+ Counter7 + Input COUNT7- Counter7 - Input DIN8 Digital Input 8 DIN9 Digital Input 9 DIN10 Digital Input 10 DIN11 Digital Input 11 DIN12 Digital Input 12 DIN13 Digital Input 13 DIN14...
-
Page 14: Output Power Jumper (J3, J6)
PCI-TC03 User‟s Manual 3-3-3 Output Power Jumper (J3, J6) It is used as an external device power source of In/Out connector. [Figure 3-3. J3, J6 Jumper (Top View)] [Table 3. J3, J6 Power Connector] Pin No. Pin Name Description Remark... -
Page 15: Sw2
PCI-TC03 User‟s Manual 3-4-5 SW2 In a system that requires many I/O ports, if several PCI-TC03 series boards are installed in one system, each board address must be used separately. At this time, each board is classified using the dip switch (SW2) on the board. -
Page 16: Counter Input Circuit
The counter signal receives a differential signal, which is +/- two signal lines, as an input, such as RS-485 or RS-422. In the figure, the counter input circuit is insulated by a port coupler that is strong against circuit protection and noise. A total of 8 photo coupler circuits are configured on the PCI-TC03 board. -
Page 17: Timer Output Circuit
RS-422. In the figure above, the timer output circuit is insulated by a port coupler. And a current limiting resistor 10Ω (Ohm) is connected in series to the output for protection. A total of 8 photo coupler circuits are configured on the PCI-TC03 board. -
Page 18: Digital Input Circuit
PCI-TC03 User‟s Manual 3-7 Digital Input Circuit 3.3V DIN_COM In 0 DIN 0 3.3V In 7 DIN 7 3.3V DIN_COM1 In 8 DIN 8 3.3V In 15 DIN 15 [Figure 3-8. Digital Input Circuit] As shown in the figure above, the 16-bit digital input circuit is insulated by a port coupler, and... -
Page 19: Digital Output Circuit
PCI-TC03 User‟s Manual 3-7 Digital Output Circuit 3.3V DOUT 0 Out 0 DOUT_COM DOUT 7 Out 7 3.3V DOUT 8 Out 8 DOUT_COM1 DOUT 15 Out 15 [Figure 3-9. Digital Output Circuit] As shown in the figure above, the output circuit is insulated by a port coupler, and it is divided by 8 channels to use DOUT_COM and DOUT_COM1 in common. -
Page 20: Installation
Tighten the screws between the bracket of the board and the connection part of the case. ⑤ In case of multi-board, repeat from step 3. Connect the PCI-TC03 board in the PC to an empty PCI slot. When you turn on the power, a new hardware search window will appear. -
Page 21: Driver Installation
After mounting the board, install the driver and sample application program to run the board on the PC by referring to the contents of the provided CD. The PCI-TC03 and PCIe-TC03 use the same driver and API, so they can share data. The installation procedure is described based on Windows XP for PCIe-TC03 board. - Page 22 PCI-TC03 User‟s Manual (2) After find a driver folder of the CD, press “next” button. ex F:\CDROM_PCI_TC03\Driver The driver folder includes a file of “pci_tc03.inf” and “pci_tc03.sys” that it is necessary for driver installation.
- Page 23 PCI-TC03 User‟s Manual (3) A warning message appears during installation here, press “Continue Anyway” button. You can show below message window. The process progress as follows. (4) If the installation is completely finished, you can show below message window.
- Page 24 “Device Manager” window. [My Computer -> properties -> Hardware -> Device Manager -> Multifunction Adaptors -> PCI-TC03] If you can see the “PCI-TC03” at Multifunction Adaptors, the driver installation is to have been over. (Check the red circle)
-
Page 25: Sample Program
PCI-TC03 User‟s Manual 5. Sample Program 5-1 Program Interface In the APP folder of the CDROM provided with the board, a sample program “PCI_TC03_APP.exe” is provided for easy use of the board. In order to test the sample program, the driver of the board must be installed first. -
Page 26: Function Description
PCI-TC03 User‟s Manual 5-2 Function Description (1) 32Bit 8 Channel Counter Function Enable the 8 channels Counter, and read the current Counter value. Init (All) : (All) Counter initialize. Read (All) : (All) Counter read the current value. Clear (All) : (All) Counter value clear. -
Page 27: Appendix
(3) All DAQ SYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 28 PCI-TC03 User‟s Manual References 1. PCI System Architecture -- MindShare Inc. 2. PCI Local Bus Specification -- PCI-SIG 3. AN201 How to build application using APIs -- DAQ system 4. AN242 PCI-TC03 API Programming --DAQ system...
- Page 29 PCI-TC03 User‟s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
