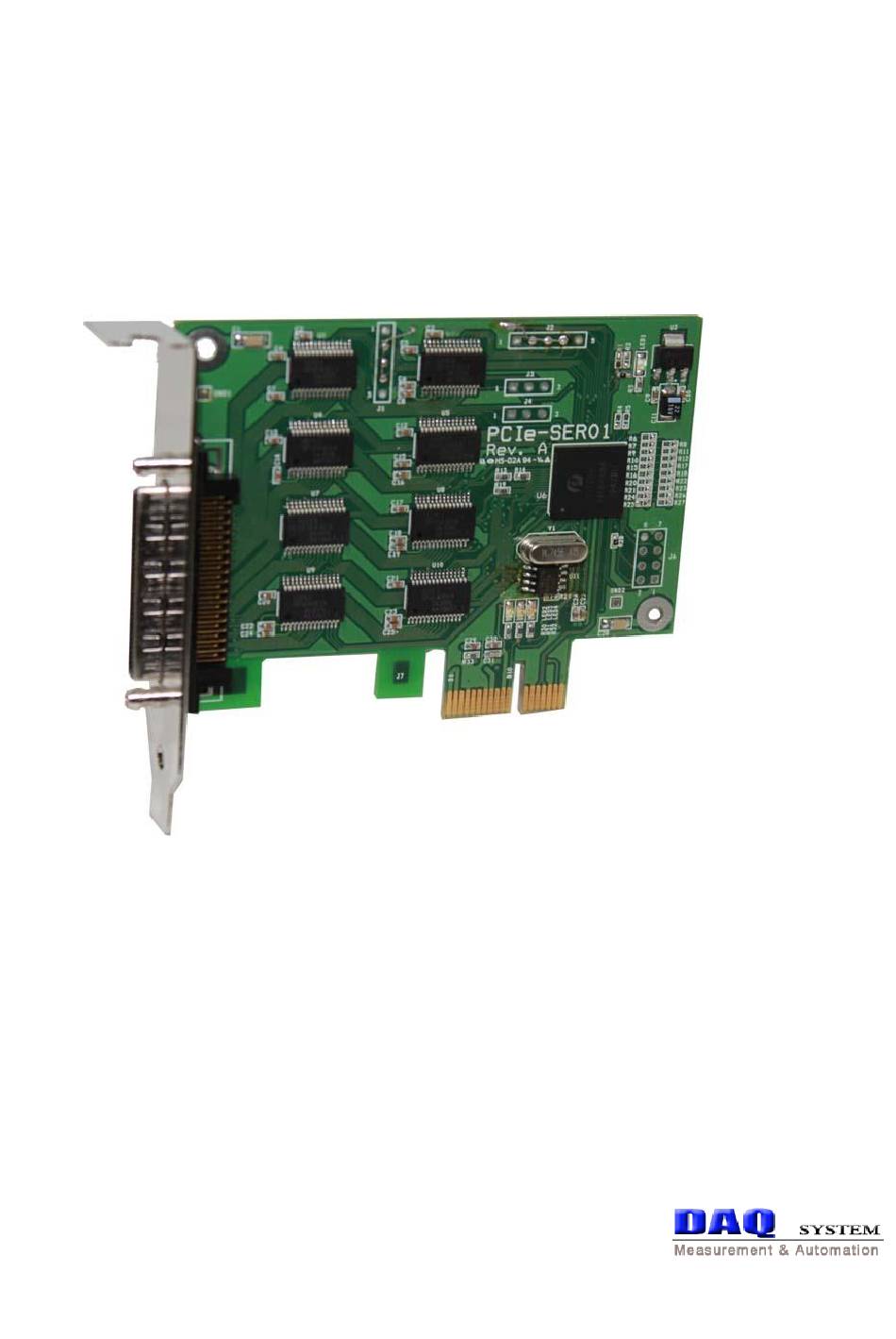

PCIe-SER01
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DAQ system PCIe-SER01
Summary of Contents for DAQ system PCIe-SER01
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
PCIe-SER01 User’s Manual Contents 1. PCIe-SER01 Introduction ------------------------------------------------------------ 1-1 PCIe-SER01 Features -------------------------------------------------------------------- 1-2 Applications -------------------------------------------------------------------------- 2. PCIe-SER01 Board Description --------------------------------------------------- 2-1 PCIe-SER01 Connection ---------------------------------------------------------------------- 2-2 Connector Pin-Out ----------------------------------------------------------------------- 3. How to Install and Use ------------------------------------------------------------- 3-1 Check the contents -------------------------------------------------------------------------... -
Page 3: Pcie-Ser01 Introduction
1.2 specifications. Additionally, in-baud and out-baud are automatically adjusted and up to 15Mbps(asynchronous mode) Provides 8 high-spec UARTs with baud rate. PCIe-SER01 can be used for Multi-port such as RS-232, RS-422, RS-485, and Remote Access Servers such as ATM, POS, Instrumentation, Process control and automation. -
Page 4: Pcie-Ser01 Features
PCIe-SER01 User’s Manual 1-1 PCIe-SER01 Features x1 PCI Express link host interface Eight high performance UARTs Compliant with PCI Express Base Specification 1.1 Fully 16C550 software compatible UARTs 128-byte FIFO for each transmitter and receiver ... -
Page 5: Pcie-Ser01 Board Description
PCIe-SER01 User’s Manual 2. PCIe-SER01 Board Description PCIe-SER01 is a x1 PCI Express host interface that provides 8 high-end UARTs, and UART channel status registers and environment settings can be accessed directly through the PCI Express interface through EEPROM. For more details, refer to the PI7C9X7958 manual. -
Page 6: Connector Pin-Out
PCIe-SER01 User’s Manual 2-2 Connector Pin-Out PCIe-SER01 is a 68pin VHDCI (Very High Density Cable Interconnect) 0.8mm female right angle connector and supports 8 UART communication ports. R_DTR7 R_RTS7 R_RI7 R_TX7 R_CTS7 R_DSR7 R_RX7 R_DCD7 R_DTR6 R_RTS6 R_RI6 R_TX6 R_CTS6... - Page 7 PCIe-SER01 User’s Manual [Table 2. J5 Connector Description] Name Description Remark R_DTR7 Modem Data-Terminal-Ready Output 7 Port 7 R_RI7 Modem Ring-Indicator Input 7 Port 7 R_CTS7 Modem Clear-To-Send Input 7 Port 7 R_RX7 UART Serial Data Input 7 Port 7...
- Page 8 PCIe-SER01 User’s Manual Input 7 R_RTS6 Modem Request-To-Send Output 6 Port 6 R_TX6 UART Serial Data Output 6 Port 6 R_DSR6 Modem Data-Set-ready Input 6 Port 6 R_DCD6 Modem Data-Carrier-Detect Input & General Purpose Port 6 Input 6 R_RTS5 Modem Request-To-Send Output 5...
-
Page 9: How To Install And Use
PCIe-SER01 User’s Manual 3. How to Install and Use Before installing the board, check that the contents of the package are intact. 3-1 Check the contents product contents 1. PCIe-SER01 Board 2. CD (Driver/Manual etc) 3-2 Installation If new hardware is found, Wizard will ask you to install the corresponding driver. For installation of the driver, select the item “Install from a list or specific location (Advanced)”... - Page 10 PCIe-SER01 User’s Manual After find a driver folder of the CD, press “next” button. Process progress as follows (continuous button click).
- Page 11 PCIe-SER01 User’s Manual Process progress as follows. “Finish” button click.
- Page 12 PCIe-SER01 User’s Manual Repeat this process at each port. (If Win XP) If the installation is completely finished, you can use the USB-DIO6400 board. But, it confirm a driver normally installation in the following ways.
- Page 13 PCIe-SER01 User’s Manual Do the following steps to show up the “Device Manager” window. [My Computer -> Properties -> Hardware -> Device Manager -> Multifunction Adapters -> “Pericom PI7C9X7958 PCI Express UART Device”] If you can see the “Pericom PI7C9X7958 PCI Express UART Device” at Multifunction Adapters, the driver installation is to have been over.
-
Page 14: How To Use
PCIe-SER01_TEST (refer to Appendix A.2) board, which is our test board, through Loop-back. To test the PCIe-SER01 board, you need a terminal emulator program to communicate with an external device. It is okay to use Hyper Terminal or other serial communication program... -
Page 15: Test Board Connection
The table below is the PCIe_SER01 TEST port number connected to the program COM port when connecting the PCIe-SER01 board and the PCIe-SER01_TEST (refer to Figure 2.3) board, which is our test board. If the serial port is connected to RS232_0, the port number becomes COM5 as shown in [Table 3]. - Page 16 PCIe-SER01 User’s Manual RS232_0 RS232_1 RS232_2 RS232_3 RS232_4 RS232_5 RS232_7 RS232_8 [Figure 3-1. PCIe-SER01_TEST Layout]...
-
Page 17: Appendix
PCIe-SER01 User’s Manual Appendix A-1 PCIe-SER01 Board Size The size of the board is as follows. (84.5 x 68mm) 84.5 A-2 PCIe-SER01_TEST Board (for separate purchase) -
Page 18: Repair Regulations
(3) All DAQSYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 19 PCIe-SER01 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
