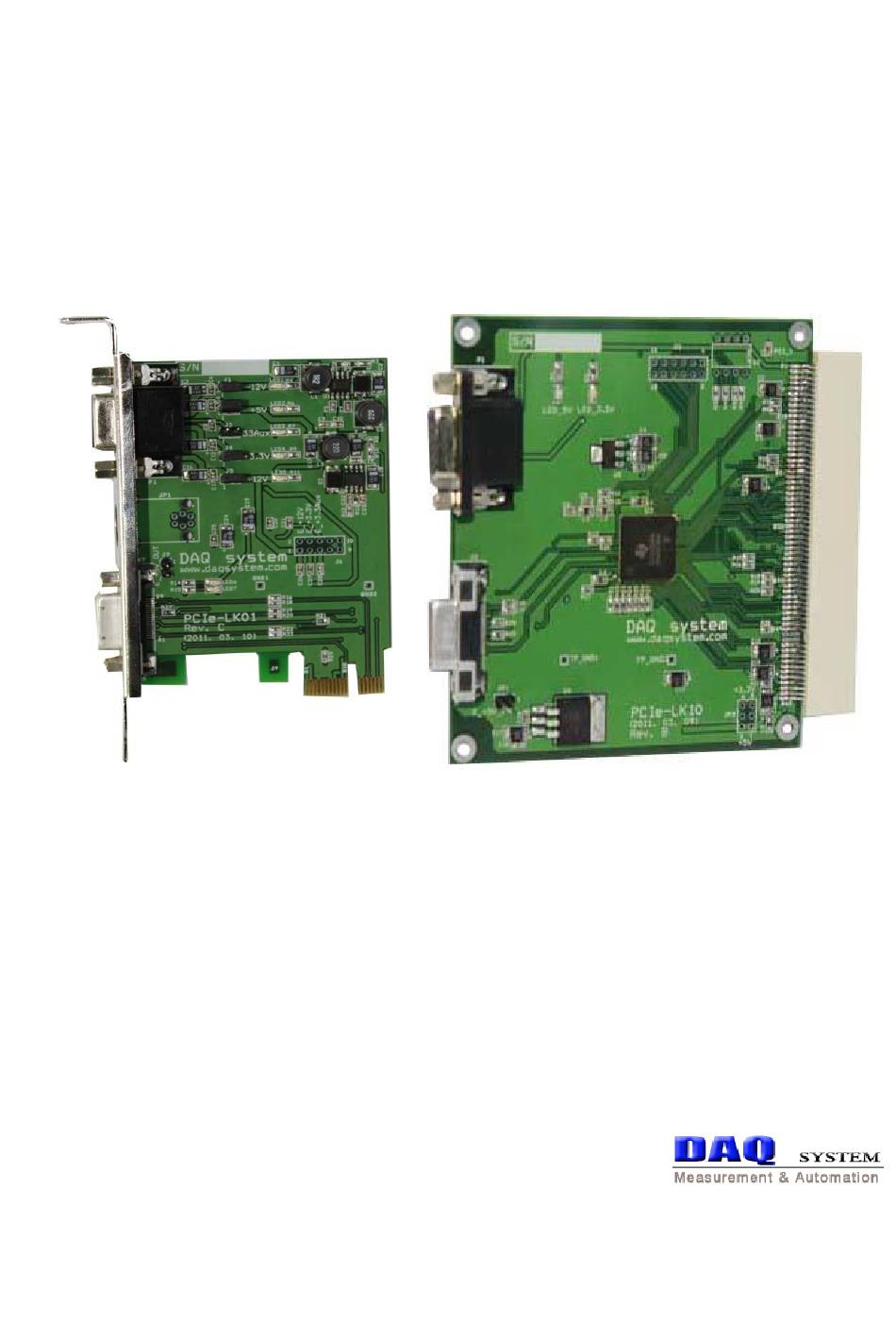

PCIe-LK01 & PCIe-LK10
User Manual
Version 1.0
ⓒ 2005 DAQ SYSTEM Co., Ltd. All rights reserved.
Microsoft® is a registered trademark; Windows®, Windows NT®, Windows XP®, Windows 7®, Windows 8®, Windows 10®
All other trademarks or intellectual property mentioned herein belongs to their respective owners.
Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor
for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under
any patent or copyrights of DAQ SYSTEM.
The information in this document is subject to change without notice and no part of this document may be copied or reproduced without the prior
written consent.
Advertisement
Table of Contents
Related Manuals for DAQ system PCIe-LK01
Summary of Contents for DAQ system PCIe-LK01
- Page 1 All other trademarks or intellectual property mentioned herein belongs to their respective owners. Information furnished by DAQ SYSTEM is believed to be accurate and reliable, However, no responsibility is assumed by DAQ SYSTEM for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of DAQ SYSTEM.
-
Page 2: Table Of Contents
Contents 1. PCIe-LK01 & PCIe-LK10 Introduction ----------------------------------------- 1-1 PCIe-LK01 & PCIe-LK10 Features ------------------------------------------------------------ 1-2 Applications -------------------------------------------------------------------------- 2. PCIe-LK01 & PCIe-LK10 Board Description --------------------------------- 2-1 PCIe-LK01 & PCIe-LK10 Connection --------------------------------------------------------- 2-2 P1 Connector Pin-Out ----------------------------------------------------------------------- 2-2 J8 & J2 Connector Pin-Out... -
Page 3: Pcie-Lk01 & Pcie-Lk10 Introduction
1. PCIe-LK01 & PCIe-LK10 Introduction The PCIe-LK01 PCI Express card is a set of PCIe-LK10 board and is used to interface external PCI products in a general PC. It is a board that supplies the power and PCI Express signals of the board and allows PCI products to interface with a PC without a driver. -
Page 4: Pcie-Lk01 & Pcie-Lk10 Features
PCIe-LK01 & PCIe-LK10 User’s Manual [Figure 1-2. PCIe-LK10 & PCI Product Connection] 1-1 PCIe-LK01 & PCIe-LK10 Features x1 PCI Express link host interface Compliant with PCI Express Base Specification 1.1 Supply of various power sources (±12V, 3.3V, 3.3V AUX, 5V) ... -
Page 5: Pcie-Lk01 & Pcie-Lk10 Board Description
PCIe-LK01 & PCIe-LK10 User’s Manual 2. PCIe-LK01 & PCIe-LK10 Board Description PCIe-LK01 supplies PCI Express signal through EX_1X_CON (MDR-18pin: J8, J2) connector, and various power sources (±12V, 3.3V, 3.3V AUX, 5V) through DB-15 (P1) connector to PCIe -Transfers to the LK10 board, allowing PCI products to interface with a PC without a driver or external power supply. -
Page 6: P1 Connector Pin-Out
PCIe-LK01 & PCIe-LK10 User’s Manual 2-2 P1 Connector Pin-Out The various power sources (±12V, 3.3V, 3.3V AUX, 5V) of the PCIe-LK01 are transferred to the P1 connector of the PCIe-LK10 board through the P1 (DB-15) connector. The PCIe-LK10 board receives this power and uses it. -
Page 7: J8 & J2 Connector Pin-Out
PCIe-LK01 & PCIe-LK10 User’s Manual 2-3 J8 & J2 Connector Pin-Out These connectors transmit the Express PCI signal of PCIe-LK01 to J2 connector of PCIe-LK10 board through J8 (MDR-18) connector. The PCIe-LK10 board receives this signal and converts it into a PCI signal to provide an interface with external PCI products. -
Page 8: Appendix
PCIe-LK01 & PCIe-LK10 User’s Manual Appendix A-1 PCIe-LK01 Board Size The size of the board is as follows. (67 x 74.5mm) 74.5 A-2 PCIe-LK10 Board Size The size of the board is as follows. (108 x 100mm) -
Page 9: Repair Regulations
(3) All DAQSYSTEM products have a one-year warranty. -. The warranty period is counted from the date the product is shipped from DAQ SYSTEM. -. Peripherals and third-party products not manufactured by DAQ SYSTEM are covered by the manufacturer's warranty. - Page 10 PCIe-LK01 & PCIe-LK10 User’s Manual MEMO Contact Point Web sit : https://www.daqsystem.com Email : postmaster@daqsystem.com...
