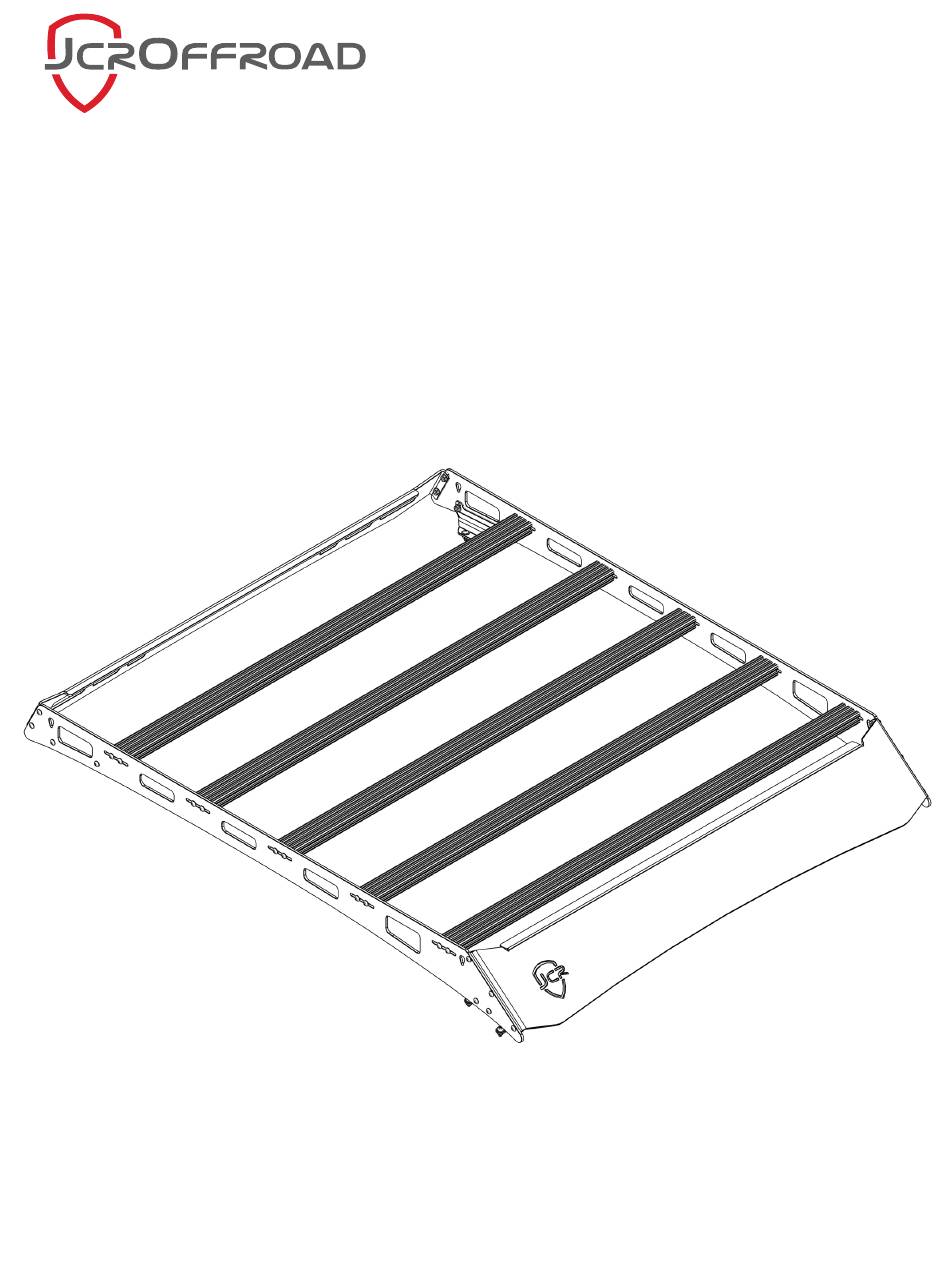

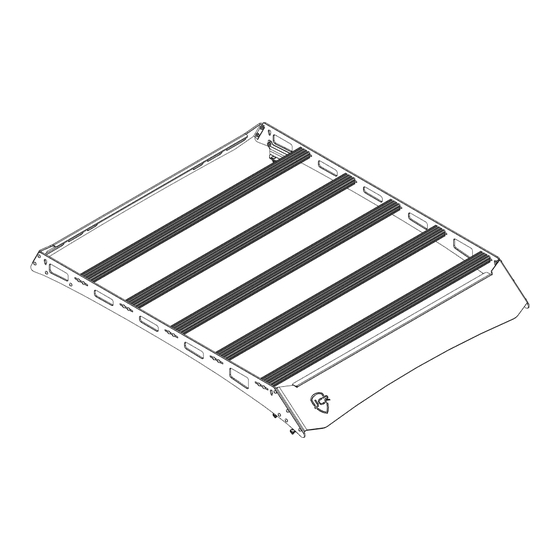

4T H G E N RAN GE R
R OOF R AC K
IN S TAL L I NSTRU C TIO NS
Please read the mounting instructions below carefully before attempting to install.
Check out the install video on the product page for factory rack disassembly.
Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road
products. Be sure to rate and review our product online. If you have any questions or are missing parts, please
don't hesitate to call us at 269-353-1184!
Advertisement
Related Manuals for JCROffroad RG4RK
Summary of Contents for JCROffroad RG4RK
- Page 1 Check out the install video on the product page for factory rack disassembly. Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road products. Be sure to rate and review our product online. If you have any questions or are missing parts, please...
-
Page 2: I Nclu D E D Hardware
I NCLU D E D HARDWARE 1/4"-20 X 3/4" 1/4"-20 X 3/8" Button Head Button Head Included with light bar cutout option. 1/4"-20 T-Nut 1/4"-20 Included with light Serr. Flange Nut bar cutout option. 1/4” ID Washer Washer 1/4"-20 Nylon-Insert Flange Nut... -
Page 3: Included Parts
I NC LU D E D PA RTS 1L/1R 1L/1R Included with light bar cutout option. 1L/1R... - Page 4 A SS E M BLY Assemble the rack on the ground. Start by mounting the crossbars between the two side rails. For this, use the 1/4”-20 X 3/4” button head bolts and the 1/4” ID washers (2 per bar per side). Make sure the machined slot in the rail of the crossbar is facing up, so that you can easily add t-nuts to mount your gear.
- Page 5 A SS E M BLY Next, mount the strip of trim to the bottom edge of the front fairing. Start just to the outside of the peak of the bottom edge and continue until it reaches the equivalent point on the other side of the fairing. Cut off any extra.
- Page 6 AS SE M BLY Mount the front and rear fairings. To do this, use the 1/4”-20 X 3/4” button head bolts, 1/4” ID washers, and 1/4”-20 serrated flange nuts. The front fairing will need 3 of each per side and the rear fairing will need 2 of each per side.
- Page 7 AS SE M BLY Next, attach the mounts to the inside of the side rails using the 1/4”-20 X 3/4” button head bolts, 1/4” washers and 1/4” serrated flange nuts. The arrows should always be pointing towards the front of the vehicle.
- Page 8 ASSE M BLY Next, place the assembled rack up onto the roof and line the front hole in the front mount and rear hole in the rear mount in the factory holes in the roof of the vehicle. To make sure they stay lined up, it is best to put one of the 1/4”...
- Page 9 A S S E M B LY With everything into place, make any adjustments that are necessary in order to get an even gap between the bottom edge of the rack and the roof, all the way down the length of the vehicle and then tighten everything into place.
- Page 10 4 0” L IG HT B AR A S S E M B LY Slide 2 t-nuts into each of the channels on the top side of the front-most crossbar using the slots. Then, place each light bar mount over one pair of t-nuts and loosely bolt it in place using the 1/4”-20 X 3/8”...
- Page 11 DI M E N SI O NS...
