J E E P G L A D I ATOR J T

TO PP E R R OO F RAC K

IN S TA L L I NS TRU C T I O N S

Please read the mounting instructions below carefully before attempting to install.

Check out the install video on the product page, if available.

Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road

products. Be sure to rate and review our product online. If you have any questions or are missing parts, please

don't hesitate to call us at 269-353-1184!

Page 1 Check out the install video on the product page, if available. Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road products. Be sure to rate and review our product online. If you have any questions or are missing parts, please...
Page 2: Included Parts
I NCLU D E D PARTS...
Page 3: I Nc Lud E D H A R Dwar E
I NC LUD E D H A R DWAR E 1/4"-20 X 3/4" 1/4"-20 X 3/8" Button Head Button Head 1/4” ID Washer 1/4"-20 T-Nut 5/16”-18 X 1/2” 5/16”-18 Button Head T-Nut...
Page 4 AS SE M BLY Start by measuring the distance between the rails on the roof of the topper. Then, attach the two of the mounts to one of the crossbars, centered on the bar and the same distance apart as the rails on the topper. Do this using the 1/4”-20 X 3/8”...

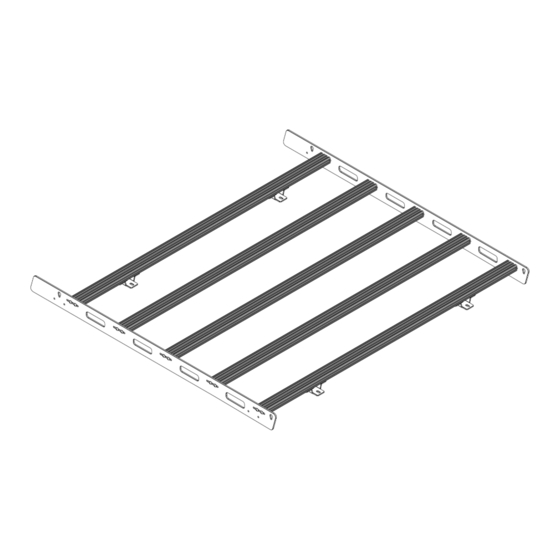

Page 5 A SS E M BLY Assemble the rack on the ground. Mount the crossbars between the 2 side rails. For this, use the1/4”-20 X 3/4” button head bolts and the 1/4” ID washers (2 per bar per side). Make sure that the machined slots are facing up and the bars that have mounts attached to them go in the front and rear.
Page 6 AS SE M BLY Next, slide the larger 5/16”-18 t-nuts into the factory rails on the topper and put the rack up on the roof. Then, loosely bolt the rack to the t-nuts using the 5/16”-18 X 1/2” button head bolts and 5/16” ID washers. Adjust the position of the rack until it is where you like and then tighten it fully into place.
Page 7 D I M E NS IO NS...
