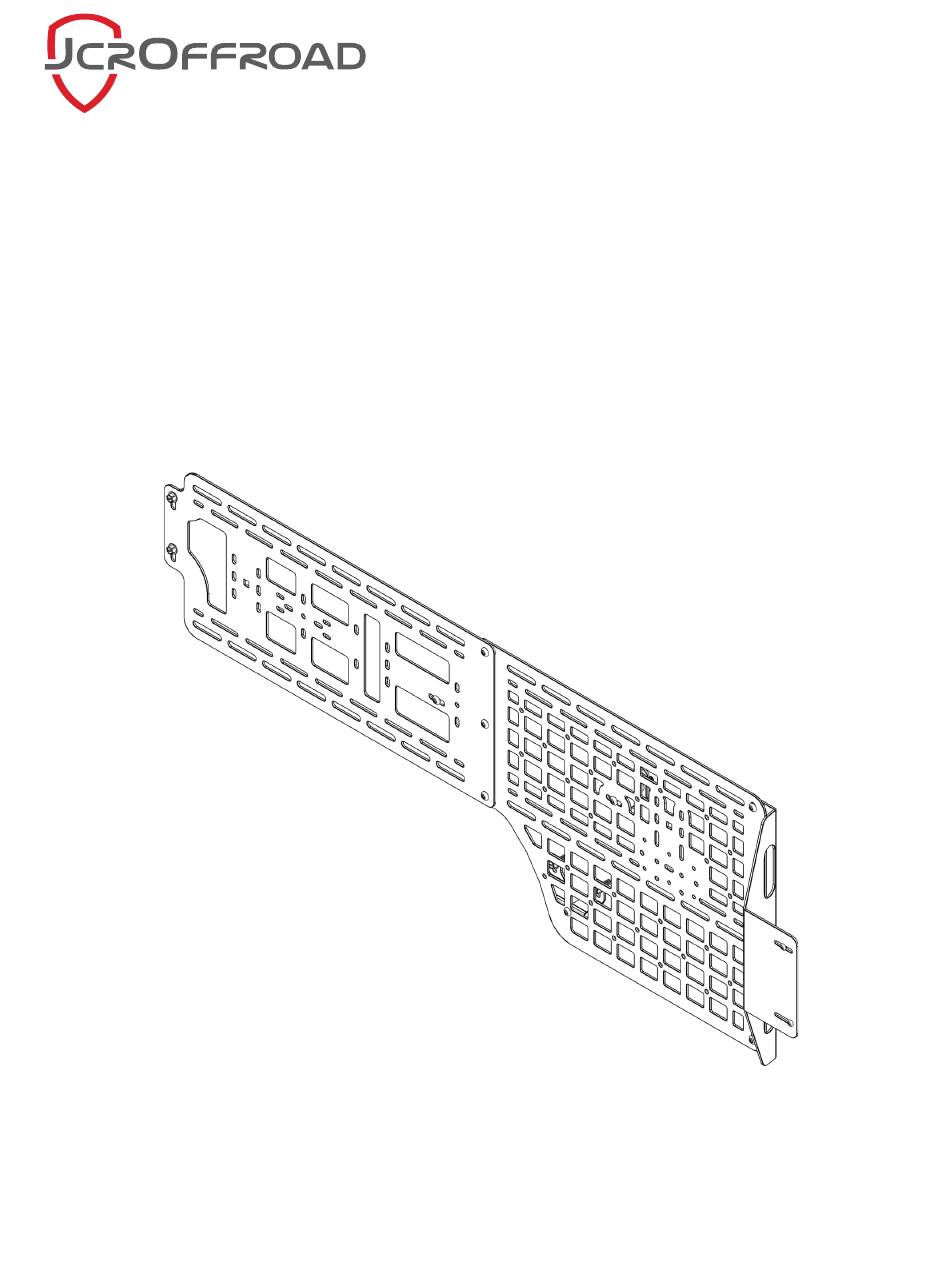

4TH GE N RANG ER
R EA R M O LL E PAN EL
IN S TAL L I NSTRU C TIO NS
Please read the mounting instructions below carefully before attempting to install.
Be sure to check out the install video on the product page, if available.
Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road
products. Be sure to rate and review our product online. If you have any questions or are missing parts, please
don't hesitate to call us at 269-353-1184!
Advertisement
Related Manuals for JCROffroad REAR MOLLE PANEL
Summary of Contents for JCROffroad REAR MOLLE PANEL
- Page 1 Be sure to check out the install video on the product page, if available. Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road products. Be sure to rate and review our product online. If you have any questions or are missing parts, please...
-
Page 2: I Nclu D E D Hardware
I NCLU D E D HARDWARE 5/16”-18 Serr. Flange Nut 5/16”-18 X 5/8" Button Head 3/8”-16 Serr. Flange Nut 3/8”-16 X 1” Button Head 25mm M6 Button Head 25mm M8 Flanged Hex Head... -
Page 3: Included Parts
I NCLU D E D PARTS... - Page 4 AS SE M BLY Start by loosely attaching the two panels as well as the rear bracket using the 5/16”-18 X 5/8” button heads and 5/16”-18 serr. flange nuts. The front panel should sit towards the inside when installed, and the rear panel should sit between the front panel and the bracket.
- Page 5 AS SE M BLY Once the panels are assembled, install the bottom mount into the factory threaded holes using the M8 bolts. The horizontal slot should be towards the ground. If you have a spray in bed-liner, you may need to tap the holes using a M8 X 1.25mm tap.
- Page 6 AS SE M BLY Finally, mount the panels to the bedside and mounts. The front and back mount directly to the bedside using M8 bolts and M6 bolts respectively. If you have a spray in bed-liner, you may need to tap these holes as well. The mounts attach to the panels using 5/16”-18 X 5/8”...
