10 Installing and Using the 4-Port PoweredUSB Hub

2.4.6 Peripheral Cable Connection Options

Figures 10 through 16 provide examples of peripheral cable combinations and connection options
for the 4-Port PoweredUSB Hub. The following table provides details about the CyberData
PoweredUSB Cables displayed in these figures.
PoweredUSB Custom cables of different lengths and colors can be purchased from CyberData as follows:
cable sources
Figure
Figure 2-10
Figure 2-11
Figure 2-12
Figure 2-13
Figure 2-14
Figure 2-15
Figure 2-16
CyberData Corporation
Via email: sales@cyberdata.net
●
Via phone: Sales (831) 373-2601 Extension 334
●
Table 2-1. CyberData PoweredUSB Cables
PoweredUSB Cable Description
12V to 2x4
12V to 12V Power Jack
24V PoweredUSB to 3-Pin Power Mini-DIN
24V to "Y" Cable 3-Pin Power Mini-DIN to USB "B"
12V to "Y" Cable, RS232 and Power Jack
24V to 1x8
24V to "Y" Cable, RS232 and Power Jack

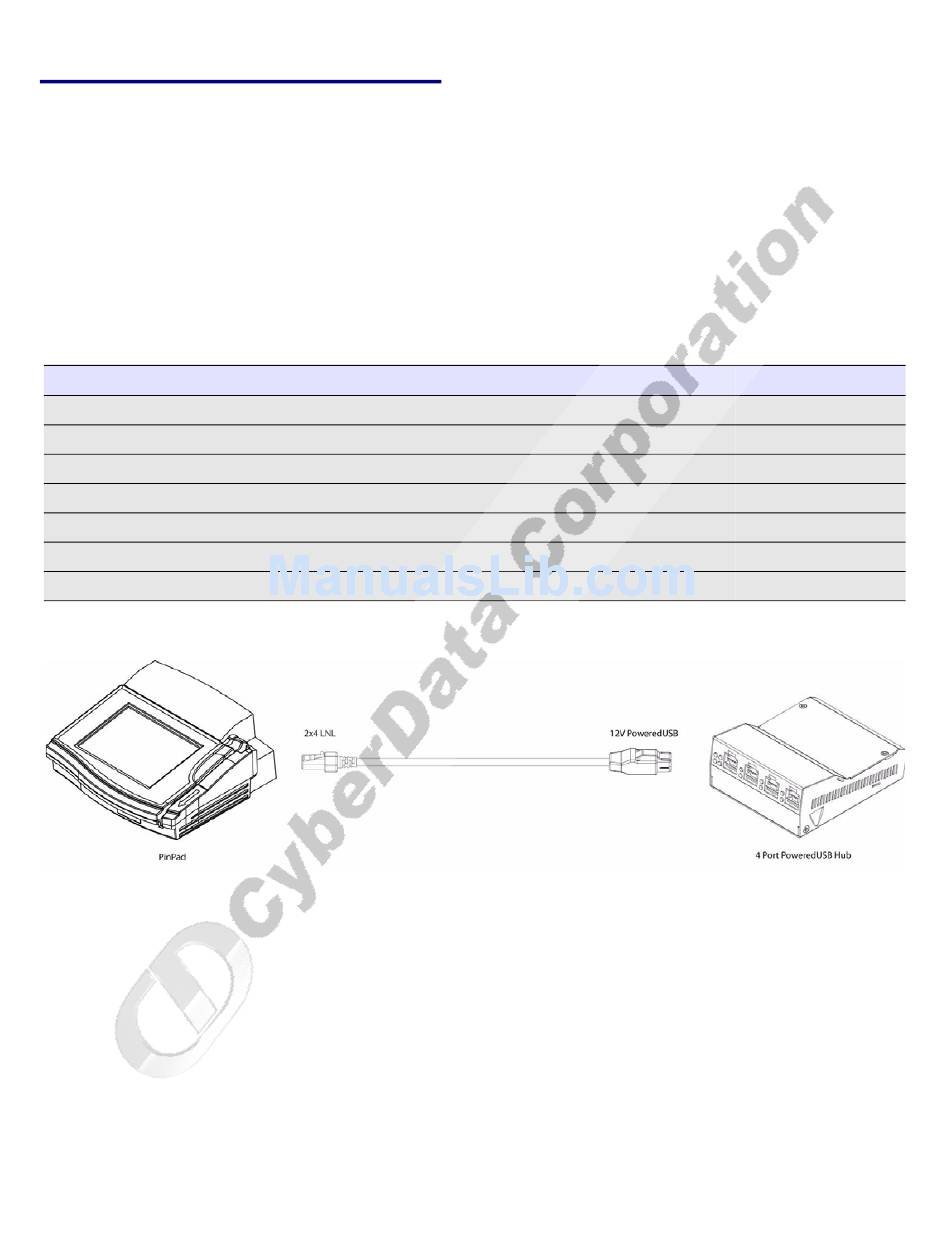

Figure 2-10. Cable, +12V PoweredUSB to 2x4 PoweredUSB
930103D
CyberData Part Number
010693C
Contact CyberData
010631A
010714A
010763
010617A
Operations Guide
