12
Installing and Using the 4-Port PoweredUSB Hub

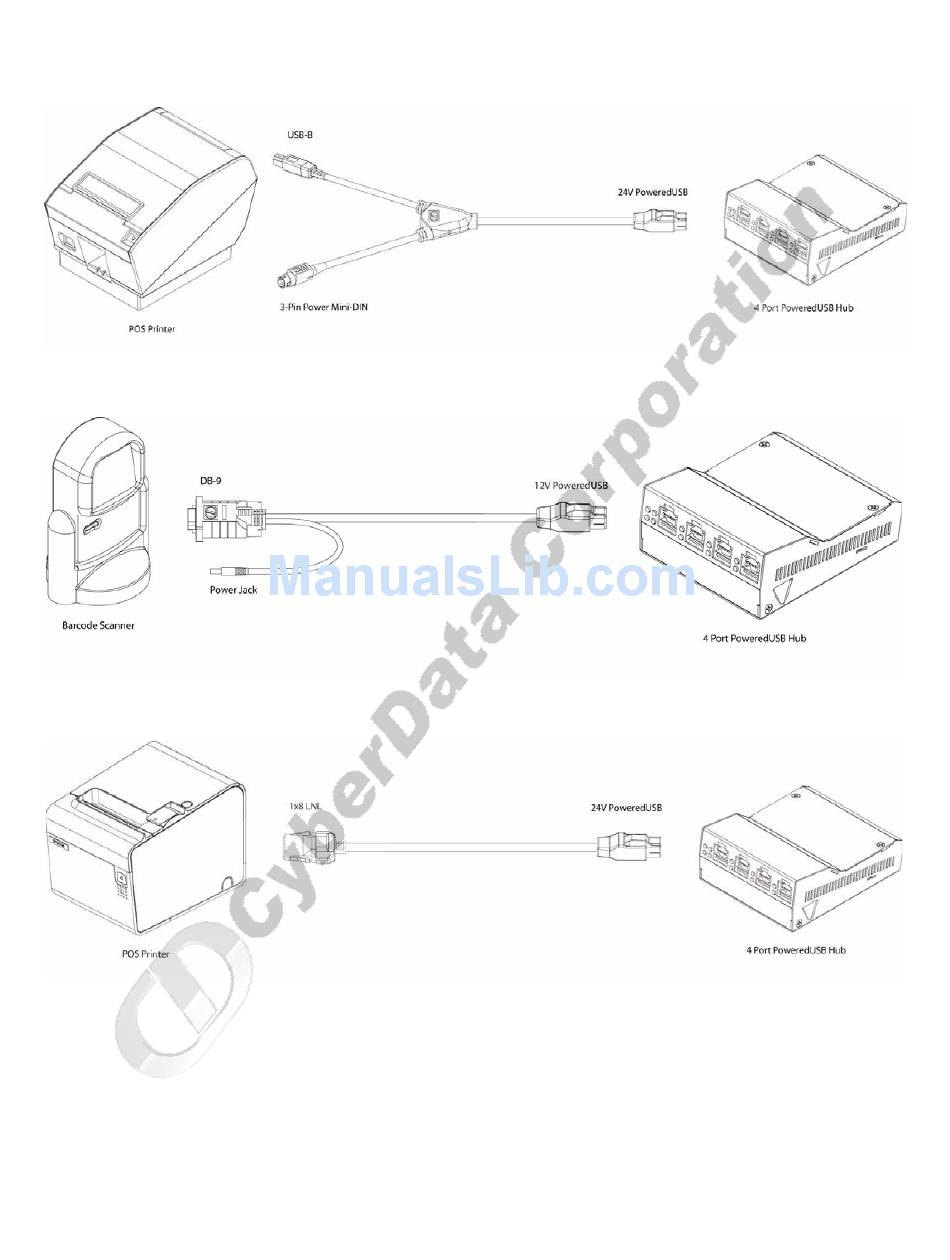

Figure 2-13. "Y" Cable, +24V PoweredUSB to 3-Pin Power Mini-DIN and USB "B" Connectors
Figure 2-14. RS232 to USB Converter "Y" Cable +12V (PC Enumerates this device as an RS-232 COM port)
Figure 2-15. Cable, +24V PoweredUSB to 1x8 PoweredUSB
CyberData Corporation
930103D
Operations Guide
