8
Installing and Using the 4-Port PoweredUSB Hub
CyberData Corporation

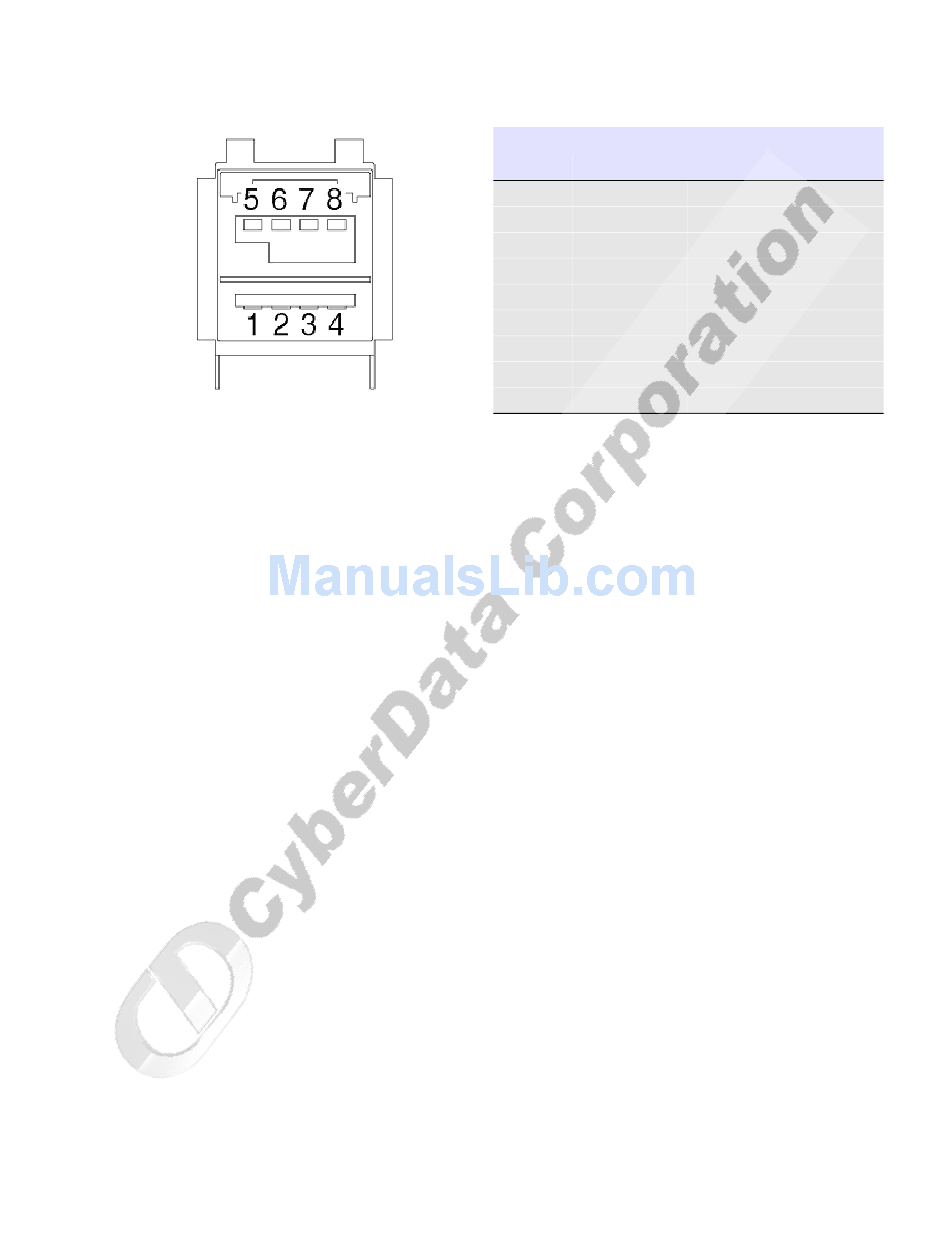

Figure 2-8. USB PoweredUSB Socket Connector Pin Assignments
PIN OUT
Pin
Signal Description
1
Vbus
2
D-
3
D+
4
Ground
5
Ground
6
Vplus
7
Vplus
8
Ground
Shell
Shield
930103D
USB standard "A"
USB standard "A"
USB standard "A"
USB standard "A"
USB PlusPower
USB PlusPower
USB PlusPower
USB PlusPower
Operations Guide
