Electric Flip Down Ceiling TV Mount
Instruction Manual
SKU: MOUNT-E-FD55
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/mount-e-fd55
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo MOUNT-E-FD55
Summary of Contents for Vivo MOUNT-E-FD55
- Page 1 Electric Flip Down Ceiling TV Mount Instruction Manual SKU: MOUNT-E-FD55 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/mount-e-fd55 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 CAUTION! DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us. com, email at help@vivo-us.com, or call us at 309-278-5303.
- Page 3 ASSEMBLY STEPS STEP 1 OPTION B: Concrete Ceiling OPTION A: Wood Ceiling Using ceiling template (C), mark exact location of Using ceiling template (C), mark exact location of mounting holes. Drill pilot holes 2.4” deep, using a mounting holes. Drill pilot holes 2.2” deep using 10mm drill bit.
- Page 4 STEP 2 Remove the two bottom screws from the VESA plate (B) and set aside for later use. OPTIONAL (if mounting a TV with a VESA pattern larger than 200mm x 200mm) Remove the screws from the VESA adapters (E, F). Align the VESA adapters with the VESA plate and assemble, using screws previously removed from the VESA adapters.
- Page 5 STEP 2 (Continued) OPTION B: Curved/Recessed Back TV Align the VESA plate with the mounting holes in the back of the TV screen. Install VESA plate to TV using appropriate screws and washers according to your screen type. STEP 3 Place the VESA plate on the ceiling mount (A) by inserting the attached screw on the VESA plate into the ceiling mount (A) keyhole .
- Page 6 STEP 3 (Continued) Using screws previously removed (in beginning of step 2), fasten the VESA plate to ceiling mount. Clearance between the ceiling and top edge of TV should be no less than 15mm when TV is in the fully lowered position.
- Page 7 STEP 4 Run cables along edge of mount. Allow slack in cables for arm movement. Place covers over cables and snap into place. Using cable ties (I), fasten cables. NOTE: Keep cables clear from arm to avoid damage due to pinching. STEP 5 Plug power adapter (G) into mount, and connect to AC outlet.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
Need help?
Do you have a question about the MOUNT-E-FD55 and is the answer not in the manual?
Questions and answers

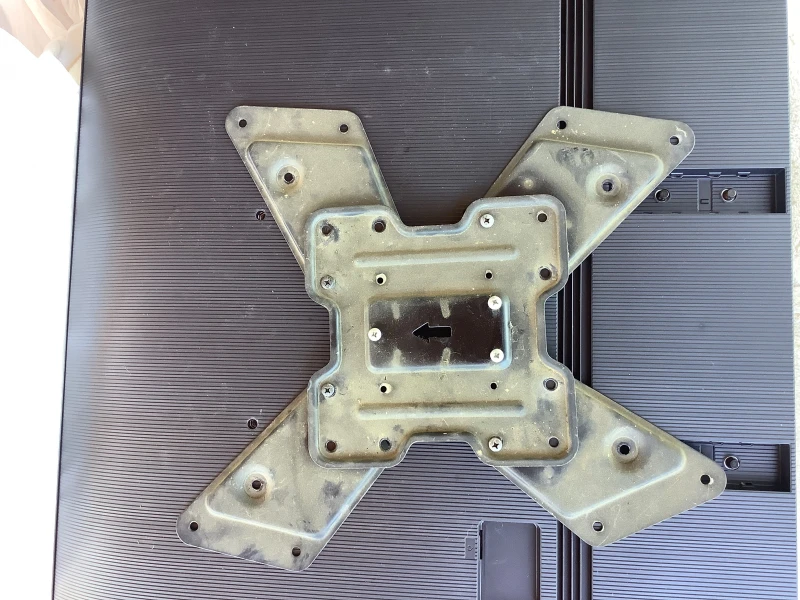

How do I attach ceiling mount to tv with 8 inches apart holes when the mount is 12 inches apart?
To attach the Vivo MOUNT-E-FD55 ceiling mount to a TV with 8-inch hole spacing when the mount has 12-inch hole spacing, you can use a plywood or pine board as an adapter plate:
1. Cut a strong board (e.g. 3/4" thick plywood or pine) wide enough to span the 12-inch hole spacing on the mount and long enough to align with the 8-inch spacing on the TV.
2. Secure the board to the mount using bolts through the 12-inch spaced holes.
3. Drill holes in the board to match the 8-inch spacing of the TV’s VESA holes.
4. Attach the TV to the board using appropriate bolts.
Ensure all screws and bolts are tight and the board is strong enough to support the TV's weight.
This answer is automatically generated
Need Instructions to Reset T. V. VIVO Mount, So T.V. Can Lower Down
To reset the Vivo MOUNT-E-FD55 TV mount to lower the TV, follow these steps:
1. Press and hold the (SET) button for 5 seconds until the LED light on the original remote stays on, then press (OK). The mount will beep once, and the red LED light on the IR receiver will stay on, indicating it has entered LEARN MODE.
2. To adjust the mount to the minimum position (resting against the ceiling), give it a slight push. The mount will automatically return to the minimum position.
3. Once in the minimum position, give it another slight push. The mount will automatically lower to the maximum position.
This process resets the mount and allows it to lower properly.
This answer is automatically generated
The light is on my unit but it does not come down. What can I do to make it work
