en | 6 | Power Xpress™ Dual Bollard Charge Station Installation Guide
WARNING: The EVSE setting cannot exceed
ampacity ratings of field service wires or branch
circuit protectors.
WARNING: See "output" specification label located
on the side of the EVSE for maximum amperage
setting, per limitations of vehicle cable and
coupler.
NOTE: The EVSE must be de-rated to match line service
power limitations.
CAUTION: Use 75°C (600V) approved wire,
conductor temperature at 30°C ambient in wet or
dry locations.
8.0

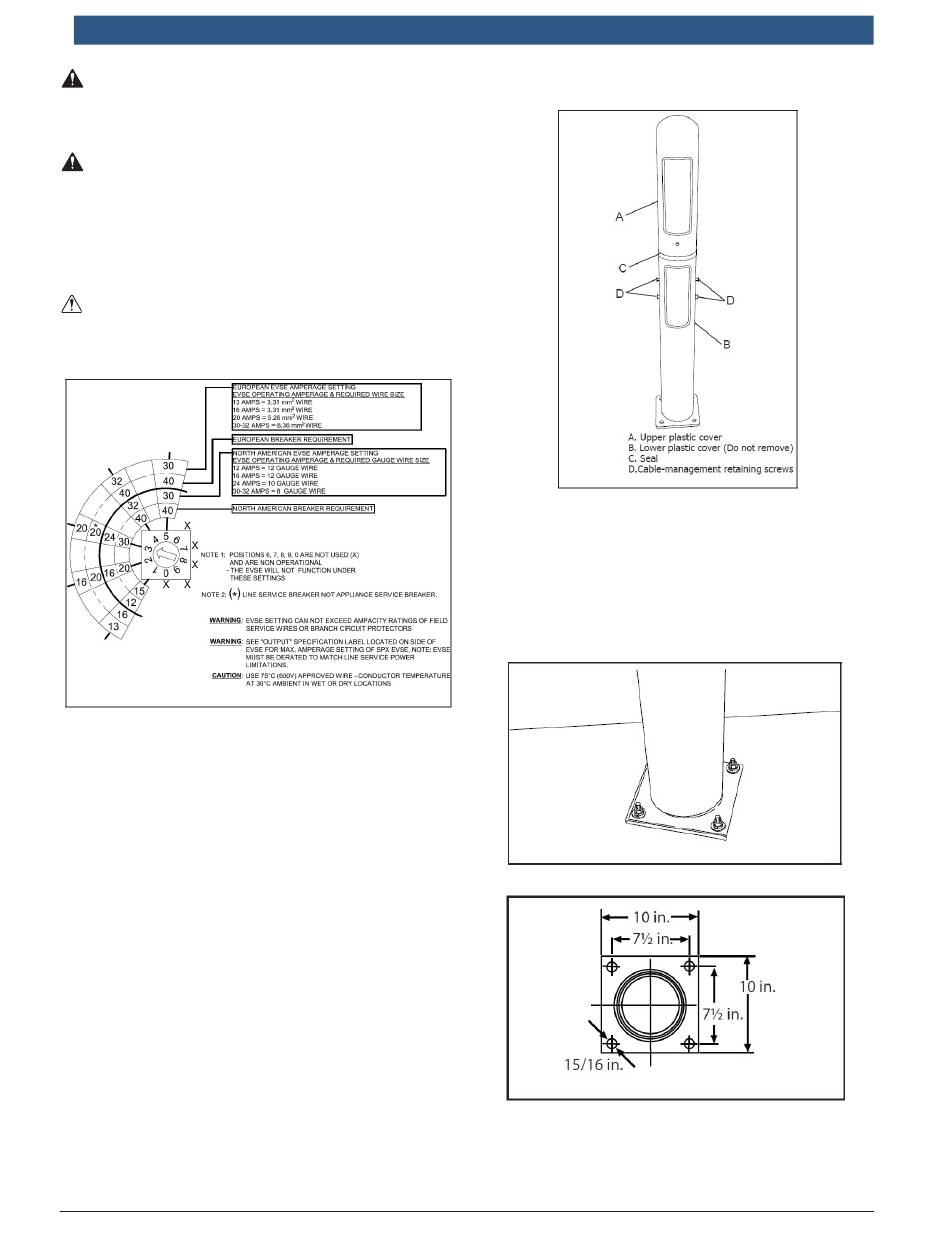

Standard Installation

1. Lay down the bollard box and remove the banding.
2. Lift the top off the box and remove the bollard from the
packaging material.
3. Remove the upper cover from the bollard assembly by
removing the cable-management retaining screws (E) on
the rear of the bollard.
576414 | REV. A | 28.10.2016
4. Remove plastic bag containing locating set screw (not
shown) from inside bollard.
NOTE: The upper and lower plastic bollard covers are a
matched set and cannot be used inter-changeably
with those from other bollards.
The standard installation design for the Power Xpress Bollard is a
bolt-down external plate.
The standard diameter of the bollard is approximately 7 in. The
bollard height will vary with the application.
