en | 1 2 | Power Xpress™ Dual Bollard Charge Station Installation Guide
41. Reinstall strain relief.
NOTE: Select appropriate orientation of insert to achieve
proper clamping for wire size used.
CAUTION: Do not overtighten.

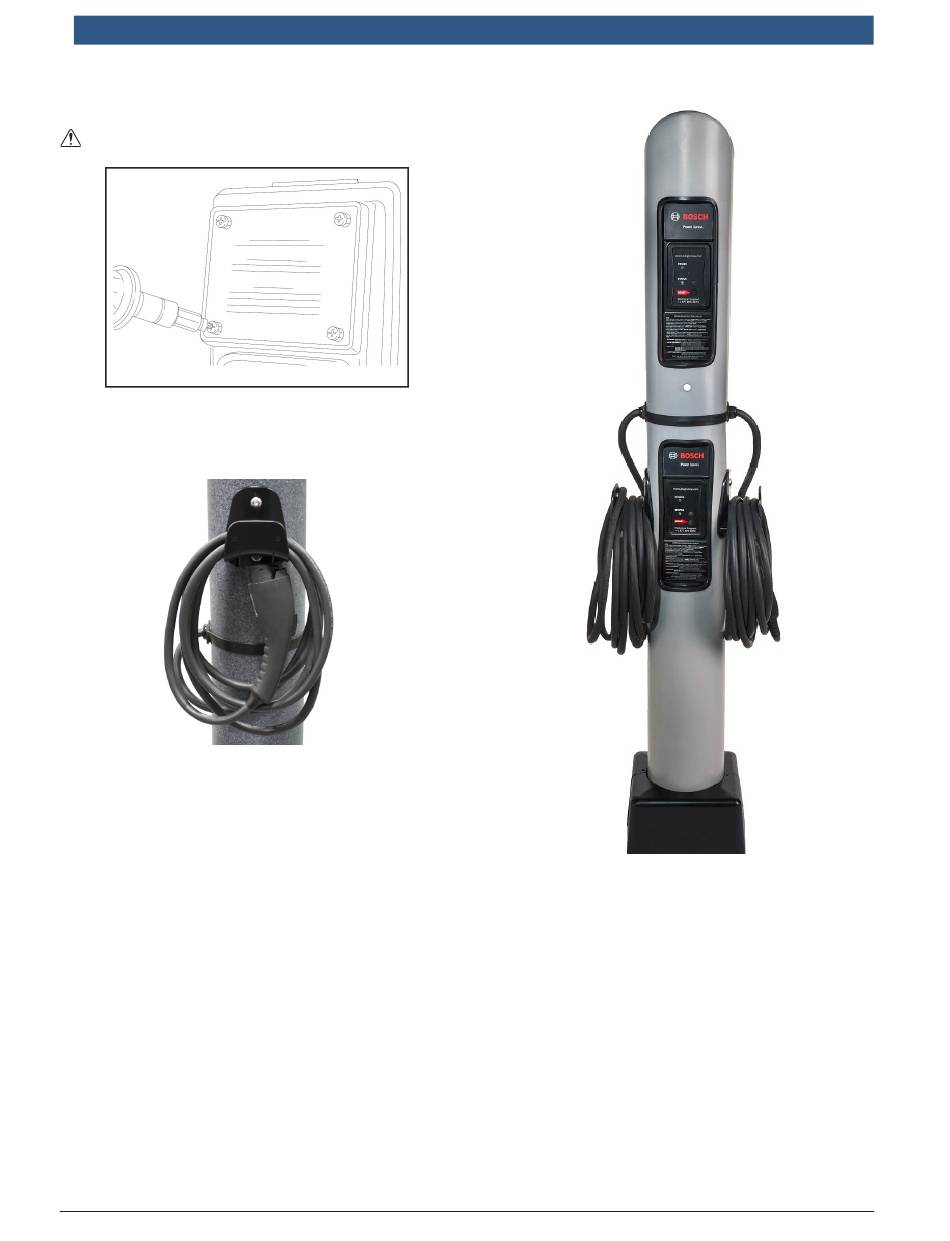

42. Attach the wiring chamber lid with four (4) 3/4 in. (20 mm)
square-drive screws.
43. Apply the self-adhesive chamber lid label.
44. Switch the main circuit breaker to the ON position and
verify that the Power LED is illuminated solid green and the
Status LED is illuminated solid amber on the EVSE.
576414 | REV. A | 28.10.2016
45. Place both halves of the plastic base cover over bollard base.
Secure with plastic push pins
