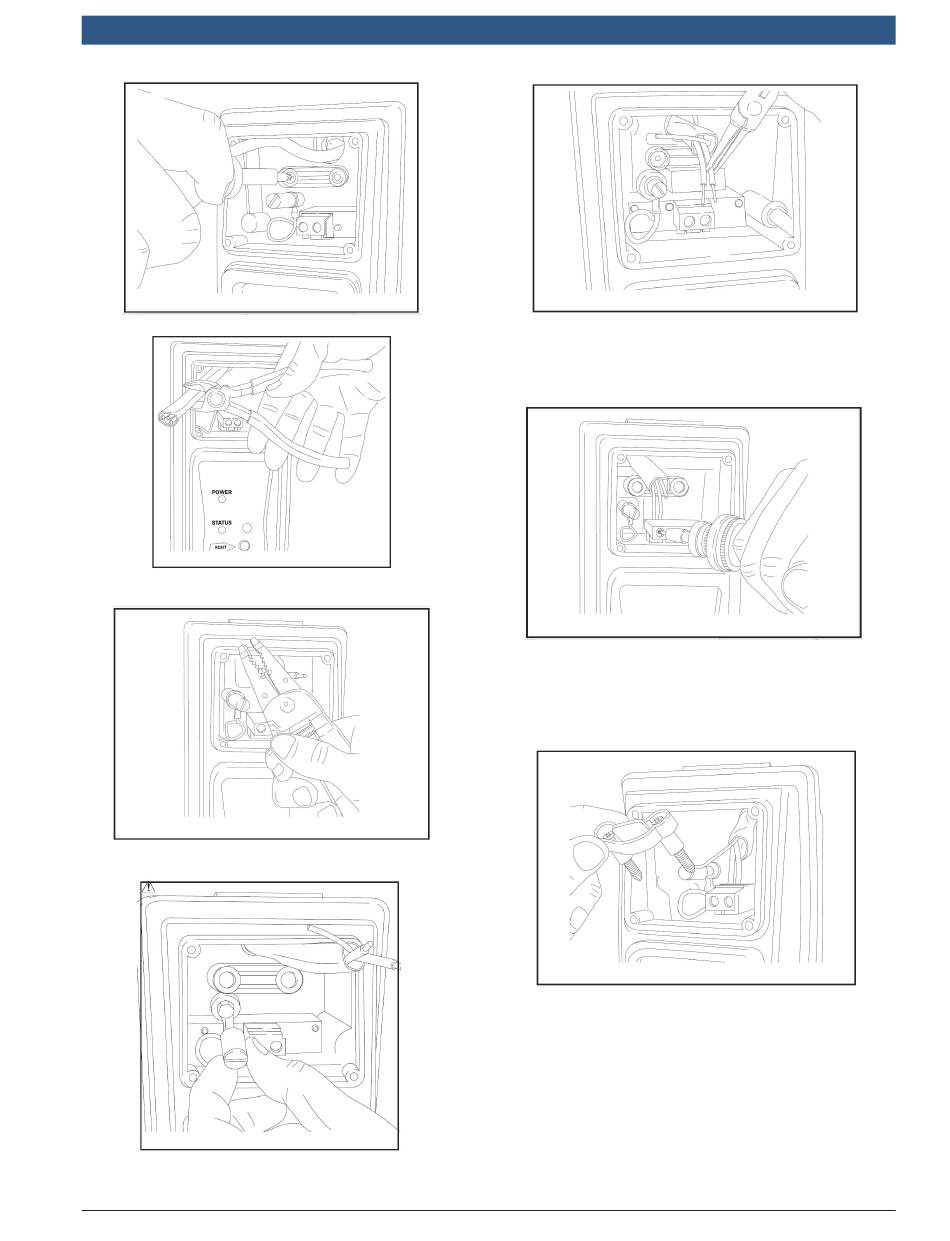

32. Loop the cables onto the cable-management holder.
33. Remove the strain-relief assembly from the wiring chamber.
34. Trim the wire to a length sufficient to make the connections
to the Charge Station terminal block.
35. Strip back 1 1/4 in. (32 mm) of the wire jacket and 3/8 in. (10
mm) from the ends of the individual conductors.
Bosch Automotive Service Solutions Inc.
Power Xpress™ Dual Bollard Charge Station Installation Guide | 11 | en
36. Remove threaded ground lug.
37. Feed the L1 wire into the L1 terminal slot in the wiring
chamber.
38. Feed the L2 wire into the L2 terminal slot in the wiring
chamber.
39. Attach safety ground wire through the slot on the ground
terminal. Hand-tighten grounding lug.
NOTE: See inside of wiring chamber cover for wiring sche-
matic.
40. Tighten terminal screws to 1.2 Nm (10.62 in-lb).
