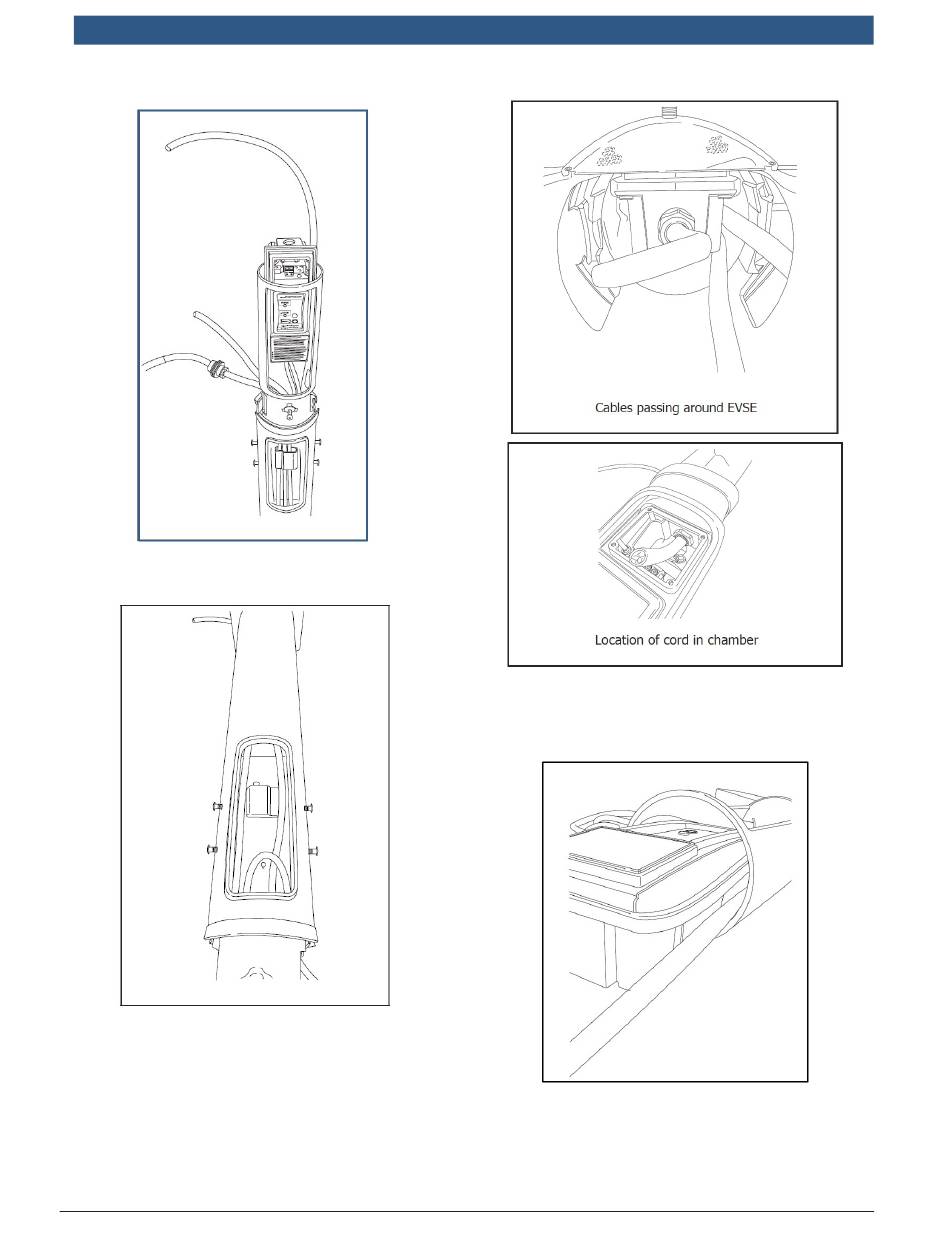

en | 8 | Power Xpress™ Dual Bollard Charge Station Installation Guide
14. Pass the cord for the top unit past the side of the EVSE and
behind the black face.
15. Slide bottom unit into mounting position. Take caution not to
scrape the front surface of the EVSE against the bollard.
Cables and cords will pass by the sides of the EVSE.
576414 | REV. A | 28.10.2016
16. Install cord into top wiring chamber of the bottom unit.
17. Pass the charging cable through the exit hole on the side of
the bollard.
18. Feed the cord past the side of the EVSE and slide into posi-
tion.
