CAUTION: Read all instructions before installing
the EVSE.
WARNING: Main service power must be off and
disconnected before attempting to install the
EVSE.
WARNING: The bollard weighs 20 lb per foot, and
the bottom end is significantly heavier than the
top end. Take proper precautions and use safe
lifting practices when lifting the bollard.

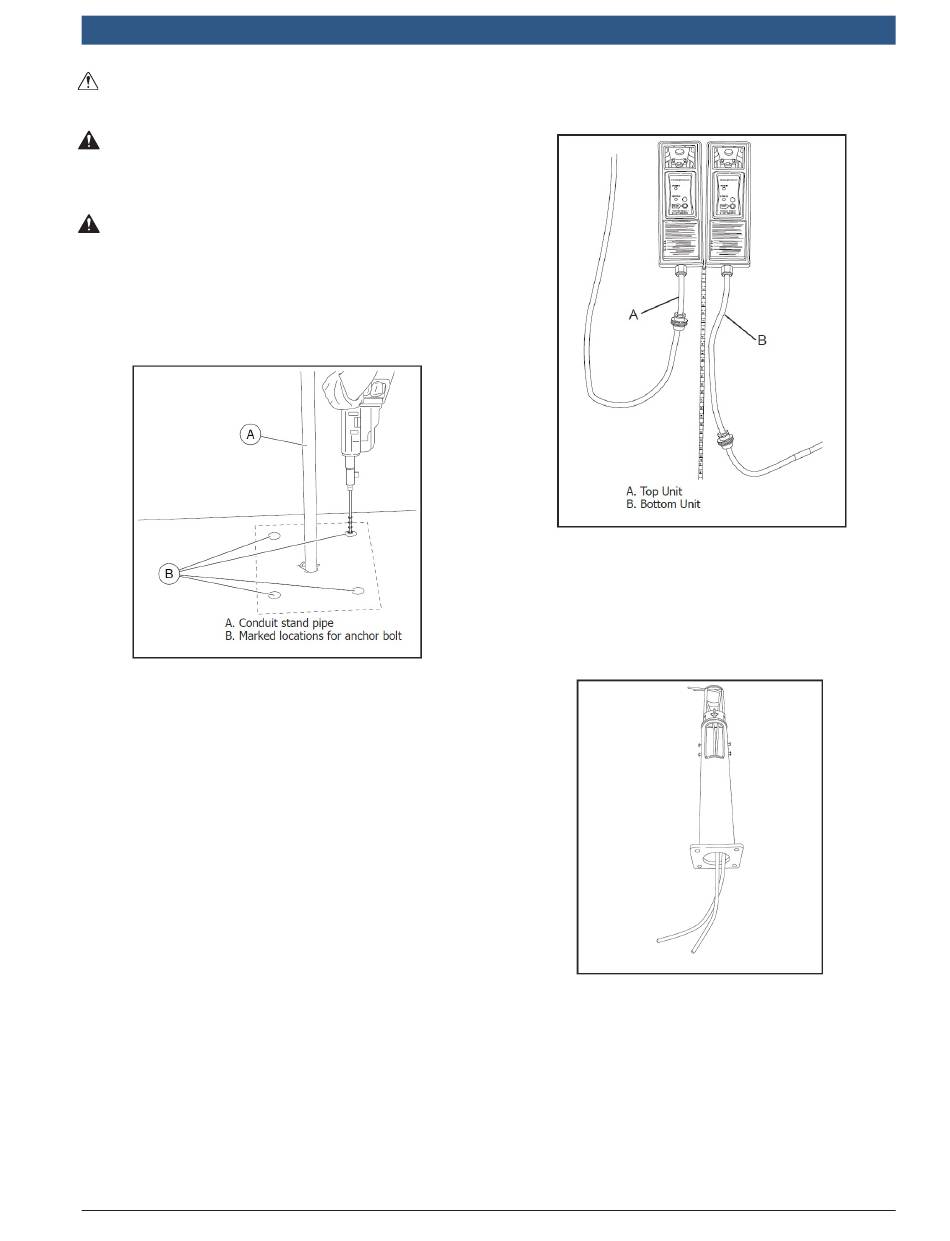

5. Place the bollard where it is to be installed and drill holes.
6. Install the 3/4 in. anchor bolts in accordance with industry
standards for the type of mounting being performed.
NOTE: Adapters may be used to attach junction box to stand
pipe. All adapters and boxes must be suitable for wet
locations.
NOTE: Consult national and local codes for approved service
codes.
Bosch Automotive Service Solutions Inc.
Power Xpress™ Dual Bollard Charge Station Installation Guide | 7 | en
7. Adjust charging cable strain relief to the following locations.
- Top unit - 7 in. from EVSE
- Bottom unit - 24 in. from EVSE
8. Install cable gland in top of wiring chamber.
9. Remove the top plastic cover.
10. Back out fasteners so that they do not extend into the inside
of the bollard.
11. Cut 2 lengths of service cord approximately 6.5 ft. and 8.5 ft.
12. Feed cord through the length of the bollard. Excess should
extend approximately 14 in. past bollard base.
13. Feed the length of the charging cable through the exit hole
in the side of the bollard.
NOTE: Fish tape can be used to pass the service cord
through the bollard and past the EVSE units.
576414 | REV. A | 28.10.2016
