WARNING: The EVSE must be installed by a licensed
electrician in accordance with all national and
local electrical codes, ordinances, requirements
and all authorities having jurisdiction.

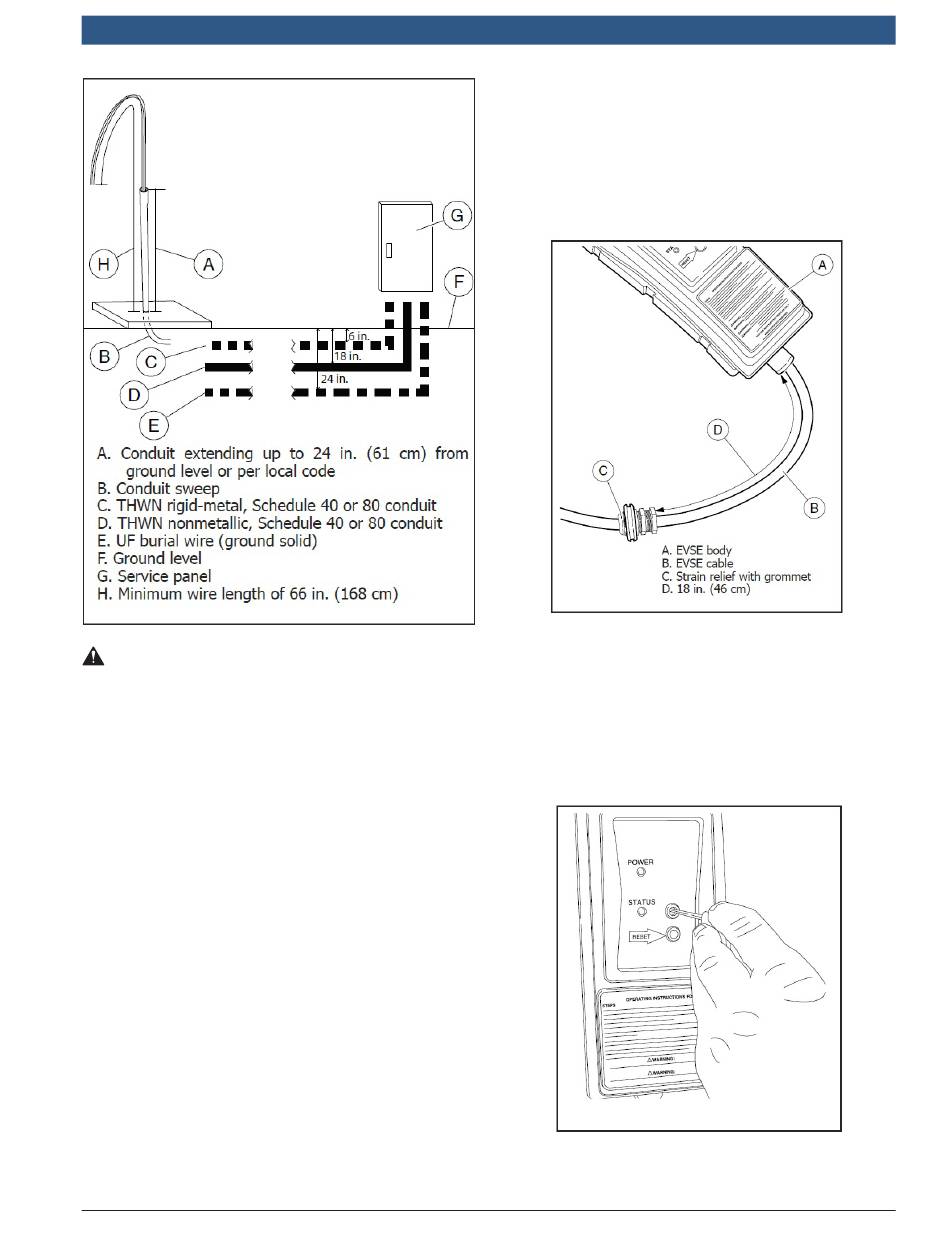

The conduit may extend up to 24 in. (61 cm) from ground level.
The wiring should extend 66 in. from the base mounting of the
bollard. A sweep is used to direct the circuit from the conduit to
the electric circuit from the service panel. The three types of
acceptable wire runs are:
• THWN rigid metal Schedule 40 or 80 conduit, buried 6 in. (15
cm) below ground level, or per local electrical code.
• THWN nonmetallic Schedule 40 or 80 conduit, buried 18 in.
(46 cm) below ground level, or per local electrical code.
• UF burial wire (ground solid), buried 24 in. (61 cm) below
ground level, or per local electrical code.
• Conduit must carry conductors for both charge stations each
on a dedicated circuit breaker..
Bosch Automotive Service Solutions Inc.
Power Xpress™ Dual Bollard Charge Station Installation Guide | 5 | en
7.0 Amperage and Breaker
Parameters: Field Requirements
and Adjustments for EVSE
Installation (Not Required for 40
Amp Circuit Installation)
1. Unpack the EVSE.
NOTE: The EVSE has been factory set at 30 amp output for a 40
amp circuit. Proceed to "Standard Installation" if installing
on a 40 amp circuit. For all other amperages, complete
Steps 2 and 3 for EVSE adjustment.
2. Remove the domed cap from the current-adjustment selec-
tor (positioned just above the reset button on the front of
the EVSE).
3. Using a small, flat-blade screwdriver, set the current-adjust-
ment selector to the applicable output current-limiting
setting.. "
NOTE: Positions 6, 7, 8, 9, 0 are not used (X) and are non-
operational. The EVSE will not function under these
settings.
