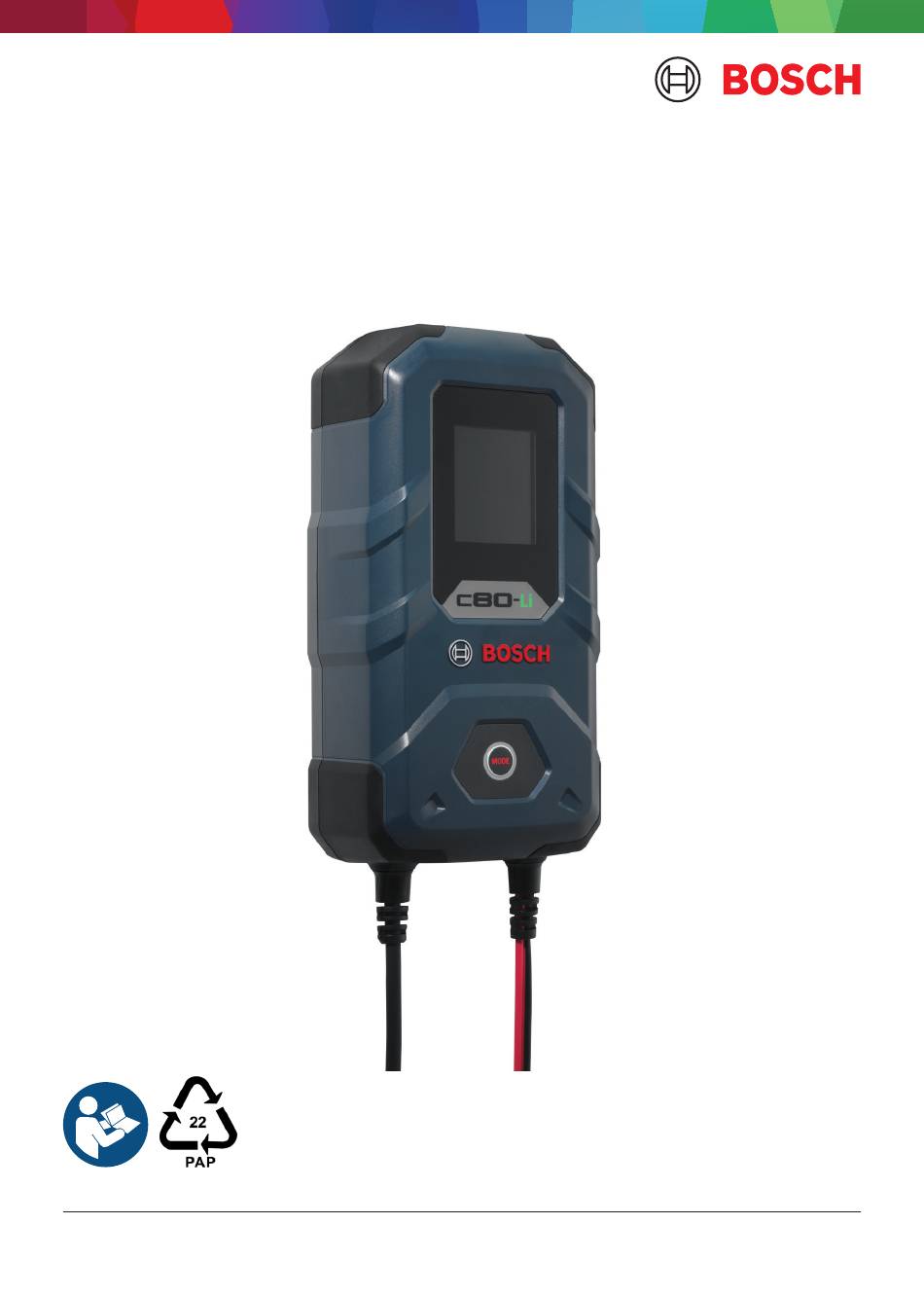

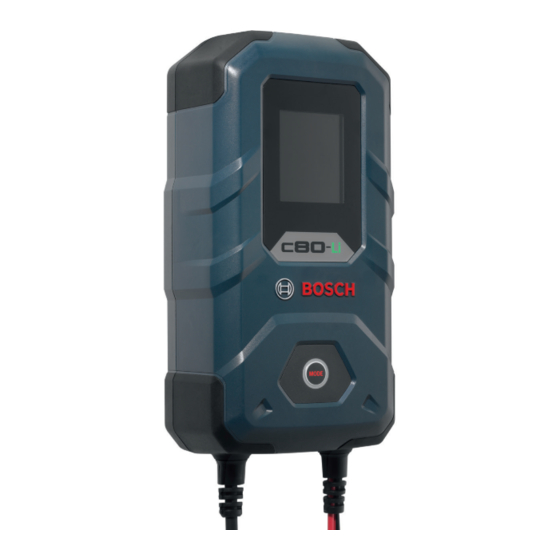

Bosch C80-Li charger
Operating instructions
Article nos.: 0 189 921 080, 0 189 922 080
Robert Bosch GmbH, Automotive Aftermarket, Auf der Breit 4, 76227 Karlsruhe, Germany, www.boschaftermarket.com
DE
EN
FR
IT
ES
PT
TR
AR
PL
HU
EL
DA
NB
SV
NL
RU
CS
RO
HR
SR
MNE
BG
UK
SK
ET
LT
LV
FI
MK
SL
SQ
CN
VI
TH
ID
15.08.23
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bosch C80-Li
Summary of Contents for Bosch C80-Li
- Page 1 Bosch C80-Li charger Operating instructions Article nos.: 0 189 921 080, 0 189 922 080 15.08.23 Robert Bosch GmbH, Automotive Aftermarket, Auf der Breit 4, 76227 Karlsruhe, Germany, www.boschaftermarket.com...
- Page 2 Bedienungsanleitung ..........1-12 Operating instructions ..........13-20 Mode d’emploi ............21-30 Istruzioni d’uso............31-40 Instrucciones de uso ..........41-50 Manual de instruções ..........51-60 Kullanım Kılavuzu ............. 61-69 ..............70-79 Instrukcja obsługi ............. 80-89 Használati utasítás ........... 90-99 Οδηγίες χρήσης ............ 100-109 Betjeningsvejledning ..........
-
Page 3: Device Description
Charger Bosch C80-Li I Operating instructions Device description (18) (13) (11) (6a) (6a) (15) (5a) (5a) (14) (4a) (16) (12) (12) (12) (17) (5b) (19) (20) (21) (10) Reverse polarity protection + - Battery capacity indication Charger Battery capacity: Lo %... -
Page 4: Technical Data
Charger Bosch C80-Li I Operating instructions 1 Technical data Technial Data Input voltage 230 VAC / 50 Hz Starting current < 50 A Rated input current Max. 3 A (rms value) Power input 380 watts Nominal output voltage DC 6 V / 12 V Charging voltage 7.2 V / 14.4 V (±... - Page 5 Charger Bosch C80-Li I Operating instructions 2 Safety Before use your charger, please read all instructions carefully. CAUTION ◾ If the supply cord is damaged, it must be replaced by the manufacturer or its service agent in order to avoid a hazard.
-
Page 6: Operation
Charger Bosch C80-Li I Operating instructions ◾ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 7: Overheating Protection
Charger Bosch C80-Li I Operating instructions Overheating protection If the unit becomes excessively hot during charging, the output power and output current is automatically reduced to avoid damaging the unit. Standby and reverse polarity protection Mode Indication Operating Instructions Key illumination Lights up when turned on and fully charged. - Page 8 Charger Bosch C80-Li I Operating instructions Supporting Battery Mode Output Indication Operating Instructions Types Mode 5 16.5 V Press the button 5 times to Suitable for the Regeneration 1.5 A select Mode 5 regeneration of 12 V Mode2 ◾ 12 V & R icon lights up batteries after short- term extreme discharge.
-
Page 9: Memory Function
Charger Bosch C80-Li I Operating instructions Pulse charging ◾ This is an automatic charger function which cannot be selected manually. ◾ If the 12 V battery voltage in mode 1, 2 & 4 is between 7.5 V (± 0.5 V) and 10.5 V (±... -
Page 10: Device Protection Function
Charger Bosch C80-Li I Operating instructions Device protection function In the event of a short circuit at the charging cable, the fuse (5b) on charging cable prevents damage to the device and the electrical system. 5 Maintenance and care Always unplug the mains connector before cleaning the charger. The device is maintenance-free.
Need help?
Do you have a question about the C80-Li and is the answer not in the manual?
Questions and answers
Здравствуйте , можно ли этим зарядным устройством заряжать кольцевые аккамуляторы ca/ca, или нет?
No, the Bosch C80-Li charger is only suitable for charging 12V LiFePO4 batteries and 6V or 12V lead-acid batteries (including EFB, GEL, AGM, open, and VRLA types). It does not list CA/CA ring batteries as supported.
