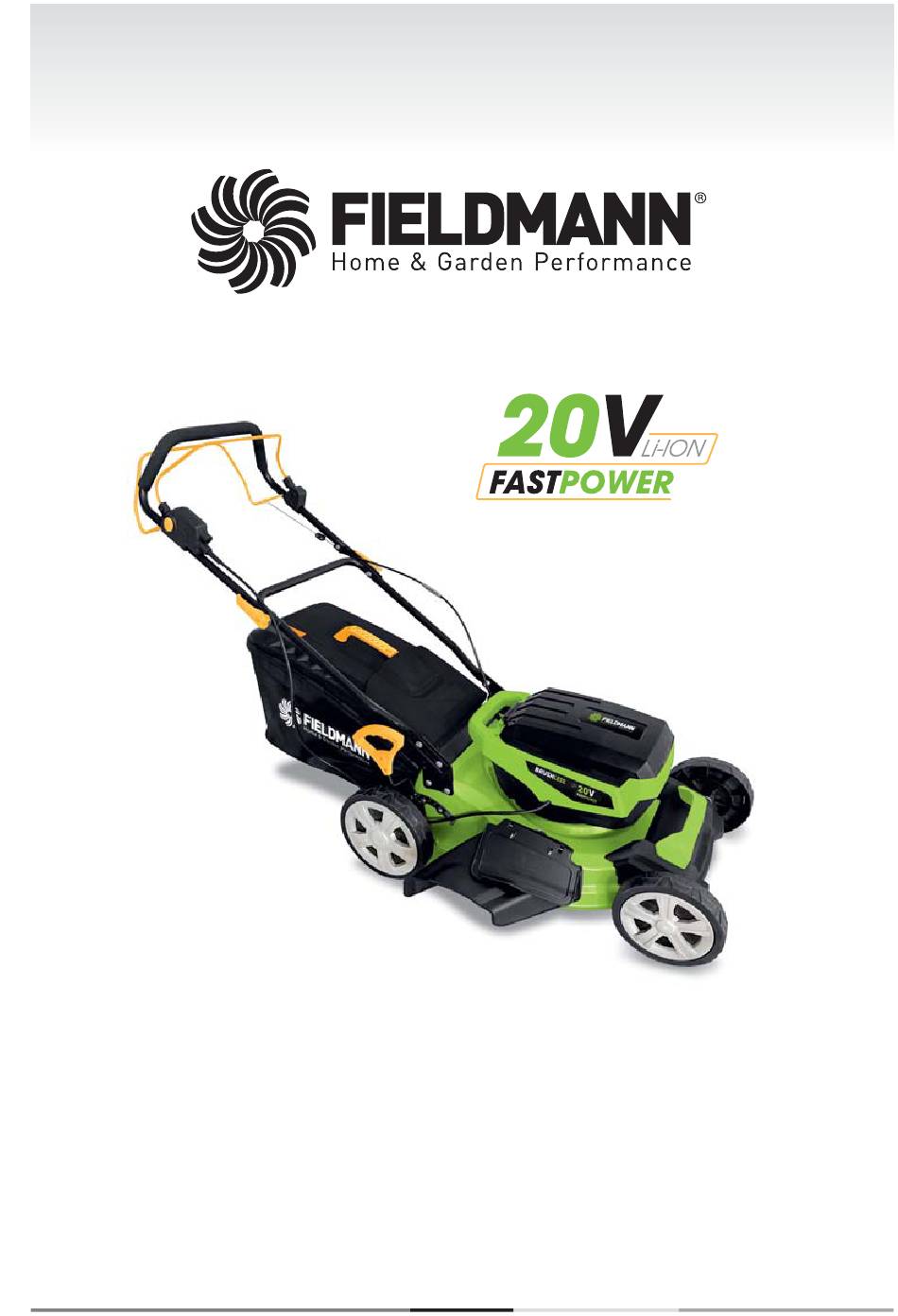

Table of Contents Cordless Lawn mower 460mm INSTRUCTIONS FOR USE Thank you for purchasing this cordless lawn mower. Before you start using it, please read this user manual carefully and save it for future use. TABLE OF CONTENTS 1. GENERAL SAFETY REGULATIONS ..........................4 2. -
Page 4: General Safety Regulations
User manual. The user’s manual also contains operating, maintenance, and repair instructions. The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions. FZR 70465-0... -
Page 5: Symbols
Symbols 2. SYMBOLS Risk of injury due to cutting mechanism! Never reach into the cutting mechanism. Use eye protection. Observe the safety instructions before using the product for the fi rst time. Use ear protection. Keep other persons in distance! WARNING! When operating the device, take care that no other persons are nearby (safe distance: 5m). -
Page 6: Description
• Battery not included in the package, must be purchased separately • Battery charger not included in the package, must be purchased separately Battery pack Display for Battery charger remaining capacity Push button for capacity display Locking button Control lights FZR 70465-0... -
Page 7: Assembly
Assembly 4. ASSEMBLY UNPACKING 1. Unpack all parts and lay them on a fl at, stable surface. 2. Remove all packing materials and shipping devices if applicable. 3. Make sure the delivery contents are complete and free of any damage. If you fi... - Page 8 fi rst use. 4. Open the defl ector guard, hold it in position; Insert the grass catcher (Fig.5). 5. Align and hook the grass catcher into the attachment slots of rear discharge chute. FIG. 4 FIG. 5 FZR 70465-0...
- Page 9 Assembly 5. To use the side chute option, remove the grass catcher (bag) and insert the mulching plate. a) Lift the side chute discharge cover (1) with one hand and hook in the side discharge chute (2) with the other hand (Fig. 5b). b) Release the side discharge cover to secure the chute in position.
-
Page 10: Operation
When mowing high grass, start with the maximum cutting height and make a second cut with a lower cutting height. 1. Press the lever towards the rear wheel (Fig. 9). 2. Move forward or backward to adjust the cutting height. 3. Release the lever and ensure it is engaged in the slot properly. FZR 70465-0... - Page 11 Operation WARNING! Ensure that the lever engages in the slot after each adjustment. Note: There are 6 cutting height levels available. The adjustable heights are 1“ (25 mm) to 3“ (75 mm). FIG. 9 FIG. 10 GRASS CATCHER WARNING! Do not attempt to use the product without the grass catcher attached when collecting grass - danger of fl...
- Page 12 Let the mower cool down and thoroughly inspect the product for damage! Have any damage repaired before restarting! AFTER USE 1. Switch the mower off, disconnect the safety key, remove the battery packs and let them cool down. 2. Check, clean and store as described below. FZR 70465-0...
-
Page 13: Maintenance
Before using the machine, carry out all necessary repairs and maintenance. If, despite regular maintenance, the machine does not work, please contact our customer service, the repair should be carried out by our contractual partner in one of the specialised Fieldmann workshops. REPLACING THE BLADE For this task, we recommend that you contact an authorised service centre. - Page 14 If the blade is cracked or damaged, you must immediately replace it with a new one. 6. Lubricate the blade after each use to prolong the life span of blade and product. Apply light machine oil along the edge of the blade. FZR 70465-0...
- Page 15 Maintenance FIG. 12 GRASS CATCHER 1. Inspect the grass catcher before each use. Do not use it if damaged. 2. Clean the grass catcher after operation using water and mild soap. 3. Let the grass catcher dry thoroughly before storing to avoid mildew. CORDLESS LAWN MOWER USER’S MANUAL...
-
Page 16: Technical Specifications
• Battery (not included in the package, must be purchased separately • Lawn-mower • Battery charger (not included in the package, must be purchased separately) • Handle • Circuit breaker • Collection box • Bag containing small parts FZR 70465-0... -
Page 17: Troubleshooting
Troubleshooting 8. TROUBLESHOOTING DANGER! Risk of injury! Unprofessional repairs may mean that your unit will no longer operate safely. This endangers you and your environment. Malfunctions are often caused by minor faults. You can easily remedy most of these yourself. Please consult the following table before contacting the vendor. -
Page 18: Disposal
This product fulfi ls all basic requirements of the EU directives that apply to it. Text, design and technical specifi cations can change without prior notice and we reserve the right for their change. User manual in the original language. FZR 70465-0... -
Page 19: Declaration Of Conformity
10. DECLARATION OF CONFORMITY EU DECLARATION OF CONFORMITY Product / brand: Battery Lawn Mower / FIELDMANN Type / model: FZR 70465-0 as factory model GY2255 DC 40,0V (battery powered); width 460 mm; Class III; IPX1 = 73,2 dB(A), L = 96 dB(A) Manufacturer: FAST ČR, a.s. - Page 20 FZR 70465-0...
- Page 23 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
- Page 24 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
