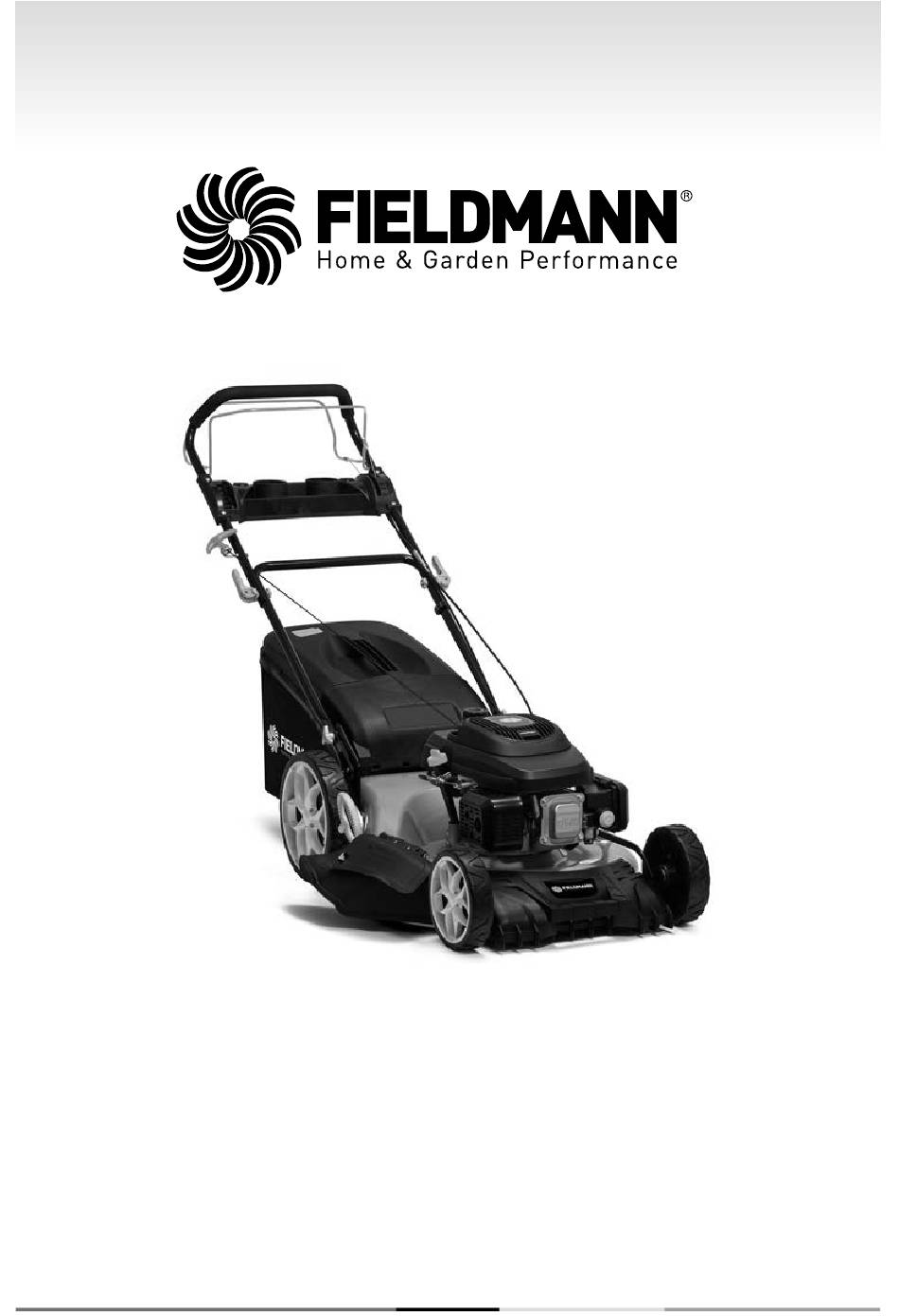

- Page 1 FZR 5611 B...
- Page 2 English ........................................3 - 22 Čeština........................................23 - 42 Slovenština ......................................43 - 62 Magyarul ......................................63 - 80 Polski ......................................81 - 104 FZR 5611 B...
-
Page 3: Table Of Contents
Table of Contents Petrol Lawnmower USER’S MANUAL Thank you for purchasing this rotary petrol lawnmower. Before you start using it, please, carefully read this user’s manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS .........................4 Important safety notice ............................4 Packaging ..................................4 User’s Manual ................................4... -
Page 4: General Safety Instructions
The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZR 5611 B... -
Page 5: Explanation Of Instruction Labels On The Machine
Explanation of instruction labels on the machine 2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE Before putting into operation, please carefully read the user's manual. Keep other persons away from the work area. Attention, rotating blades! Protect yourself against the danger of injury to limbs. Emission of toxic gasses. - Page 6 Always maintain a distance from moving parts. Travel along the slope on contours, not up and down. Conforms to all relevant European directives. Petrol is extremely fl ammable and therefore allow the engine to cool down for 2 minutes before adding more fuel. FZR 5611 B...
-
Page 7: Description Of The Lawnmower
Description of the lawnmower | Assembly/Preparation 3. DESCRIPTION OF THE LAWNMOWER Fig. 1 1. Travel lever 2. Start / brake lever 3. Top part of the handle 4. Quick-release screws 5. Bottom part of the handle 6. Air fi lter cover 7. -
Page 8: Assembling The Lawnmower
(Fig. 2c). Fig . 2b Fig . 2a Fig . 2c 2. INSTALLING THE HANDLE PANEL Attach the plastic handle panel using the included screws (fi g. 3). Fig. 3 FZR 5611 B... -
Page 9: Before Starting The Lawnmower
Assembling the lawnmower | Before starting the lawnmower 3. ASSEMBLING THE GRASS CATCHER Secure the plastic hooks at the end of the textile part of the grass catcher into the steel frame (fi g. 4). Fig. 4 IMPORTANT NOTICE: The grass catcher is equipped with a full indicator. It is a plastic fl ap at the rear of the grass catcher. -
Page 10: Controlling And Operating The Lawnmower
Caution! A small amount of smoke may be emitted when the engine is started up for the fi rst time as the protective layers in the engine are burnt off. This is completely normal and does not constitute a problem. FZR 5611 B... -
Page 11: Controlling Travel
Controlling and operating the lawnmower CONTROLLING TRAVEL The travel is controlled using the travel lever (Fig. 7 – point 1). When the lever is pulled to the handle, the lawnmower will start moving. To stop, release the lever. This lawnmower has one constant speed. Fig. -
Page 12: Mulching
Tighten the screw. The tightening torque is 40 Nm. When replacing the the blade, replace the fastening bolt also. Fig. 10 CHANGING THE MOTOR OIL Caution! For this task, we recommend that you contact an authorised service centre. FZR 5611 B... -
Page 13: Safety Instructions
Controlling and operating the lawnmower | Safety instructions The drain plug is located under the engine Fig. 11 (Fig. 11 – point 1). Place a suitable container for catching the used oil under the engine and remove the plug. Tilt the lawnmower so that all the oil can drain from the oil tank. -
Page 14: Maintenance
It is necessary to always keep in mind that the larger part of grass consists of a stem and one or more leaves. When the leaves are cut off completely, the lawn is damaged and the renewal of growth will be much more diffi cult. FZR 5611 B... -
Page 15: Maintenance
Maintenance The following instructions generally apply: – excessively low mowing causes disruption to the roots and subsequently “spotty” appearance; – in summer, mowing must be higher to prevent the soil from drying out; – mowing wet grass may result in a lower effi ciency of the blade due to grass catching on the blade and grass being ripped out of the ground;... -
Page 16: Service
Screw out the spark plug and pour a small amount of motor oil into the socket. Gently pull the pull cord 2 to 3 times. Use a clean cloth to clean the exterior surfaces. Store the machine in a clean dry location. FZR 5611 B... -
Page 17: Technical Specifications
Technical specifi cations 10. TECHNICAL SPECIFICATIONS Engine XP200 Engine type OHV, air cooled, 4-stroke Rated power 3.5 kW Engine rpm 2900 rpm Displacement 196 cm Starting Pull cord Fuel tank volume 1.0 litres Recommended fuel Petrol - lead-free, at least 95 octane Oil tank volume 0.6 l Recommended oil... -
Page 18: Regular Maintenance Schedule
X(*) General preventative X(*) inspection *entrust this maintenance to an authorized service centre Caution! If the mower is used in arduous or dusty conditions, change the oil and clean the air fi lter at more frequent intervals FZR 5611 B... -
Page 19: Detection And Troubleshooting
Detection and troubleshooting 12. DETECTION AND TROUBLESHOOTING Problem Probable cause Procedures Choke valve damper in wrong position Move the choke lever to the correct position The fuel tank is empty Fill the fuel tank with fuel The air fi lter is dirty Clean the air fi... -
Page 20: Declaration Of Conformity
The relevant harmonised standards and the other technical specifications: EN ISO 5395-1:2013+A1 EN ISO 5395-2:2013+A1+A2 EN ISO 14982:2009 EN ISO 3744:1995 ISO 11094:1991 Place of issuance: Prague Name: Ing. Zdeněk Pech Chairman of the Board Date of issuance: 20. 8. 2019 Signature: FZR 5611 B... -
Page 21: Disposal
Disposal 14. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of used packaging material at a site designated for waste in your municipality. The machine and its accessories are manufactured from various materials, e.g. metal and plastic. - Page 22 Note FZR 5611 B...
- Page 24 Záruční podmínky Záručné podmienky Conditions of guarantee Prodávající poskytuje kupují c ímu na výrobek zá Predávajúci poskytuje kupujúcemu na výrobok This product is warranted for the period of 24 mon ruku trvání 24 měsíců od převzetí výrobku kupu 24 mesiacov záruku od jeho prevzatia kupujúcim. ths from the date of purchase to the end-user.
- Page 25 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
- Page 26 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
