Summary of Contents for Fieldmann FZR 2040-E
-

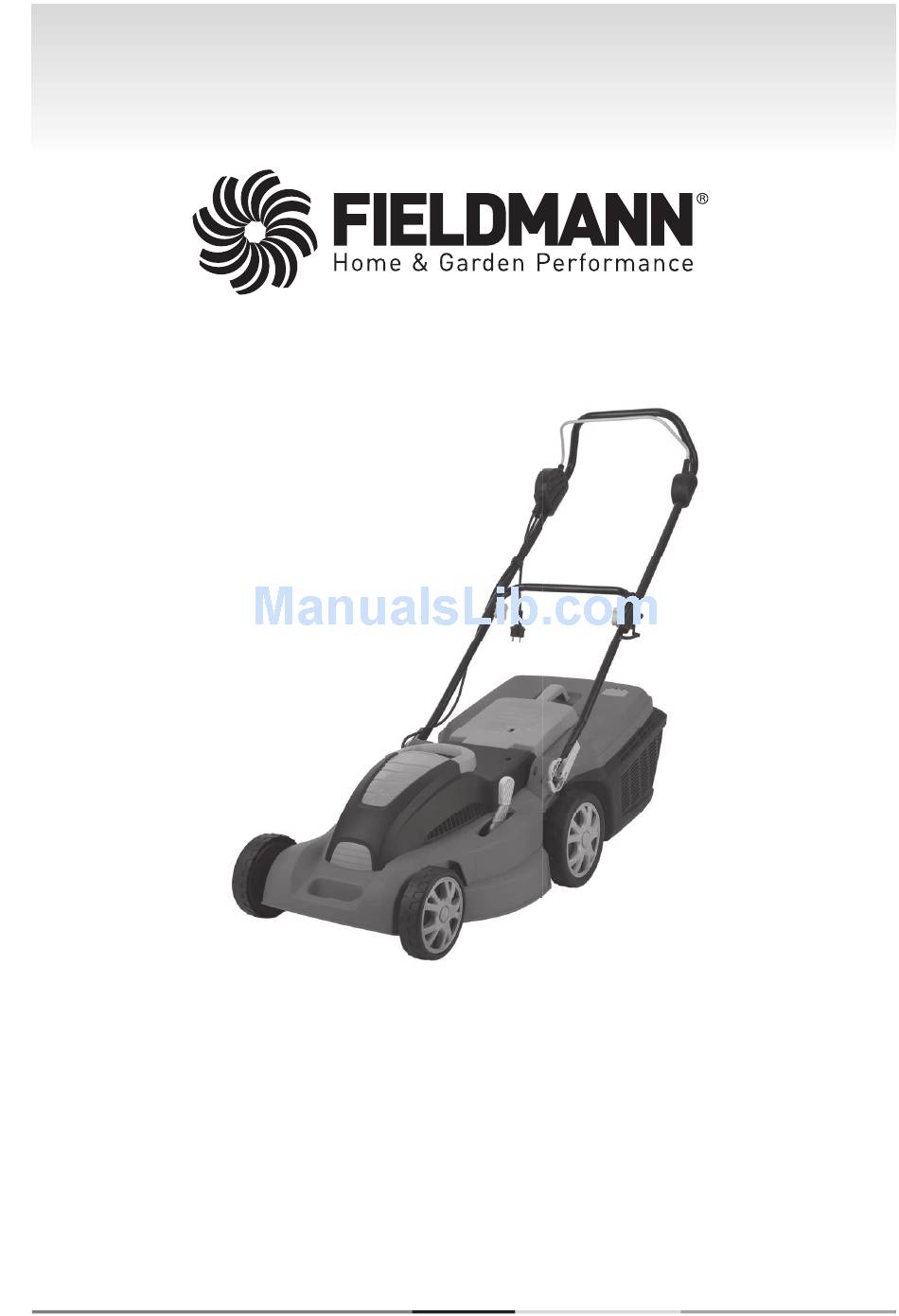

Page 1: Illustrated Attachment
FZR 2040-E... - Page 2 English ........................................1 - 18 Čeština........................................19 - 32 Slovenština ......................................33 - 46 Magyarul ......................................47 - 60 Polski .........................................61 - 73 FZR 2040-E...
- Page 3 ELECTRIC LAWNMOWER USER'S MANUAL...
- Page 4 FZR 2040-E...
-
Page 5: Table Of Contents
Table of Contents Electric Lawnmower USER'S MANUAL Thank you for purchasing this rotary electric lawnmower. Before you start using it, please, carefully read this user's manual and save it for possible future use. TABLE OF CONTENTS ILLUSTRATED ATTACHMENT ............................1 1. GENERAL SAFETY INSTRUCTIONS .........................6 Important safety information ..........................6 Packaging ..................................6 User's Manual ................................6... -
Page 6: General Safety Instructions
The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZR 2040-E... -
Page 7: Symbols
Symbols 2. SYMBOLS Read the manual with the instructions before using this machine. Bystanders must be at a suffi cient distance. Be careful of the sharp blade edges. The blades continue to rotate even after the motor is turned off. Before carrying out maintenance or if the power cord is damaged, disconnect the power plug from the mains. -
Page 8: Description (Fig. 1)
8. Bottom part part of the handle 9. Safety cover 10. Mowing height adjustment lever 11. Transport handle 12. Motor cover 13. Lawnmower chassis 14. Wheels 15. Quick coupling fastening nut 16. Grass catcher 17. Full grass catcher indicator FZR 2040-E... -
Page 9: Fundamentals Of Work Safety
Fundamentals of work safety 4. FUNDAMENTALS OF WORK SAFETY Never use the machine if the power cord is damaged or visibly worn out. In the event that you connect the lawnmower using a damaged power cord to a power source and then touch the place that is uninsulated before the lawnmower is disconnected from the power source, you subject yourself to a risk of injury by electrical shock. -
Page 10: Before You Start Using The Lawnmower
OPERATION Only operate the machine during daylight hours or under suffi cient artifi cial lighting. If possible, do not mow wet grass. Make sure that during work you always have fi rm support and a secure stance. FZR 2040-E... -
Page 11: Maintenance And Storage
Fundamentals of work safety Do not run when pushing the mower but rather walk at a normal pace. The following general rules apply for work with the lawnmower: When mowing vegetation on a slope, one does not move up and down but always along the contours, i.e. horizontally perpendicular to the incline of the slope. -
Page 12: Assembly
5.3 EXTENSION CORD / SECURING THE POWER CORD Insert the plug of the lawnmower into the socket on the power cord. To prevent the power cord from disconnecting during operation, guide the power cord through the power cord holder. See Fig. 3. FZR 2040-E... -
Page 13: Operation
Operation 6. OPERATION 6.1 SETTING THE MOWING HEIGHT ! Before setting the mowing height, always make sure that the lawnmower is turned off and the blade is not moving. CAUTION: The blade will rotate several seconds after the lawnmower is turned off. A rotating blade may cause injuries. -
Page 14: Technical Specifications
LpA (acoustic pressure) 75.0 dB (A) LwA (acoustic power level) 95.0 dB (A) Guaranteed emission level of acoustic power (LWA max) in accordance with the Noise Level Directive 2000/14: LwA MAX 96 dB (A) Vibrations: < 30 m/s² FZR 2040-E... -
Page 15: Maintenance
In the event that despite regular maintenance the machine does not work, please contact our customer service, the potential repair should be carried out by our contractual partner in one of the specialised workshops of the Fieldmann brand. 8.1 BLADE REPLACEMENT For this task, we recommend that you contact an authorised service centre. -
Page 16: Ce Declaration Of Conformity
Manufacturer: FAST ČR, a. s. Černokostelecká 2111, 100 00 Prague 10, Czech Republic Tax ID number: CZ26726548 Product/brand: LAWNMOWER / FIELDMANN Type/model: FZR 2040 E 230 V, 1 800 W, 50 Hz, Class II This product meets the directives below: ES Directive No. -
Page 17: Disposal
Disposal 10. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of used packaging material at a site designated for waste in your municipality. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. - Page 18 Notes FZR 2040-E...
