FireProtect 2 (Heat/Smoke) Jeweller User
manual
Updated January 12, 2023

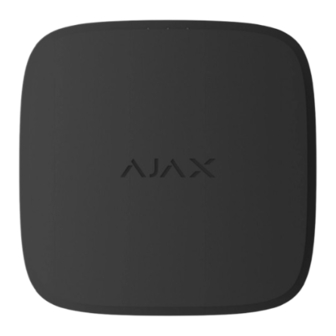

FireProtect 2 (Heat/Smoke) Jeweller is a wireless re detector with a built-in
siren. Intended for indoor installation. Detects smoke and temperature rise.
It is available in two modi cations: with sealed batteries (has SB in the name)
that run up to 10 years, and with replaceable ones (has RB in the name) that run
up to 7 years.
A list of compatible hubs and range extenders is
available here
.
The detector operates as part of the Ajax security system, communicating with
the hub via the
Jeweller
secure radio protocol. The hub communication range is
up to 1,700 meters without obstacles.
Buy FireProtect 2 (Heat/Smoke)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FireProtect 2 and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX FireProtect 2

Summary of Contents for AJAX FireProtect 2

  • Page 1 Updated January 12, 2023 FireProtect 2 (Heat/Smoke) Jeweller is a wireless re detector with a built-in siren. Intended for indoor installation. Detects smoke and temperature rise. It is available in two modi cations: with sealed batteries (has SB in the name) that run up to 10 years, and with replaceable ones (has RB in the name) that run up to 7 years.

  • Page 2: Functional Elements

    Versions of the detector with other sensor combinations are also available. All Ajax re detectors are available here Functional elements 1. The front panel of the detector with a Test/Mute button . To activate the button, press the central part of the panel.

  • Page 3: Operating Principle

    Operating principle 00:00 00:12 FireProtect 2 (Heat/Smoke) is a wireless re detector designed for indoor installation. Available in two modi cations: With sealed batteries. Such a detector has SB in its name. Sealed battery life is 10 years. After the batteries are discharged, the detector should be replaced with a new one.

  • Page 4: Smoke Sensor

    Operation without a hub FireProtect 2 can be used without connecting to the Ajax hub. All you need is to install the detector following this manual and turn it on. In case of autonomous operation, the detector noti es of re with a built-in siren and LED indication only and does not send noti cations to the user’s...

  • Page 5: Temperature Sensor

    The smoke chamber in FireProtect 2 is protected from dust, dirt, and insects. Even if dust gets inside and settles, this does not threaten or impair re detection.
  • Page 6 Which CMSs Ajax connects to Addressability of Ajax devices allows you to send to the PRO Desktop and to the CMS not only events but also the type of the device, the name given to it, virtual room, and security group. The list of transmitted parameters may differ depending on the CMS type and the selected communication protocol.

  • Page 7: Adding To The System

    4. Make sure that the hub is on and has Internet access via Ethernet, Wi-Fi, and/or mobile network. You can do this in the Ajax app or by looking at the LED indicator of the hub: it should light up white or green.
  • Page 8 FireProtect 2 works with only one hub. When connected to a new hub, the detector stops transmitting data to the old hub. Once added to a new hub, FireProtect 2 is not removed from the list of devices of the old hub. This must be done manually in Ajax apps.
  • Page 9 Alarm by: Also, you can mute the alarm by pressing smoke; Test/Mute The siren beeps in button rapid temperature or in the Ajax The red LED blinks time with the LED rise; app. continuously. indication. temperature The LED and sound...
  • Page 10 All malfunctions are 2 times in a row every times in time with the detected. displayed in the minute. LED indication every States detector minute. Ajax apps. Fields with malfunctions are highlighted in red. If the detector needs to be repaired, contact...
  • Page 11 Low battery charge one after the batteries once per minute. indication once per level. are discharged. minute. How to replace FireProtect 2 RB batteries (Heat/Smoke) You can replace batteries in a detector with replaceable batteries only (has RB in its name). A...

  • Page 12: Detector Testing

    The test allows you to check the status of the detector’s sensors. You can run it in two ways: by pressing the detector Test/Mute button and in Ajax apps. If the detector is in an alarm state, the self-test is not available.
  • Page 13 Testing at the place of installation Ajax security system provides several tests to select the correct installation place of devices. Jeweller Signal Strength Test is available for FireProtect 2. The test determines the strength and stability of the signal at the intended location of the device.
  • Page 14 Jeweller (or Jeweller/Fibra) menu in the hub settings. Icons The icons show some detector states. You can view them in Ajax app in the Devices tab. Icon Meaning Jeweller signal strength between the detector and the hub or the radio signal range extender.
  • Page 15 You can see FireProtect 2 (Heat/Smoke) states in Ajax apps. To access them: 1. Open the Ajax app. 2. Select a hub if you have several of them or if you are using the Ajax PRO app. 3. Go to the Devices tab.
  • Page 16 When a temperature rise or threshold exceeding is detected, the eld highlights red and displays the High Temperature text. Jeweller signal strength between FireProtect 2 and the hub or radio signal range extender. The recommended value is two or three bars.
  • Page 17 How to replace FireProtect 2 RB batteries (Heat/Smoke) The state of the detector’s tamper that responds to detachment of the device from the surface or opening of the enclosure: Open — the detector is removed from the SmartBracket mounting panel, or the enclosure integrity is violated in another way.
  • Page 18 QR code and on the packaging box. The number of FireProtect 2 loop (zone). Events Device No are sent to the CMS with this number. Settings To change FireProtect 2 (Heat/Smoke) settings in the Ajax app: 1. Open the Ajax app.
  • Page 19 To change the name, click on the text eld. The name can contain up to 12 Cyrillic characters or up to 24 Latin characters. Selecting the virtual room to which FireProtect 2 is assigned. The room name is displayed in the text of SMS Room and noti cations in the events feed.

  • Page 20: Selection Of Installation Place

    The recommended value is two or three bars. Learn more Runs a detector self-test. Device Self-test Learn more Opens FireProtect 2 User Manual in the Ajax User Guide app. Allows to temporarily deactivate the device without removing it from the system. Three options are available: No —...
  • Page 21 The detector is designed for indoor installation only. The coverage area of one FireProtect 2 (Heat/Smoke) is 50 to 60 m², depending on the type of premises. The detector should be installed in every room. The detector is placed in the center of the ceiling at a distance of 30 cm from light xtures, chandeliers, or any other decorative objects that may interfere with alarm detection.

  • Page 22: Signal Strength

    Presence of barriers for radio signal passage between devices: oor slabs, walls, inter oor ceilings, large objects located in the premise. Consider the placement recommendations when designing the project of Ajax security system for the object. The security system must be designed and installed by specialists.

  • Page 23: Installation

    For example, in a garage, where the possibility of a detector‘s alarm due to vehicle exhaust gases exists. For such premises, we recommend using a detector without a smoke sensor: FireProtect 2 (Heat/CO) 9. In very dusty areas or places with a lot of insects. Insects, dust, and other contaminants can settle on the smoke chamber lid and prevent re detection.
  • Page 24 To install the detector: 1. Remove the SmartBracket mounting panel from the detector. To remove the panel, turn it counterclockwise. 2. Fix the SmartBracket mounting panel to a surface using double-sided adhesive tape or other temporary fasteners. The mounting panel has the UP sign, which indicates the correct position.

  • Page 25: Maintenance

    If FireProtect 2 malfunction is detected (for example, there is no connection with the hub), the malfunction counter is displayed in the device eld in the Ajax apps. All malfunctions are displayed in the detector States . Fields with malfunctions are highlighted in red.

  • Page 26: Technical Speci Cations

    7 years. When the batteries are discharged, replace them with new ones. How to replace FireProtect 2 RB batteries (Heat/Smoke) A detector with sealed batteries (has SB in the name) should be replaced with a new one after the batteries are discharged.

  • Page 27: Warranty

    Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical Support rst. Iwe recommend that you rst contact the support service: in most cases, technical issues can be resolved remotely.
