Summary of Contents for Akuvox MD06

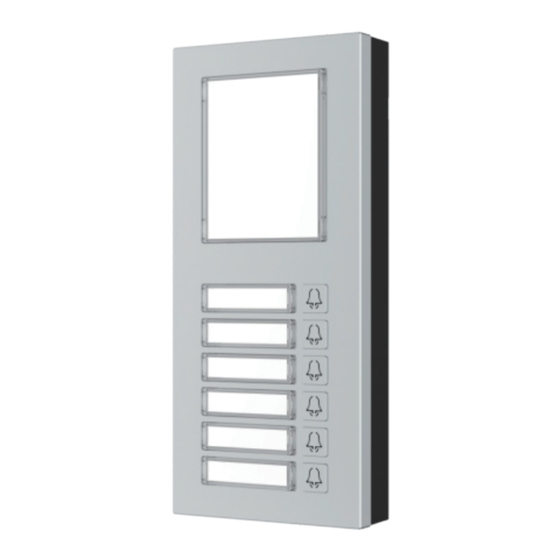

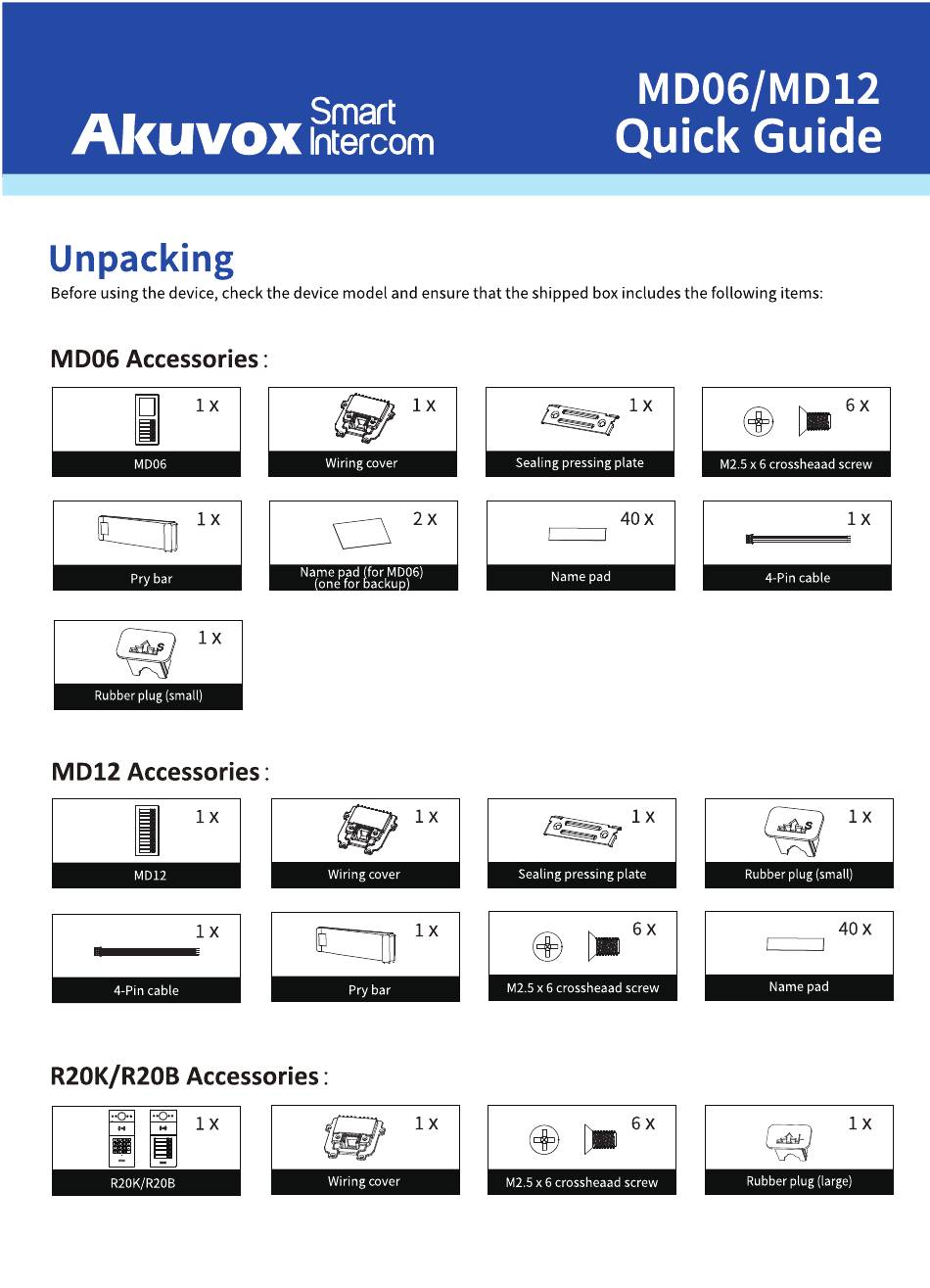

- Page 2 MD06/MD12 Dual-unit Device Accessories： Torx Triple-unit device Accessories： M4x15 Torx head screw...
-
Page 3: Before You Start
MD06/MD12 Before You Start Tools needed (not included in shipped box) Cat Ethernet Cable Crosshead Screwdriver Electric Drill Voltage and Current Specifications It is suggested that use 12-24VDC 0.1A power adapter to power on device. AWG Sizes and Properties Table... - Page 4 5.Use wet cloth clean device surface softly, and then wipe the surface with dry cloth for cleaning the device. 6.If there is abnormal situation of the device, including uncommon sound and smell, please power off the device and contact Akuvox Technical Team immediately. Wiring Interface...
-
Page 7: Step2: Main Unit Installation
Make cables go through the wiring cover, connecting to the corresponding interfaces as needed (for details, refer to "Wiring Interface"). Fasten rubber plug (M) to R20K/B device and rubber plug (S) to MD06 and MD12 device for securing cables. Fasten sealing pressing plate with two M2.5x6 crosshead screws. - Page 9 MD06/MD12 Remove the box and use a 6mm electric drill to make holes on the marked position. Insert four plastic wall anchors into holes. Lead wires go through the cable holes. Press the flush-mounting box into the square hole, ensuring that the edges closely against the wall.
- Page 10 fill the gaps around with waterproof material. The flush-mounting box installation is done. Step2: Main Unit Installation Combine R20K/R20B and MD06/MD12 with the flush-mounting bracket according to the direction indicated in the drawing. Use eight M3x6.8 wall-mounting screws to fasten devices.
