Summary of Contents for Akuvox R27A

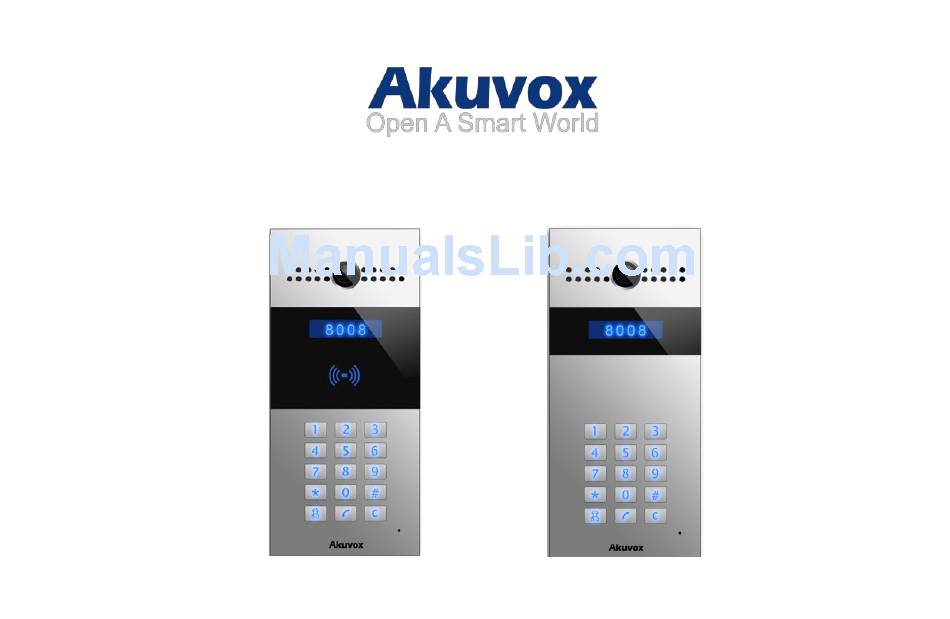

- Page 1 R27 Series Door Phone User Manual R27A R27C...
-
Page 2: About This Manual
About this manual Thank you for choosing Akuvox’s R27A /C door phone. This manual is intended for end users, who need to use and configure the door phone. It provides an overview of the most essential functions and features of the product, whose firmware version is 27.0.2.170. -
Page 3: Table Of Contents
3.4 Voice..............................................5 3.5 IP Address Setting..........................................6 3.5.1 DHCP........................................... 6 3.5.2 Static IP..........................................6 3.6 Public Key............................................7 3.7 Card Setting（R27A Only）......................................7 3.7.1 Import/Export Card Data....................................8 3.7.2 Obtain and Add Card......................................8 3.7.3 Door card Management.....................................8 3.8 Call setting............................................9 3.8.1 Speed Dial........................................... 9... -

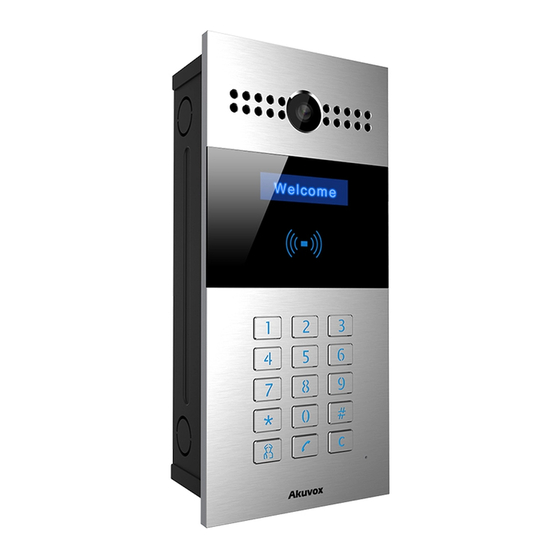

Page 4: Product Overview
Users can also use RF card to unlock the door( R27A only). It’s applicable in villas, office and so on. 1.2 Connector Introduction Ethernet(POE): Ethernet(POE) connector，which can provide... -
Page 5: Daily Use
In the idle interface, press the account or IP address + Dial key to make a call. Management center call ： Users can dial to management center by press management center key when R27A /C connected to SDMC(Sip Device Manage Center). Or users can... -
Page 6: Receiving A Call
SDMC. For more information about SDMC, please contact Akuvox technical team. 2.2 Receiving a Call R27 series will auto answer the incoming call by default. If users disable auto answer function, they can press dial key to answer the incoming call. -
Page 7: Web
Then you will also hear “The door is now opened”. 3. Web 3.1 Obtain IP address The Akuvox R27 series use DHCP IP by default. Press *2396# to enter backstage interface. Enter System Information to check the phone IP address. -
Page 8: Login The Web
3.2 Login the web Open a Web Browser, and enter the corresponding IP address. Then, type the default user name and password as below to log User Name: admin Password: admin 3.3 Time/Lang Go to Phone->Time/Lang to select local Time Zone for NTP server. -
Page 9: Ip Address Setting
(3)Open Door Warning: Disable it, you will not hear the prompt voice when the door is opened. (4)RingBack Upload: To upload the ring back tone you need. (5)Opendoor Tone Upload: To upload the opendoor tone you need. 3.5 IP Address Setting Go to Network->Basic, dynamically or statically to obtain IP address. -
Page 10: Public Key
Public Key is used to unlock. Key Switch: Users can disable or enable this function. Key Value: The default Public Key is 33333333. User can modify by yourself. 3.7 Card Setting（R27A Only） Go to Intercom -> Card setting, to manage card access system. -
Page 11: Import/Export Card Data
3.7.1 Import/Export Card Data R27A supports import or export the card data file, which is convenient for administrator to deal with a large number of cards. 3.7.2 Obtain and Add Card (1)Switch card status to 'Card Issuing' and click 'Apply';... -
Page 12: Call Setting
3.8 Call setting Go to Intercom->Basic, to configure basic call setting. 3.8.1 Speed Dial This Feature is used to call out up to 4 numbers at the same time. After setup the number you need to call, press manage center key to call .
