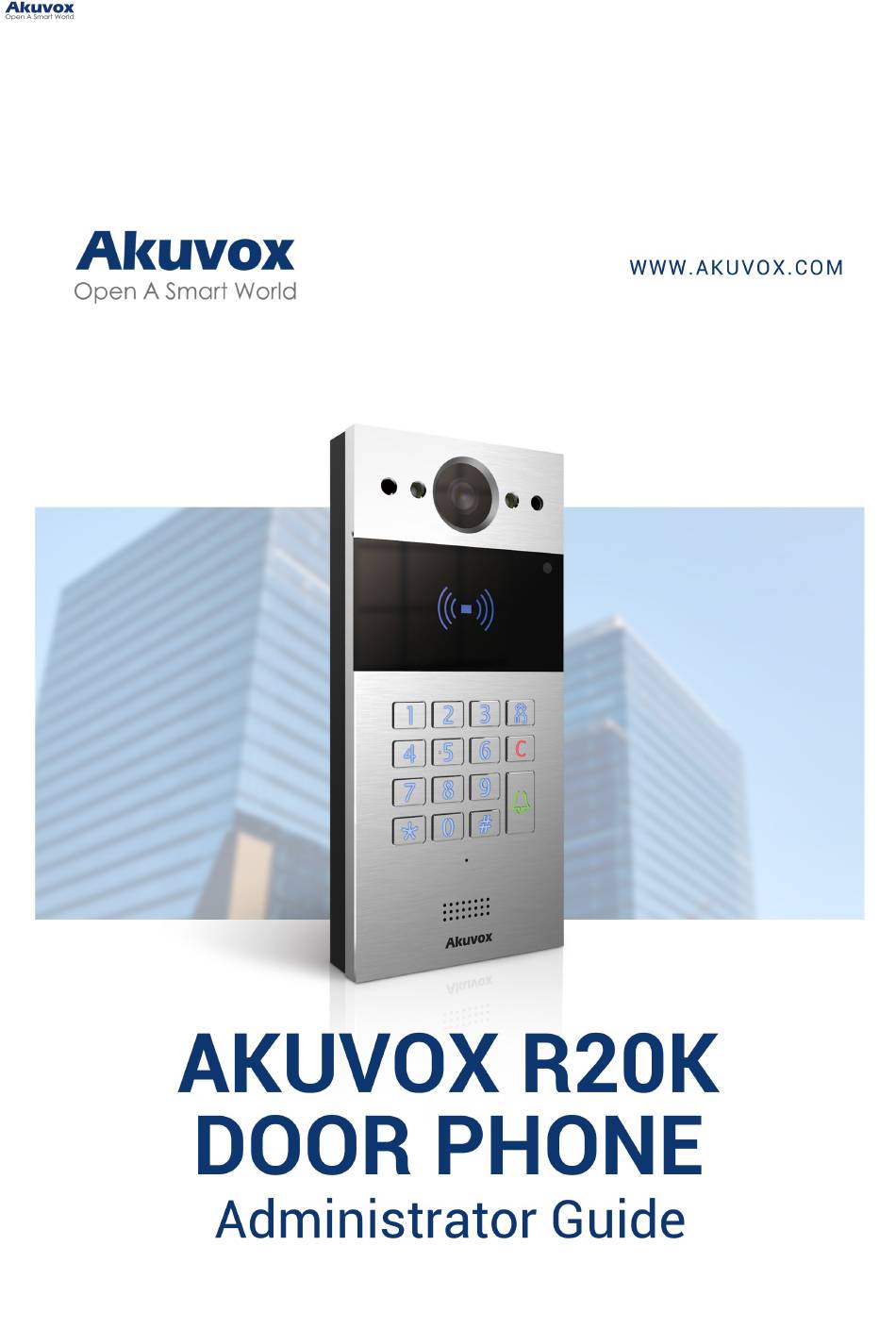

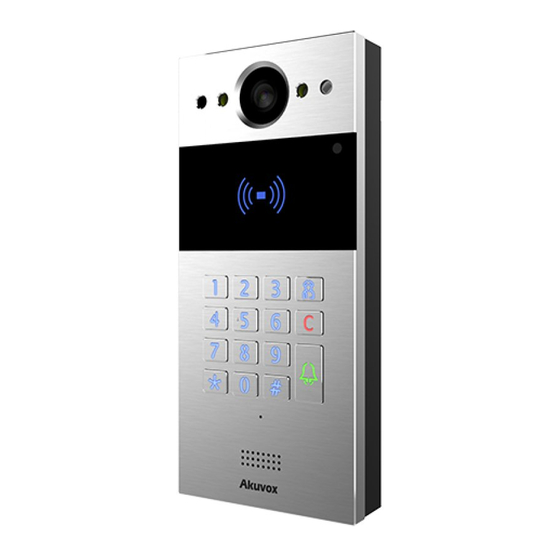

Akuvox R20K Administrator's Manual
  1. Manuals
  2. Brands
  3. Akuvox Manuals
  4. Intercom System
  5. R20K
  6. Administrator's manual

Akuvox R20K Administrator's Manual

Hide thumbs Also See for R20K:
Table of Contents

Advertisement

Quick Links

Download this manual
About This Manual
About This Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R20K and is the answer not in the manual?

Questions and answers

Related Manuals for Akuvox R20K

Summary of Contents for Akuvox R20K

  • Page 1 About This Manual About This Manual...
  • Page 2 Thank you for choosing Akuvox R20K series door phones. This manual is intended for the administrators who need to properly configure the door phone. This manual is written based on the 320.30.10.9 version, and it provides all the configurations for the functions and features of the Akuvox door phone.

  • Page 3: Product Overview

    Product Overview Product Overview Akuvox R20K series can be connected with indoor monitors for remote access control and communication. They allow audio and video calls with visitors, as well as unlocking the door if necessary.

  • Page 4: Change Log

    Change Log Change Log Add Expansion Module.

  • Page 5: Model Specification

    Model Specification Model Specification Model Model R20K R20K Button Physical Numeric Keypad Relay In Relay Out ✔ RS485 ✔ ✔ Card Reader...
  • Page 6 Introduction to Configuration Menu Introduction to Configuration Menu Status Status: this section gives you basic information such as product information, network information, account information, etc. Intercom Intercom: this section covers intercom settings, call log, etc. Account Account: this section concerns SIP account, SIP server, proxy server, transport protocol type, audio &...

  • Page 8: Access The Device

    Access the Device Access the Device Access the Device Access the Device Door phones' system settings can be either accessed on the device directly or on the device web interface. Obtain Device IP Address Obtain Device IP Address Searching the device IP by the IP scanner in the same LAN network. Just click the Scan Scan tab in the IP scanner to check the device IP.
  • Page 9 The initial user name and password are all admin admin, and please be case-sensitive to the user names and passwords entered. Note: Note: Download IP scanner: https://knowledge.akuvox.com/docs/akuvox-ip-scanner?highlight=IP https://knowledge.akuvox.com/docs/akuvox-ip-scanner?highlight=IP See detailed guide: https://knowledge.akuvox.com/v1/docs/en/how-to-obtain-ip-address-via-ip- https://knowledge.akuvox.com/v1/docs/en/how-to-obtain-ip-address-via-ip- scanner?highlight=IP%20Scanner scanner?highlight=IP%20Scanner Google Chrome browser is strongly recommended.

  • Page 10: Language Setting

    Language and Time Setting Language and Time Setting Language Setting Language Setting The device supports the following web languages: English, Russian, Spanish, Dutch, French, German, Polish, Japanese, and Hebrew. Navigate to the web Phone > Time/Lang > Web Language Phone > Time/Lang > Web Language interface. Time Setting Time Setting Time settings on the web interface allows you to set up the NTP server address that you obtained to...
  • Page 11 Update Interval Update Interval: the time interval between two consecutive NTP requests. You can also set up time manually, select the Manual Manual checkbox, and input time data.

  • Page 12: Led Setting

    LED Setting LED Setting LED Fill Light LED Fill Light LED fill light is mainly designed to reinforce the light at night or in a dark environment. Navigate to the web Intercom > LED Setting > LED Fill Light Intercom > LED Setting > LED Fill Light interface. Parameter Set-up : Parameter Set-up Mode...
  • Page 13 The default LED Display Status: The default LED Display Status: LED Status LED Status Description Description Blue Always on Normal status Flashing Calling Flashing Network is unavailable Green Always on Talking on a call Flashing Receiving a call Pink Flashing Upgrading Parameters Set-up: Parameters Set-up:...
  • Page 14 The HTTP URL format is: http://PhoneIP/fcgi/do? http://PhoneIP/fcgi/do? action=LedAction&State=1&Color=1&Mode=2500 action=LedAction&State=1&Color=1&Mode=2500 Status Status: 1=Idle; 2=OffLine; 3=Calling; 4=Talking; 5=Receiving; Color: 1=Green; 2=Blue; 3=Red; Mode: 0=Always On; 1=Always Off; 500/1000/1500/2000/25000/3000 LED Setting on Card Reader Area LED Setting on Card Reader Area You can enable or disable the LED lighting on the card reader area as needed on the web interface. Meanwhile, if you do not want to have the LED light on the card reader area stay on, you can also set the timing for the exact time span during which the LED light can be disabled in order to reduce electrical power consumption.
  • Page 15 to 12:00 12:00 pm during one day (24 hours). LED Setting on Keypad LED Setting on Keypad You can enable or disable the LED lighting on the keypad area as needed on the web interface. Meanwhile, if you do not want to have the LED light on the card reader area stay on, you can also set the timing for the exact time span during which the LED light can be disabled in order to reduce electrical power consumption.

  • Page 16: Volume Configuration

    Volume and Tone Configuration Volume and Tone Configuration Volume Configuration Volume Configuration You can configure the Mic volume according to your need for open-door notification. Moreover, you can also set up the tamper alarm volume when unwanted removal of the access control terminal occurs.
  • Page 17 Parameter Set-up : Parameter Set-up Active Time After Reboot Active Time After Reboot: the IP announcement time after the device reboot. If you set it as 30 seconds, then you must press the call button within 30 seconds for the IP announcement after the device is rebooted, otherwise, the IP announcement will expire.
  • Page 18 Upload Tone Files Upload Tone Files Upload Ringback Tone Upload Ringback Tone Navigate to the web Phone > Audio > Tone Upload Phone > Audio > Tone Upload interface. Upload Open Door Tone Upload Open Door Tone You can upload the tone for open door failure and success on the device web interface. The outside tone is heard when users open doors via card or DTMF.
  • Page 19 Parameter Set-up : Parameter Set-up Open Door Succeeded Outside Warning Open Door Succeeded Outside Warning : warning tone that will go off when users open the door by pressing the exit button. Open Door Succeeded Inside Warning Open Door Succeeded Inside Warning : warning tone that will go off when they open the door using the access methods supported by the door phone.

  • Page 20: Network Setting

    Network Setting Network Setting Network Status Network Status To check the network status on the web Status > Basic > Network Information Status > Basic > Network Information interface. Device Network Configuration Device Network Configuration To ensure normal functioning, make sure that the device has its IP address set correctly or obtained automatically from the DHCP server.
  • Page 21 Device Deployment in Network Device Deployment in Network To facilitate device control and management, configure Akuvox intercom devices with details such as location, operation mode, address, and extension numbers. Navigate to the web Network > Advanced > Connect Setting Network >...

  • Page 22: Nat Setting

    Discovery Mode Discovery Mode : allows the device to be discovered by other devices in the network. By disabling it, the device will be concealed and not to be discovered by other devices. Device Address Device Address : specifies the device address by entering device location information from the left to the right: Community, Unit, Stair, Floor, Room Community, Unit, Stair, Floor, Room in sequence.

  • Page 23: Snmp Setting

    To set up NAT, navigate to the web Account > Basic > NAT Account > Basic > NAT interface. Parameter Set-up : Parameter Set-up Stun Server Address Stun Server Address : the SIP server address in Wide Area Network(WAN). Port Port: the SIP server port.

  • Page 24: Vlan Setting

    Parameter Set-up ： Parameter Set-up Trusted IP Trusted IP : the allowed SNMP server address. It can be an IP address or any valid URL domain name. VLAN Setting VLAN Setting A Virtual Local Area Network (VLAN) is a logical group of nodes from the same IP domain, regardless of their physical network segment.
  • Page 25 TR-069 (Technical Report 069) provides the communication between Customer-Premises Equipment (CPE) and Auto-Configuration Servers (ACS). It includes both a safe auto configuration and the control of other CPE management functions within an integrated framework. For door phones, the administrators can manage all the devices on a common TR-069 Platform. IP phones can be easily and securely configured on the TR-069 platform to make mass deployment more efficient.
  • Page 26 Device W eb HTTP Setting Device W eb HTTP Setting This function manages device website access. The door phone supports two remote access methods: HTTP and HTTPS (encryption). Navigate to the web Network > Advanced > Web Server Network > Advanced > Web Server interface.
  • Page 27 SIP Account Registration Each device needs a SIP account to make and receive SIP calls. Akuvox intercom devices support the configuration of two SIP accounts, which can be registered under two independent servers. Navigate to the web Account > Basic > SIP Account...

  • Page 28: Sip Server Configuration

    SIP servers enable devices to establish and manage call sessions with other intercom devices using the SIP protocol. They can be third-party servers or built-in PBX in Akuvox indoor monitor. Navigate to the web Account > Basic > SIP Server...
  • Page 29 To register SIP account for Akuvox indoor monitors, obtain Server IP and Server Port from Akuvox indoor monitor PBX screen. b. To register SIP account for third-party devices, obtain Server IP and Server Port from third-party service provider. Parameter Set-up :...
  • Page 30 Port Port: the Port number for establishing a call session via the outbound proxy server. Configure Data Transmission Type Configure Data Transmission Type Akuvox intercom devices support four data transmission protocols: User Datagram User Datagram Protocol(UDP), Transmission Control Protocol(TCP Protocol(UDP)

  • Page 31: Call Settings

    Call Settings Call Settings The Do Not Disturb(DND DND ) feature prevents unwanted incoming SIP calls, ensuring uninterrupted focus. It also allows you to set a code to be sent to the SIP server when rejecting a call. Navigate to the web Phone > Call Feature Phone >...
  • Page 32 Manager Dial Call includes two types of calls: Sequence call and group call. It allows quick initiation of pre-configured numbers by pressing the Management key on the door phone. Navigate to the web Intercom > Basic > Manager Dial Intercom > Basic > Manager Dial interface. Parameter Set-up : Parameter Set-up Call Type...

  • Page 33: Speed Dial

    Note Note Sequence call works with SmartPlus Cloud. Speed Dial Speed Dial Speed dial is a function that allows you to make speedy calls by pressing the dial key on the keypad. Navigate to the web Intercom > Basic > Speed Dial Intercom >...
  • Page 34 Navigate to the web Intercom > Extension Unit Intercom > Extension Unit interface. Parameter Set-up: Parameter Set-up: Locate Module Locate Module : when clicking it, the key light will flash three times at 500ms intervals. Label Label: the key name, usually the callee's name. Number Number: the called device's IP/SIP number.

  • Page 35: Auto Answer

    Note ONLY the device with firmware version 320.30.10.116 and above support this feature. Please consult Akuvox tech team for the latest firmware. W eb Call W eb Call The web call feature allows for making calls via the device’s web interface, commonly used for remote call testing purposes.
  • Page 36 Parameters Set-up : Parameters Set-up Auto Answer Delay Auto Answer Delay: the delay time (from 0-5 seconds) before the call can be answered automatically. For example, if you set the delay time as 1 second, then the call will be answered in 1 second automatically.
  • Page 37 Parameters Set-up : Parameters Set-up Multicast Priority Paging Barge Multicast Priority Paging Barge : multicast or how many multicast calls are higher priority than SIP call, if you disable Paging Priority Active, SIP call will have high priority. Paging Priority enabled Paging Priority enabled : multicast calls are called in order of priority or not.
  • Page 38 The door phone allows you to set up the call time duration in receiving the call from the calling device as the caller side might forget to hang up the intercom device. When the call time duration is reached, the door phone will terminate the call automatically. Navigate to the web Intercom >...
  • Page 39 Hang Up After Open Door Hang Up After Open Door This feature automatically ends the call once the door is released, allowing for the seamless reception of subsequent calls. Navigate to the web Intercom > Basic > Hang Up After Open Door Intercom >...

  • Page 40: Contacts Configuration

    Contacts Configuration Contacts Configuration The contacts list is for granting access or calling permission to the indoor monitor or other devices. To set it up on the web Contacts > Access Allowlist Contacts > Access Allowlist interface. Manage Contacts Manage Contacts You can search, display, edit, and delete the contacts in your contacts list on the web.
  • Page 41 Account Account: the registered SIP account to make a call. If using IP direct call, it is not available. Floor Floor: the floor number that the contact is allowed to access.

  • Page 42: Audio Codec Configuration

    Audio & Video Codec Configuration Audio & Video Codec Configuration Audio Codec Configuration Audio Codec Configuration The door phone supports three types of Codec (PCMU, PCMA, and G722) for encoding and decoding the audio data during the call session. Each codec varies in terms of sound quality. You can select the specific codec with different bandwidths and sample rates flexibly according to the actual network environment.
  • Page 43 The door phone supports the H264 codec that provides better video quality at a much lower bit rate with different video quality and payload. Navigate to the web Account > Advanced Account > Advanced interface. Parameter Set-up : Parameter Set-up Name Name : check to select the H264 video codec format for the door phone video stream.
  • Page 44 Parameter Set-up ： Parameter Set-up Video Resolution Video Resolution: the video quality resolution has four option, CIF, VGA, 4CIF CIF, VGA, 4CIF and 720P 720P according to the actual network environment. The default resolution is 4CIF 4CIF . Video Bitrate Video Bitrate : the video stream bitrate ranges from 64 to 2048 kbps.

  • Page 46: Relay Setting

    Relay Setting Relay Setting Relay Switch Setting Relay Switch Setting You can configure the relay switch(es) and DTMF for the door access on the web Intercom > Intercom > Relay interface. Relay Parameter Set-up : Parameter Set-up Type Type : when Default state is selected, the Relay Status shows Low which means the door is closed and the Relay Status shows High which means the door is opened.
  • Page 47 Security Relay Setting Security Relay Setting The Security Relay, known as Akuvox SR01, is a product designed to bolster access security by preventing unauthorized forced entry attempts. Installed inside the door, it directly governs the door opening mechanism, ensuring that the door remains secure even in the event of damage to the...
  • Page 48 Navigate to the web Intercom > Relay > Security Relay Intercom > Relay > Security Relay interface. Parameter Set-up : Parameter Set-up Connect Type Connect Type : the connection type between the security relay and the door phone. Trigger Delay(Sec) Trigger Delay(Sec): the relay trigger delay time ranges from 0 to 10 seconds.
  • Page 49 Relay Name Relay Name : name the relay to distinguish it from others. It can be edited on the SmartPlus cloud and SDMC. W eb Relay Setting W eb Relay Setting A web relay has a built-in web server and can be controlled via the Internet or a local network. The device can use a web relay to either control a local relay, or a remote relay somewhere else on the network.
  • Page 50 Parameter Set-up : Parameter Set-up Type Type : Web Relay Web Relay enables the feature. Both Both enables both local relay and web relay. The local relay has a higher priority. Password Password : the password is authenticated via HTTP and you can define the passwords using http get http get in Action.
  • Page 51 Web Relay Extension Web Relay Extension: optional setting. When entering the SIP or IP number of an intercom device such as an indoor monitor, only the device can receive the web relay action command and trigger the web relay via DTMF code.
  • Page 52 Door Access Schedule Management Door Access Schedule Management Relay Schedule Relay Schedule The relay schedule allows you to set a specific relay to always open at a certain time. This is helpful for situations like keeping the gate open after school or keeping the door open during work hours. Navigate to the web Intercom Intercom >...
  • Page 53 Navigate to the web Intercom > Schedule Intercom > Schedule interface. Parameters Set-up : Parameters Set-up Schedule Type Schedule Type : there are three types to choose from: Daily, Weekly Daily, Weekly, and Normal Normal. Date Range Date Range : this field will only be displayed when the Normal Normal type is selected.
  • Page 54 Import and Export Door Access Schedule Import and Export Door Access Schedule You can create door access schedules one by one or in bulk. You can export the current schedule file, edit it or add more schedules following the format, and import the new file to the desired devices.
  • Page 55 Door Unlock Configuration Door Unlock Configuration Configure PIN Code for Door Unlock Configure PIN Code for Door Unlock There are two types of PIN codes for door access: public and private. A private PIN is unique to each user, while the public one is shared by residents in the same building or complex. You can create and modify both the public and private PIN codes.
  • Page 56 To configure it on the web Intercom > User Intercom > User interface. Click Add Add . Parameter Set-up : Parameter Set-up Code Code : enter the user’s private PIN. After user information and PIN code are entered, you can scroll down to Access Setting Access Setting and configure private PIN code access control.
  • Page 57 the web interface. Schedule Schedule : select from the created door access schedule on the right box and move the one to be applied to the user(s)-specific PIN code door access to the box on the right side. Configure RF Card for Door Unlock Configure RF Card for Door Unlock Users can swipe RF cards to open doors.
  • Page 58 Parameter Set-up : Parameter Set-up User ID User ID : the user ID is 11 digits maximum in length and cannot be reused for other users. The user ID can be generated automatically or manually. Role Role : select General User for residents and Admin for the administrator. Code Code : place the card on the device's card reader area and click Obtain Obtain to acquire the...
  • Page 59 Schedule Schedule : select from the created door access schedule on the right box and move the one to be applied to the user(s)-specific PIN code door access to the box on the right side. IC/ID Card Control IC/ID Card Control Enable or disable the device-supporting card type.
  • Page 60 ID Card Display Mode ID Card Display Mode : select the card format for the ID Card ID Card for the door access among seven format options: 8H10D; 6H3D5D(W26); 6H8D; 8HN; 8HR; 6H3D5D- 8H10D; 6H3D5D(W26); 6H8D; 8HN; 8HR; 6H3D5D- R(W26); 8HR10D R(W26);...
  • Page 61 Import and Export User Data Import and Export User Data You can export the user data in batch to modify such information as PIN codes and RF card codes. Then, import it to other devices for efficiently managing users. Navigate to the web Intercom > User Intercom >...
  • Page 62 Parameter Set-up : Parameter Set-up Session Check Session Check: enable it to protect data transmission security. User Name User Name : customize the username as part of the HTTP command, for example, admin admin. Password Password : customize the password as part of the HTTP command. For example: 12345 12345 .
  • Page 63 Parameter set-up : Parameter set-up Trigger Electrical Level Trigger Electrical Level: select the trigger electrical level options between High and Low according to the actual operation of the exit button. Action To Execute Action To Execute : select the method to carry out the action among four options: FTP, Email, HTTP, and SIP Call.
  • Page 64 Dual-tone multi-frequency signaling(DTMF DTMF ) is a way of sending signals over phone lines by using different voice-frequency bands. Users can use the DTMF function to unlock the door for visitors during a call by either typing the DTMF code on the soft keypad, or tapping the unlock tab with the DTMF code on the screen.
  • Page 65 DTMF White List DTMF White List In order to secure the door access via DTMF codes, you can set up the DTMF whitelist on the device web Intercom > Relay > Open Relay Via DTMF Intercom > Relay > Open Relay Via DTMF interface so that only the caller numbers you designated in the door phone can use the DTMF code to gain door access.
  • Page 66 MJPEG, or Motion JPEG, is a video compression format that uses JPEG images for each video frame. Akuvox devices display live streams on the web interface and capture monitoring screenshots in MJPEG format. Settings related to MJPEG determine video quality and the on/off status of the live stream function.
  • Page 67 Parameter Set-up : Parameter Set-up RTSP Authorization Enabled RTSP Authorization Enabled : when enabled, you are required to select RTSP Authentication Mode and enter RTSP username and password for authentication. RTSP Authentication Mode RTSP Authentication Mode : select RTSP authentication type between Basic Basic and Digest Digest.
  • Page 68 Video Enabled : After enabling RTSP feature, the video RTSP is enabled by default and cannot be modified. 2nd Video Enabled 2nd Video Enabled : Akuvox door phones support 2 RTSP streams, you can enable the second one. Parameter Set-up :...
  • Page 69 RTSP OSD Setting RTSP OSD Setting This feature is used to add a watermark to the RTSP video or picture. To protect the owner of the video or image. Navigate to the web Intercom > RTSP > RTSP OSD Setting Intercom >...
  • Page 70 VGA . ONVIF ONVIF You can access the real-time video from the device's camera using the Akuvox indoor monitor or other third-party devices like Network Video Recorder(NVR NVR). Enabling and setting up the ONVIF function on the device will allow its video to be visible on other devices.

  • Page 71: Live Stream

    Parameter Set-up : Parameter Set-up Discoverable Discoverable : when enabled, the video from the door phone camera can be searched by other devices. Password Password : customize the password for authentication. The default is admin admin. After the setting is complete, you can enter the ONVIF URL on the third party device to view the video stream.
  • Page 73 It is a certificate sent to the client for authentication when the client requests an SSL connection with the Akuvox door phone. Please upload the certificates in accepted formats. Navigate to the web Security > Advanced > Web Server Certificate...

  • Page 74: Client Certificate

    Client Certificate Client Certificate This certificate verifies the server to the Akuvox door phone when they want to connect using SSL. The door phone verifies the server's certificate against its client certificate list. Navigate to the web Security > Advanced > Web Server Certificate...
  • Page 75 Parameter Set-up : Parameter Set-up Index Index: select the desired value from drop-down list of Index. If you select Auto value, the uploaded certificate will be displayed in numeric order. If you select the value from 1 to 10, the uploaded certificate will be displayed according to the value that the user selected. Select File Select File : click Choose file browse local drive, and locate the desired certificate.

  • Page 76: Configure Motion Detection

    Before applying for a SIP account from a SIP or a DNS server using the TLS protocol, you'll need to upload a TLS certificate. This certificate is essential for server authentication. Navigate to the web Security > Advanced > Web Server Certificate Security >...
  • Page 77 Suspicious Moving Object Detection Suspicious Moving Object Detection: select Disable Disable to disable the motion detection. Select IR Detection IR Detection to enable the IR sensor-based motion detection. And select Video Video Detection Detection to enable the video-based motion detection during the monitoring of the suspicious moving object.
  • Page 78 Parameter Set-up : Parameter Set-up SMTP User Name SMTP User Name : the SMTP user name is usually the same as the sender’s email address. SMTP Password SMTP Password : the password of SMTP server is usually the same as the sender’s email address.
  • Page 79 Parameter Set-up : Parameter Set-up FTP Server FTP Server: the address(URL) of the FTP server. FTP Test FTP Test: run the test to see if FTP notification can be sent and received by the FTP server. SIP Call Notification Setting SIP Call Notification Setting Navigate to the Intercom >...

  • Page 80: Action Url

    You can use the device to send specific HTTP URL commands to the HTTP server for certain actions. These actions will be triggered when the relay status, input status, PIN code, or RF card access changes. Akuvox Action URL: Akuvox Action URL:...
  • Page 81 Event Parameter format Example Make Call $remote Http://server ip/ Callnumber=$remote Hang Up $remote Http://server ip/ Callnumber=$remote Relay Triggered $relay1status Http://server ip/ relaytrigger=$relay1status Http://server ip/ Relay Closed $relay1status relayclose=$relay1status Http://server ip/ Input Triggered $input1status inputtrigger=$input1status Http://server ip/ Input Closed $input1status inputclose=$input1status Http://server ip/ Valid Code Entered $code...

  • Page 82: Voice Encryption

    Voice Encryption Voice Encryption Secure Real-time Transport Protocol (SRTP) is a protocol derived from the Real-time Transport Protocol (RTP). It enhances the security of data transmission by providing encryption, message authentication, integrity assurance, and replay protection. Navigate to the web Account > Advanced > Encryption Account >...

  • Page 83: High Security Mode

    If user agent is set to a specific value, users can see the information from PCAP. If user agent is blank, by default, users can see the company name Akuvox, model number and firmware version from PCAP. Navigate to the web Account > Advanced > User Agent Account >...
  • Page 84 If the mode is off, the device can use both the new formats above and the old format below: l http://deviceIP/fcgi/do? action=OpenDoor&UserName=username&Password=password&DoorNum=1 4. It is not allowed to import/export configuration files in tgz. format between a device with the high security mode and another one without it. For assistance with file transfer, please contact Akuvox technical support.
  • Page 85 Logs Logs Call Logs Call Logs If you want to check on the calls inclusive of the dial-out calls, received calls, and missed calls in a certain period of time, you can check and search the call log on the device web interface and export the call log from the device if needed.
  • Page 86 Parameter Set-up : Parameter Set-up Name Name : if it is a locally added key or card, the corresponding added name will be displayed. If it is an unknown key or card, it will display Unknown. Code Code : if opening the door via PIN code, the corresponding PIN code will be displayed. If opening the door via RF cards, the corresponding card number will be displayed.

  • Page 87: Firmware Upgrade

    Firmware Upgrade Firmware Upgrade Akuvox devices can be upgraded on the device web interface. Navigate to the web Upgrade > Basic Upgrade > Basic interface. Note Note The upgrade file is .rom format. Do not disconnect the device from internet and power supply when the firmware upgrade is in progress, otherwise, it might cause upgrade failure or system breakdown.

  • Page 88: System Log

    Parameter Set-up Log Level Log Level: select log levels from 1 to 7 levels. You will be instructed by Akuvox technical staff about the specific log level to be entered for debugging purpose. The default log level is 3 3 . The higher the level is, the more complete the log is.
  • Page 89 PCAP PCAP PCAP is used to capture the data package going in and out of the devices for debugging and troubleshooting purposes. Navigate to the web Upgrade > Advanced > PCAP Upgrade > Advanced > PCAP interface. Parameter Set-up : Parameter Set-up Specific Port Specific Port: select the specific port from 1-65535 so that only the data packet from the...
  • Page 90 Backup Backup You can import or export encrypted configuration files to your Local PC. Navigate to the web Upgrade > Advanced > Others Upgrade > Advanced > Others interface.

  • Page 91: Auto Provisioning

    Provisioning Principle Auto-provisioning is a feature used to configure or upgrade devices in batch via third-party servers. DHCP, PNP, TFTP, FTP, and HTTPS are the protocols used by the Akuvox devices to access DHCP, PNP, TFTP, FTP, and HTTPS the URL of the address of the third-party server which stores configuration files and firmware, which will then be used to update the firmware and the corresponding parameters on the device.
  • Page 92 Configuration Files for Auto-provisioning Configuration Files for Auto-provisioning Configuration files have two formats for auto-provisioning. One is the general configuration files used for the general provisioning and the other one is the MAC-based configuration provisioning. The difference between the two types of configuration files is shown below: The difference between the two types of configuration files is shown below: General configuration General...
  • Page 93 AutoP Schedule AutoP Schedule Akuvox provides you with different Autop methods that enable the device to perform provisioning for itself according to the schedule. Navigate to the web Upgrade > Advanced > Automatic Autop Upgrade > Advanced > Automatic Autop interface.
  • Page 94 Note Note The Custom Option type must be a string. The value is the URL of TFTP server. To set up DHCP Autop with Power On mode and export Autop Template to edit the configuration. Navigate to the web Upgrade > Advanced > Automatic Autop Upgrade >...
  • Page 95 Parameter Set-up: Parameter Set-up: Custom Option Custom Option: enter the DHCP code that matched the corresponding URL so that the device will find the configuration file server for the configuration or upgrading. DHCP Option 66 DHCP Option 66 : if none of the above is set, the device will automatically use DHCP Option 66 for getting the upgrade server URL.
  • Page 96 FTP: ftp://192.168.0.19/(allows anonymous login) ftp://username:password@192.168.0.19/(requires a user name and password) HTTP: http://192.168.0.19/(use the default port 80) http://192.168.0.19:8080/(use other ports, such as 8080) HTTPS: https://192.168.0.19/(use the default port 443) Akuvox do not provide user specified server. Please prepare TFTP/FTP/HTTP/HTTPS server by yourself.

  • Page 97: Pnp Configuration

    PNP Configuration PNP Configuration Plug and Play (PNP) is a combination of hardware and software support that enables a computer system to recognize and adapt to hardware configuration changes with little or no intervention by a user. Navigate to the web Upgrade > Advanced > PNP Option Upgrade >...
  • Page 98 Integration with Third Party Device Integration via W iegand Integration via W iegand The Wiegand feature enables Akuvox door phone to act as a controller or a card reader. Navigate to the web Intercom > Wiegand Intercom > Wiegand interface.
  • Page 99 Wiegand card reader mode. Integration via HTTP API Integration via HTTP API HTTP API is designed to achieve a network-based integration between the third-party device and the Akuvox device. Navigate to the web Intercom > HTTP API Intercom > HTTP API interface.
  • Page 100 Parameter Set-up : Parameter Set-up Enabled Enabled : if the function is disabled, any request to initiate the integration will be denied and be returned HTTP 403 forbidden status. Authorization Mode Authorization Mode : select from None None , Normal Normal, Allowlist Allowlist, Basic Basic, Digest...
  • Page 101 Lift Control Configuration The door phones can be connected to the Akuvox lift controller for the lift control. Users can summon the lift to go down to the ground floor when they are granted access through various types of access methods on the door phone.
  • Page 102 ZKTeco lift controller Chiyu Select Chiyu Chiyu if you want to integrate with Chiyu Chiyu lift controller Note Note Please consult with Akuvox technical support if you have any inquiries on the integration mode of any OEM lift controller integration project.
  • Page 103 Akuvox EC32 Lift Controller Akuvox EC32 Lift Controller Navigate to the web Intercom > Lift Control Intercom > Lift Control interface and select Akuvox EC32 Akuvox EC32 .
  • Page 104 Password : enter the password of the lift controller for the authentication. Floor NO. Parameter Floor NO. Parameter: enter the Floor number parameter provided by Akuvox. The default parameter string is “$floor $floor”. You can define your own parameter string if needed.

  • Page 105: Power Output Control

    URL To Trigger Specific Floor URL To Trigger Specific Floor: enter the Akuvox life control URL for triggering a specific floor. The URL is “/cdor.cgi?open=0&door=$floor /cdor.cgi?open=0&door=$floor”, but the string " $floor " at the end must be identical with the parameter string you defined.
  • Page 106 The device can serve as a power supply for the external relays. Navigate to the web Intercom > Relay > 12V Power Output Intercom > Relay > 12V Power Output interface. Parameter Set-up: 12V Power Output 12V Power Output: select Disabled to disable the power output function; select Always to enable the access controller to provide continuous power to the third-party device.

  • Page 107: Password Modification

    Password Modification Password Modification Modify Device W eb Interface Password Modify Device W eb Interface Password Select admin admin for the administrator account and User User for the User Account. Click the Change Change Password tab to change the password. Password Navigate to the web Security >...
  • Page 108 System Reboot&Reset System Reboot&Reset Reboot Reboot If you want to reboot the device system, you can operate it on the device web interface. Moreover, you can set up a schedule for the device to be restarted. Navigate to the web Upgrade > Basic Upgrade >...
