  • Page 1 R20K Door Phone User Manual...
  • Page 2 About This Manual Thank you for choosing Akuvox’s R20K door phone. This manual is intended for end users who need to properly configure the door phone. This manual is applicable to 20.30.3.xx version, and it provides all functions’ configurations of R20K. Please visit Akuvox forum or consult technical support for any new information or latest firmware.

  • Page 3: Table Of Contents

    Content 1. Product Overview....................................... 1 1.1. Product Description....................................1 1.2. Connector Introduction....................................1 1.3. LED Status Information....................................2 2. Daily Use..........................................3 2.1. Make a Call........................................3 2.2. Receive a Call......................................4 2.3. Unlock...........................................4 2.3.1. Unlock by Public PIN Codes................................4 2.3.2. Unlock by Private PIN Codes................................. 5 2.3.3.

  • Page 4: Product Overview

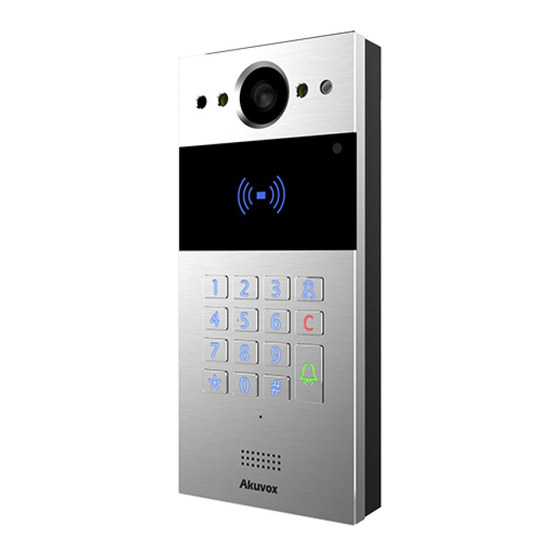

    User Manual 1. Product Overview 1.1. Product Description Akuvox R20K is a SIP-compliant, hands-free and video door phone. It can be connected with Akuvox indoor monitors for remote access controlling and monitoring. Users can communicate with visitors via audio and video calls, and unlock the door if they need. Users can also use RFID cards to unlock the door.

  • Page 5: Led Status Information

    R20K User Manual RS485-A/B: RS485 terminal. WG_D0/WG_D1: Wiegand terminal. DOORA/B: Trigger signal input terminal. RelayA/B (NO/NC/COM): Relay control terminal. Note: The general door phone interface diagram is only for reference. Figure 1.2-2 General interface 1.3. LED Status Information LED Status...

  • Page 6: Daily Use

    R20K User Manual Daily Use 2.1. Make a Call Press the SIP account or IP address and Dial key to make a call. Management center call ： Users can make a speed dial to management center by pressing Management center key.

  • Page 7: Receive A Call

    R20K User Manual 2.2. Receive a Call R20K door phones are designed to answer the incoming call automatically by default. If you the disable auto answer function, you need to press the Dial key to answer incoming calls. 2.3. Unlock 2.3.1.Unlock by Public PIN Codes...

  • Page 8: Unlock By Private Pin Codes

    Tap the pre-configure RFID cards on the door phone RFID card reader to unlock. And you will hear the announcement “ Welcome, please come in. “ If the card has not been registered in the R20K you will hear the unlock failure sound. R20K.supports 3.56MHz and...

  • Page 9: Unlock By Dtmf Codes

    R20K User Manual 2.3.4.Unlock by DTMF Codes Users can press the predefined DTMF code from an answer unit to remotely unlock the door during the call. You will also hear the announcement “Welcome, please come in”...
  • Page 10 R20K User Manual Abbreviations DNS-SRV: Service record in the Domain Name System ACS: Auto Configuration Server FTP: File Transfer Protocol Auto: Automatically GND: Ground AEC: Configurable Acoustic and Line Echo Cancelers ACD: Automatic Call Distribution HTTP: Hypertext Transfer Protocol Autop: Automatical Provisioning...
  • Page 11 R20K User Manual SIP: Session Initiation Protocol PCAP: Packet Capture SNMP: Simple Network Management Protocol PNP: Plug and Play STUN: Session Traversal Utilities for NAT RFID: Radio Frequency Identification SNMP: Simple Mail Transfer Protocol RTP: Real-time Transport Protocol SDMC: SIP Devices Management Center...
  • Page 12 Contact us For more information about the product, please visit us at www.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: support@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
