Akuvox A05 Series Administrator's Manual

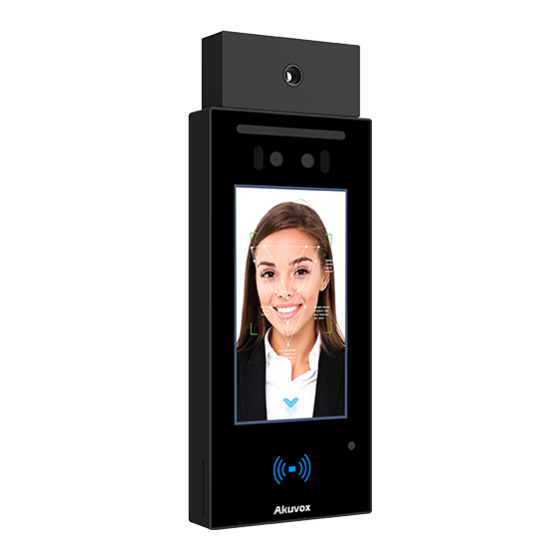

Access control terminal
Hide thumbs Also See for A05 Series:
Table of Contents

Advertisement

Quick Links

Version: 1.0 | Date: Jan.2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A05 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Akuvox A05 Series

Summary of Contents for Akuvox A05 Series

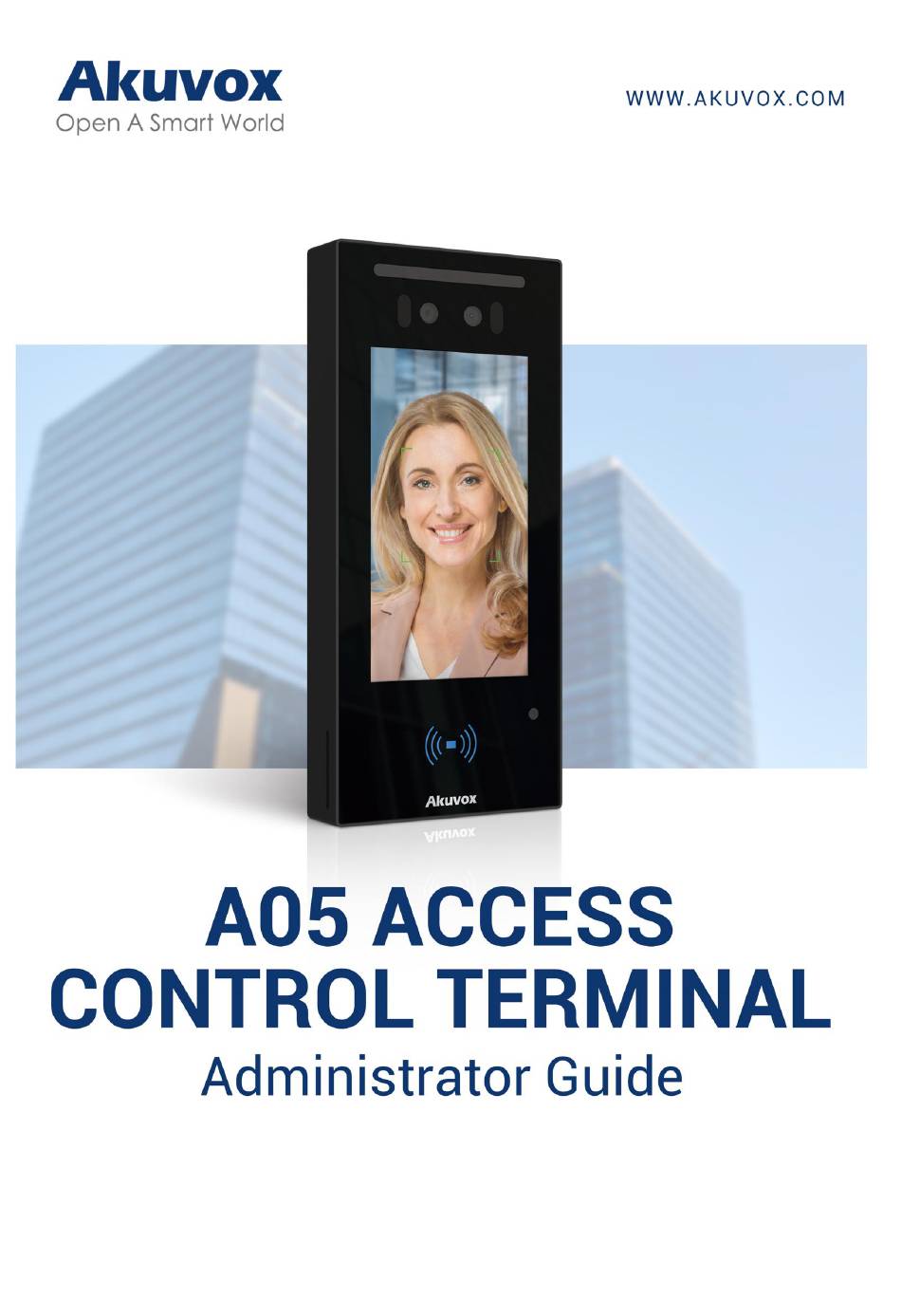

  • Page 1 Version: 1.0 | Date: Jan.2021...
  • Page 2 This manual applies to 105.30.1.17 version, and it provides all the configurations for the functions and features of A05 series access control terminals. Please visit Akuvox forum or consult technical...
  • Page 3 Introduction of Icons and Symbols Warning:  Always abide by this information in order to prevent the persons from injury. Caution:  Always abide by this information in order to prevent the damages to the device. Note:  Informative information and advice from the efficient use of the device.
  • Page 4 Related Documentation You are advised to refer to the related documents for more technical information via the link below: http://wiki.akuvox.com...

  • Page 5: Table Of Contents

    Table of Contents 1. Product Overview....................1 2. Change Log......................2 3. Model Specification....................3 4. Introduction to Configuration Menu..............5 5. Access the Device....................7 6. Time and Language Setting.................. 9 6.1. Language Setting..................9 6.2. Time Setting....................9 6.3. LED Setting......................11 6.3.1. Configure Card Reader LED Setting............ 11 6.3.2.
  • Page 6 9.3.2. Unlock by Bluetooth................29 9.3.3. Unlock by HTTP Command on Web Browser........30 9.3.4. Unlock by Exit Button by the Door............31 9.3.5. Body Temperature Measurement for Door Access（Optional）... 33 9.3.5.1. Body Temperature Measurement Configuration....33 9.3.5.2. Ambient Temperature Configuration.......34 10.
  • Page 7 22. Contact Us......................70...

  • Page 8: Product Overview

    A05 Admin Guide 1. Product Overview Akuvox A05 series is a Linux-based access control door phone with a display screen. It incorporates access control and video surveillance. Its finely tuned SmartPlus and AI-based communication technology allow featured customization to better suit your operation habit. A05 series has multiple...

  • Page 9: Change Log

    A05 Admin Guide 2. Change Log The change log will be updated here along with the changes in new software version. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 10: Model Specification

    5” IPS Touch Screen Button Housing Material Plastic Relay Out Alarm In RS485 √ √ Resolution 1280x720 Brightness 500cd/m2 Card Reader 13.56MHz Wi-Fi Bluetooth Optional IP Rating IP65 Temperature Optional Detection Face recognition √ External SD Card AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 11 A05 Admin Guide Wall √ Mounting Flush Mounting Desk Mounting POE Stand by 5.5W Power POE Full Load 9.8W Consumption Power Adapter 5.5W Standby Power Power Adapter Full Load Consumption Color Option Black AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 12: Introduction To Configuration Menu

    1. SDMC: SDMC is suitable for the management of Akuvox devices large communities, including access control, resident information, remote device control, etc. 2. Akuvox Upgrade tool: Upgrade Akuvox devices in batch on a LAN (Local AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 13 3. Akuvox PC Manager: Distribute all configuration items in batch on a LAN. 4. IP scanner: it is used to search Akuvox device IP addresses on a LAN. 5. FacePro: Manage face data in batch for the access control terminal on a LAN.

  • Page 14: Access The Device

    5. Access the Device Before configuring Akuvox A05, please make sure the device is installed correctly and connect a normal network. Using Akuvox IP scanner tool to search the device IP address in the same LAN. Then use the IP address to login in the web browser by user name and password admin and admin.
  • Page 15 A05 Admin Guide Note  Google Chrome browser is strongly recommended.  The Initial user name and password are “admin” and please be case-sensitive to the user names and passwords entered. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 16: Time And Language Setting

    NTP server of its time zone so that the NTP server can synchronize the time zone setting in your device. To configure the configuration on the device web Setting > Time/Lang > Time interface AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 17 NTP Server field to be used as a backup.  Update Interval: set the automatic time update via NTP server. Note:  When the check box is unticked, the parameters related to NTP server will become not editable. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 18: Led Setting

    LED White light is used to reinforce the lighting for facial recognition as well as for the QR code access as needed in the dark environment. To configure the configuration on web Device > Light > White Light interface AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 19: Screen Display Configuration

    QR code scan. 6.4. Screen Display configuration A05 series access control terminals allow you to enjoy a variety of screen displays to enrich your visual and operational experience through the customized setting to your preference.

  • Page 20: Upload Screensaver

    To configure the configuration on web Device > LCD > Upload ScreenSaver interface. You can upload a maximum of 5 pictures, and each picture will be displayed in rotation according to the ID order with specific time duration (Time Interval) you set. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 21: Configure Access Screen Display Mode

    Device > LCD > Theme interface. Parameter Set-up:  Mode: There are two mode Default and QR Code. If you choose QR code, the main screen shows “Please scan your QR code” as default to remind AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 22: Volume And Tone Configuration

     Ring Volume: set the ring volume from 0-15 according to your need. The default volume is 8.  Tamper Alarm Volume: set the tamper alarm volume from 0-15 according to your need. The default volume is 8. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 23: Upload Open Door Tone

     Open Door Success: Tick the check box if you want to see the text prompt after the door open success and vice versa.  Open Door Failed: Tick the check box if you want to see the prompt words after the door open failure and vice versa. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 24: Network Setting

    When static IP mode is selected, then the IP address, subnet mask, default gateway, and DNS servers address must be manually configured according to your actual network environment.  IP Address: set up the IP Address if the static IP mode is selected. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 25: Configure Device Deployment In Network

    Parameter Set-up:  Server Mode: It is automatically set up according to the actual device connection with a specific server in the network such as SDMC or Akuvox SmartPlus and None. None is the default factory setting indicating the device is not in any server type, therefore you are allowed to choose Cloud, SMDC in discovery mode.

  • Page 26: Relay Setting

    7.3. Relay Setting You can configure the relay switch(es) and DTMF for the door access on the web interface. 7.3.1.Relay switch setting To configure the configuration on web Access Control > Relay > Relay interface. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 27 Note:  Only the external devices connected to the relay switch needs to be powered by power adapters as relay switch does not supply power. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 28: Web Relay Setting

    Parameter Set-up:  Type: select among three options Disabled, WebRelay and Both. Select WebRelay to enable the web relay. Select Disable to disable the web relay. Select Both to enable both local relay and web relay. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 29 After the web relay is set up, you can configure the specific web relay to be triggered based on the relay location for the door access. To configure the configuration on web Access Control > User interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 30: Door Access Schedule Management

    To configure the configuration on web Access Control > Schedule Setting interface. To create a weekly schedule, select Schedule Type as Weekly. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 31: Import And Export Door Access Schedule

    In addition to creating door access schedule separately, you can also conveniently import or export the schedules in order to maximize your door access schedule management efficiency. To configure the configuration on web Access Control > Schedule Setting> Import/Export Schedule(.xml) interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 32: Edit The Door Access Schedule

    If you want to edit or delete your door access schedule you created, you can edit or delete the configured schedule separately or in batch on the web Access Control > Schedule Setting> Schedule Management interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 33: Door Unlock Configuration

    A05 Admin Guide 9. Door Unlock Configuration A05 series access control terminal offer you three types of door access via QR code, RF card and Facial recognition. You can configure them on web interface. Moreover, you can import or exporting the configured files to maximize your RF card configuration efficiency.

  • Page 34: Configure Rf Card Code Format

    Parameter Set-up:  Status: It will show “Registered” when the picture uploaded conforms to the format and standard otherwise it would show “Unregistered” as the default. However, the status will be changed back to “Unregistered” if the AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 35: Configure Door Access Using Configured Files

    9.2. Configure Door Access Using Configured Files. A05 series access control terminals allow you to speedily configure user(s)-specific door access in batch by importing the configured all-in-one door access control files incorporating user information, door access type, door access schedule etc., thus all the door access setting can be done at one stop, saving your time and effort from configuring the door access for users separately when users are large in number.

  • Page 36: Editing The User(S)-Specific Door Access Data

    Access Control > Relay > Open Relay via QR Code interface. Note:  The function should work with Akuvox SmartPlus. For more information, please contact Akuvox technical support. 9.3.2. Unlock by Bluetooth You can also gain the door access by mobile phone with Bluetooth which is AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 37: Unlock By Http Command On Web Browser

    A05 Admin Guide used together with Akuvox SmartPlus. You can shake the mobile phone closer to the access control terminal for the door access. To configure the configuration on web Access Control > BLE > BLE interface. Parameter Set-up:  Enabled: enable or disable the Bluetooth function. Bluetooth is turned off by default.

  • Page 38: Unlock By Exit Button By The Door

    When you need to open the door from inside using the exit button installed by the door, you can configure the access control terminal Input to trigger the relay for the door access. To configure the configuration on web Access Control > Input > Input interface. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 39 “5”. then the action will not be triggered until 5 seconds after input status changed.  Execute Relay: set up relays to be triggered by the input.  Door Status: display the status of input signal. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 40: Body Temperature Measurement For Door Access（Optional

    9.3.5. Body Temperature Measurement for Door Access（Optional） A05 series provide you with an optional body temperature measurement function designed to be applied in the situation where the measurement becomes necessary for the safety of the residents and visitors etc. Residents and visitors are required to go through temperature measurement along with optional mask detection check before they are allowed for the door access.

  • Page 41: Ambient Temperature Configuration

    Parameter Set-up:  Start Time/End Time: select the start time and end time temperature by referring to the actual temperature measured at the time segments ranging from 10- 40℃degree Celsius. For example, when you divide the AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 42 You can divide the time segments according to your need.  Ambient Temperature: enter the ambient temperature degree. Accuracy can be ensured for the actual temperature value within the range from 10- 40 degree Celsius. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 43: Security

    Note:  Disarm tab will turn gray when the temper alarm is cleared.  The round rubber button at the back of the device must be in press-down status otherwise the alarm will not be fired. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 44: Security Notification Setting

    If you want to receive the security notification via email, you can configure the Email notification on the web interface properly. To configure the configuration on web Setting > Action > Email Notification interface. Parameter Set-up:  Sender’s Email Name: enter the name of the email sender. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 45: Ftp Notification Setting

    FTP notification on the web interface properly. To configure the configuration on web Setting > Action > FTP Notification interface. Parameter Set-up:  FTP server: enter the address (URL) of the FTP server for the FTP notification. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 46: Tftp Notification Setting

    FTP notification on the web interface properly. To configure the configuration on web Setting > Action > TFTP Notification interface. Parameter Set-up:  TFTP Server: enter the address (URL) of the TFTP server for the TFTP notification AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 47: Monitor And Image

    11. Monitor and Image 11.1.MJPEG Image Capturing A05 series allow you to capture the Mjpeg format monitoring image if needed. You can enable the MJPEG function and set the image quality on the web interface. To configure the configuration on web Surveillance > MJPEG >...

  • Page 48: Live Stream

    A05 Admin Guide 11.2.Live Stream If you want to check the real-time video from the A05 series access control terminal, you can go to the device web interface to obtain the real-time video or you can also enter the correct URL on the web browser to obtain it directly.

  • Page 49: Rtsp Stream Monitoring

    A05 Admin Guide 11.3.RTSP Stream Monitoring A05 series access control terminal support RTSP stream that allows intercom devices such as indoor monitor or the monitoring unit from the third party to monitor or obtain the the real time audio/ video (RTSP stream) from the access control terminal using the correct URL.

  • Page 50: Rtsp Stream Setting

    “256kbps”, “512 kbps”, “1024 kbps”, “2048 kbps”, “4096 kpbs” according to your network environment. The default video bitrate is “2048 kpbs”.  2nd Video Resolution2: select video resolution for the second video stream channel. While the default video solution is “VGA”. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 51: Onvif

    11.4. ONVIF Real-time video from the A05 series access control terminal camera can be searched and obtained by the Akuvox indoor monitor or by the third-party devices such as NVR (Network Video Recorder) you can configure the ONVIF function in the access control terminal so that other device will be able to see the video from the access control terminal.
  • Page 52 After the setting is complete, you can enter the ONVIF URL on the third-party device to view the video stream. For example: http://IP address:80/onvif/device_service Note:  Fill in the specific IP address of the access control terminal in the URL. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 53: Logs

     Time: select the specific time select the specific time span of the door logs you want to search, check or export.  Name/Code: select the “Name” and “Code” options to search door log by the name or by the PIN code. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 54: Temperature Log

    A05 Admin Guide 12.2.Temperature Log To check temperature log on web Access Control > Temperature Log interface. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 55: Debug

     LogLevel: select log levels from 1 to 7 levels. You will be instructed by Akuvox technical staff about the specific log level to be entered for debugging purpose. The default log level is 3, the higher the level is 5, the more complete the log is 7.

  • Page 56: Pcap For Debugging

    A05 Admin Guide 13.2.PCAP for Debugging PCAP in A05 series access control terminal is used to capture the data package going in and out of the devices for debugging and troubleshooting purpose. You can set up the PCAP on the device web Upgrade > Advanced >...

  • Page 57: Firmware Upgrade

    A05 Admin Guide 14. Firmware Upgrade Firmware of different versions for A05 series access control terminal can be upgraded on the device web Upgrade > Basic interface. Note:  Firmware files should be .rom format for upgrade. AKUVOX SMART INTERCOM...

  • Page 58: Backup

    A05 Admin Guide 15. Backup Configuration files can be imported to or exported out of the device to your local PC on the device web Upgrade > Advanced > Others interface if needed. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 59: Auto-Provisioning Via Configuration File

    Auto-provisioning is a feature used to configure or upgrade the devices in batch via third party servers. DHCP, PNP, TFTP, FTP, HTTPS are the protocols used by the Akuvox intercom devices to access the URL of the address of the third-party server which stores configuration files and firmware, which will then be used to update the firmware and the corresponding parameters on the access control terminal.

  • Page 60: Configuration Files For Auto-Provisioning

    MAC-based configuration files. 16.3.AutoP Schedule Akuvox provides you with different Autop methods that enable the access control terminal to perform provisioning for itself in a specific time according to your schedule. To configure the configuration on web Upgrade >...

  • Page 61: Dhcp Provisioning Configuration

    To set up DHCP AutoP with “Custom Option” and “Power on” mode, on web Upgrade > Advanced > Automatic Autop interface. Click Export tab in Export Autop Template to export Autop template. Then set up DHCP Option on DHCP server. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 62  The custom Option type must be a string. The value is the URL of TFTP server. Parameter Set-up:  Custom Option: enter the DHCP code that matched with corresponding URL so that device will find the configuration file server for the AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 63: Static Provisioning Configuration

    To download the Autop template on Upgrade > Advanced > Automatic Autop , and setup Autop server on Upgrade > Advanced > Manual Autop interface. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 64  Common AES Key: set up AES code for the intercom to decipher general Auto Provisioning configuration file.  AES Key (MAC): set up AES code for the intercom to decipher the MAC-based auto provisioning configuration file. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 65  HTTP: http://192.168.0.19/ (use the default port 80)  http://192.168.0.19:8080/ (use other ports, such as 8080)  HTTPS: https://192.168.0.19/ (use the default port 443) Tip:  Akuvox do not provide user specified server.  Please prepare TFTP/FTP/HTTP/HTTPS server by yourself. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 66: Integration With Third Party Device

    17. Integration with Third Party Device 17.1.Integration via Wiegand If you want to integrate the A05 series access control terminal with the third-party devices via Wiegand, you can configure the Wiegand on the web Device > Wiegand > Wiegand interface.

  • Page 67: Integration Via Rs485

    A05 series access control terminal and the third-party device is via OSDP protocol. You are required to check for the device integration protocol and make sure if that they use the same integration protocol. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 68: Osdp Setting

    If you select “None” then the card number will not be sent out but retained in the system. Note:  Dummy card numbers cannot be sent if “OSDP” is not selected in the RS485 list field. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 69: Web Interface Automatic Log-Out

    To configure the configuration on web Security > Basic > Session Time Out interface. Parameters Set-up:  Session Time Out Value: if there is no operation over the time, you need to login the website again. AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 70: System Reboot And Reset

    To set up the device restart schedule on web Upgrade > Advanced > Reboot Schedule interface 19.2.Reset If you want to reset the device system to the factory setting, you can it on the web Upgrade > Basic interface. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 71 A05 Admin Guide AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 72: Abbreviations

    FTP: File Transfer Protocol GND: Ground HTTP: Hypertext Transfer Protocol HTTPS: Hypertext Transfer Protocol Secure Socket Layer IP: Internet Protocol ID: Identification IR: Infrared LCD: Liquid Crystal Display LED: Light Emitting Diode MAX: Maximum POE: Power Over Ethernet AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 73 SDMC: SIP Devices Management Center TR069: Technical Report069 TCP: Transmission Control Protocol TLS: Transport Layer Security TFTP: Trivial File Transfer Protocol UDP: User Datagram Protocol URL: Uniform Resource Locator VLAN: Virtual Local Area Network WG: Wiegand AKUVOX SMART INTERCOM www.akuvox.com...

  • Page 74: Faq

    “3888” and “OK” to enter the system setting screen. Go to info screen to check the IP address. ✔Common method: Using Akuvox IP Scanner to search Akuvox devices in the same LAN network. Q2: Do Akuvox devices support opus codec? A2: For now, only Akuvox Android video IP phone R48G can support Opus audio codec.
  • Page 75 A6: Sorry, they are not supported. They need to be implemented via hardware modifications. Q7: How to confirm whether my device is hardware version 1 or hardware version 2? A7: 1.Label  Hardware version 1  Hardware version 2 AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 76 220.X.X.X is hardware version 2.  Hardware version The firmware is different between hardware version1 and hardware version 2. Go to Web-Status -Firmware Version. If the hardware version is 220.x, then the device is hardware version 2. AKUVOX SMART INTERCOM www.akuvox.com...
  • Page 77 A05 Admin Guide 22. Contact Us For more information about the product, please visit us at www.akuvox.com or feel free to contact us by Sales email: sales@akuvox.com Technical support email: support@akuvox.com Telephone: +86-592-2133061 ext.7694/8162 We highly appreciate your feedback about our products.
