  • Page 1 R26 Door Phone User Manual...

  • Page 2: Table Of Contents

    Content Overview....................3 1 Product Description....................3 2 Features........................ 4 3 Panel Description....................6 4 Unpacking......................6 5 Installation......................7 Configuration..................10 1 Web login......................10 1.1 Obtaining IP address.................10 1.2 Login the web................... 10 2 Status-Basic......................12 3 Intercom-Basic....................13 4 Intercom-LED Setting..................14 To setup the LED lighting mode................

  • Page 3: Overview

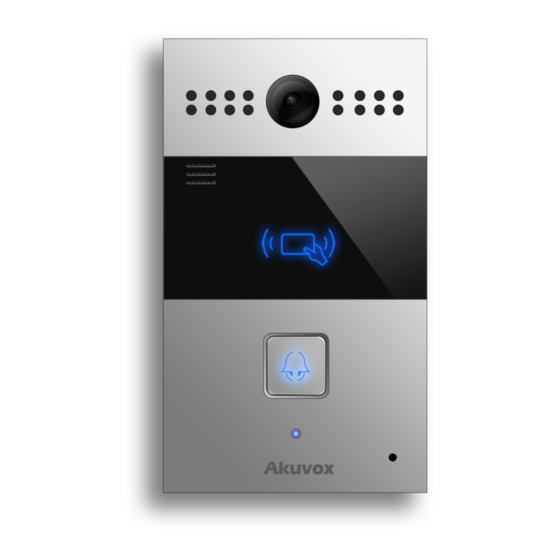

    Overview 1 Product Description Akuvox R26 is a SIP-compliant handfree video outdoor phone. It can be connected with your Akuvox IP Phone for remote unlock control and monitor. You can operate the indoor handset to communicate with visitors via voice and video, and unlock the door if you wish.

  • Page 4: Features

    2 Features  Highlight  Vandal resistant body, with a flush button  Wild-angle camera:90°  POE(IEEE802.3af, Power-over-Ethernet)  Two-way audio communication over IP network with Echo cancel feature  Complies with SIP Standard for easy integration in each SIP PBXes ...
  • Page 5  Speech Quality: 7kHz Audio  Echo Cancellation  Voice Activation Detection  Comfort Noise Generator  Video  Resolution: up to 1080p  Maximum image transfer rate:1080p-30pfs  High intensity white LEDs for picture lighting during dark hours with internal light sensor ...

  • Page 6: Panel Description

    3 Panel Description Infrared LED Thermal sensor Photosensitive sensor Camera Speaker RF card reader Call button Status LED 4 Unpacking Name Quantity Back cover Wall bracket Cable buckle M4X20 screw ST4x20 screw Screw fixing seat M3X5 screw M3X10 screw...

  • Page 7: Installation

    5 Installation With 86 embedded box: M4X20 Use the pen to screws to fix the mark hole wall bracket and location Embedded box. wall bracket Take down the Use 6mm Drill to M4 screws and drill the red hole remove the wall you marked before bracket Insert...
  • Page 8 Without 86 embedded box, you can follow the below step: Use 6mm Drill to drill the Mark the red hole marked hole before ,and dig a 5cm bracket in the depth square hole wall via using Use 4 ST4 Insert screws to fix screw fixing wall...
  • Page 9 Then put the cable buckle and sealing ring into the back cover. Place R26 into the wall bracket hole . Push down so that the device is fixed securely. Lock the Use 4 M3x5 screws to...

  • Page 10: Configuration

    1 Web login 1.1 Obtaining IP address The Akuvox R26 uses Static IP by default, and the default IP address is 192.168.1.100. If the IP address is unknown, after power on, when you see the LED light turns Blue, press the call button about 5s, the phone will announce its IP.

  • Page 12: Status-Basic

    2 Status-Basic Status, including product information, network information and Account information, can be viewed from Status -> Basic. Sections Description Product Information To display the device’s information such as Model name, MAC address (IP device’s physical address), Firmware version and Hardware firmware. Network Information To display the device’s Networking status(LAN Port),such as Port Type(which could be DHCP/Static/PPPoE), Link Status, IP...

  • Page 13: Intercom-Basic

    Auto mode for the following Intercom basic settings.  No Answer Call ： R26 will call to the No answer call number in order when the ringtone is time out without Disable by default. answer of the push button number.

  • Page 14: Intercom-Led Setting

     Dial out Time: When R26 calls to the other party, if the ringtone is over the Dial out Time without answer. R26 will continue calls to no answer call number in order. Push to Hang up To enable or disable the Push to Hang up function 4 Intercom-LED Setting To setup the LED lighting mode.

  • Page 15: Intercom- Relay&Input

     Status: Different relay types will show different status. Input There is a sensor that used to anti vandal in R26. When R26 is broken by violent means. The sensor will be triggered, then management center will receive the alarm.

  • Page 16: Intercom-Live Stream

     Display Name: Which is sent to the other call party for displaying 6 Intercom-Live Stream Sections Description Live Stream To check the real-time video from R26.

  • Page 17: Intercom-Aec Setting

    7 Intercom-AEC Setting Sections Description AEC Level AEC(Configurable Acoustic and Line Echo Cancelers) is used to adjust the echo effect during the communication. The default value is 700. Increase the level, the echo control is better.

  • Page 18: Intercom-Rtsp

    8 Intercom-RTSP Sections Description RTSP Basic To active the RTSP function, then R26 can be monitored. RTSP Stream To enabled RTSP video and select the video codec. R26 supports H264,H263 video codec. H264 by default. H.264 Video Parameters H264: A video stream compression standard. Different from H263, it provides an approximately identical level of video stream quality but a half bit rate.

  • Page 19: Intercom-Onvif

    Mode: modes Discoverable Non-discoverable. Discoverable default. Only Discoverable mode, then Onvif software can search R26.  User Name: To modify the user name you need. Admin by default.  Password: To modify the password you want. Admin by default. Note: User name and password is used for authentication.

  • Page 20: Intercom-Multicast

    10 Intercom-Multicast Sections Description Multicast Audio Receiving To display and configure the Multicast setting.  Multicast Receiver Enable: Enable receiver multicast function.  Receiver address : Setup the multicast address.  Receiver port : setup the multicast address port. Multicast Audio Sending To setup the multicast parameters.

  • Page 21: Intercom-Card Setting

    IC Key Name: To setup corresponding name for the card.  IC Key Code: Place the card in the R26 RF Card Read area, then click Abtain button. After R26 read the card code, click Add, the card information will show in the Door Card Management list.

  • Page 22: Account-Basic

    12 Account-Basic Sections Description SIP Account To display and configure the specific Account settings.  Status: To display register result.  Display Name: Which is sent to the other call party for display.  Register Name: Allocated by SIP server provider, used for authentication.
  • Page 23 This is for redundancy, if registering to Primary SIP server fails, the IP phone will go to Secondary SIP server for registering. Note: Secondary SIP server is used for redundancy, it can be left blank if there is not redundancy SIP server in user’s environment.

  • Page 24: Account-Advanced

    13 Account-Advanced...
  • Page 25 Sections Description SIP Account To display current Account settings or to select which account to display. Codecs To display and configure available/unavailable codecs list. Codec means coder-decoder which is used to transfer analog signal to digital signal or vice versa. Familiar codecs are PCMU(G711U), PCMA(G711A), G722 (wide-bandth codecs), G729 and so on.
  • Page 26 auto-answered when there is an incoming call for designated account.  Ringtones: Choose the ringtone for each account.  Provisioning Response ACK: 100% reliability for all provisional messages, this means it will send ACK every time the IP phone receives a provisional SIP message from SIP server.

  • Page 27: Network-Basic

     Rport: Remote Port, if enabled, it will add Remote Port into outgoing SIP message for designated account. User Agent One can customize User Agent field in the SIP message; If user agent is set to specific value, user could see the information from PCAP.

  • Page 28: Network-Advanced

    15 Network-Advanced Sections Description Local RTP To display and configure Local RTP settings.  Max RTP Port: Determine the maximum port that RTP stream can use.  Starting RTP Port: Determine the minimum port that RTP stream can use. SNMP To display and configure SNMP settings.
  • Page 29 Note: Please consult your administrator for specific VLAN settings in your networking environment. TR069 To display and configure TR069 settings.  Active: To enable or disable TR069 feature.  Version: To select supported TR069 version (version 1.0 or 1.1).  ACS/CPE: ACS is short for Auto configuration servers as server side, CPE is short for Customer-premise equipment as client side devices.

  • Page 30: Phone-Time/Language

    16 Phone-Time/Language Sections Description To configure NTP server related settings.  Time Zone: To select local Time Zone for NTP server.  Primary Server: To configure primary NTP server address.  Secondary Server: To configure secondary NTP server address, it takes effect if primary NTP server is unreachable.

  • Page 31: Phone-Call Feature

    17 Phone-Call Feature Sections Description  Mode Mode: Select the desired mode. DND (Do Not Disturb) allows IP phones to ignore any incoming calls.  Return Code when DND: Determine what response code should be sent back to server when there is an incoming call if DND on.

  • Page 32: Phone-Voice

     Active: To enable or disable Intercom feature.  Intercom Mute: If enabled, once the call established, the callee will be muted.  Others Return Code When Refuse: Allows user to assign specific code as return code to SIP server when an incoming call is rejected.

  • Page 33: Multicast

    19 Multicast Sections Description Multicast Setting To display and configure the Multicast setting.  Paging Barge: Choose the multicast number ,the range is 1-10.  Paging priority Active: Enable o disable the multicast. Priority List To setup the multicast parameters. ...

  • Page 34: Call Log

    To display call history records. Available call history types are All calls, Dialed calls, Received calls, Missed calls, Forwarded calls. Users can check the call history in detail. Tick the number to delete or delete all logs. R26 supports 100 call logs.

  • Page 35: Door Log

    21 Door Log Sections Description Door Log To display unlock history Users can check the unlock information in detail. User can delete one or all logs. The maximum door log is 500.

  • Page 36: Upgrade-Basic

    22 Upgrade-Basic Sections Description Upgrade To select upgrading zip file from local or a remote server automatically. Note: Please make sure it’s right file format for right model. Firmware version To display firmware version, firmware version starts with MODEL name. Hardware Version To display Hardware version.

  • Page 37: Upgrade-Advanced

    23 Upgrade-Advanced Sections Description PNP Option To display and configure PNP setting for Auto Provisioning.  PNP: Plug and Play, once PNP is enabled, the phone will send SIP subscription message to PNP server automatically to get Auto Provisioning server’s address. By default, this SIP message is sent to multicast address 224.0.1.75(PNP server address by standard).
  • Page 38 access, otherwise left blank.  Password: Configure if server needs a password to access, otherwise left blank.  Common AES Key: Used for IP phone to decipher common Auto Provisioning configuration file.  AES Key (MAC): Used for IP phone to decipher MAC-oriented auto provisioning configuration file(for example, file name could be 0c1105888888.cfg if IP phone’s MAC address is 0c1105888888).

  • Page 39: Security-Basic

    24 Security-Basic Sections Description Web Password Modify To modify user’s password.  Current Password: The current password you used.  New Password: Input new password you intend to use.  Confirm Password: Repeat the new password.
