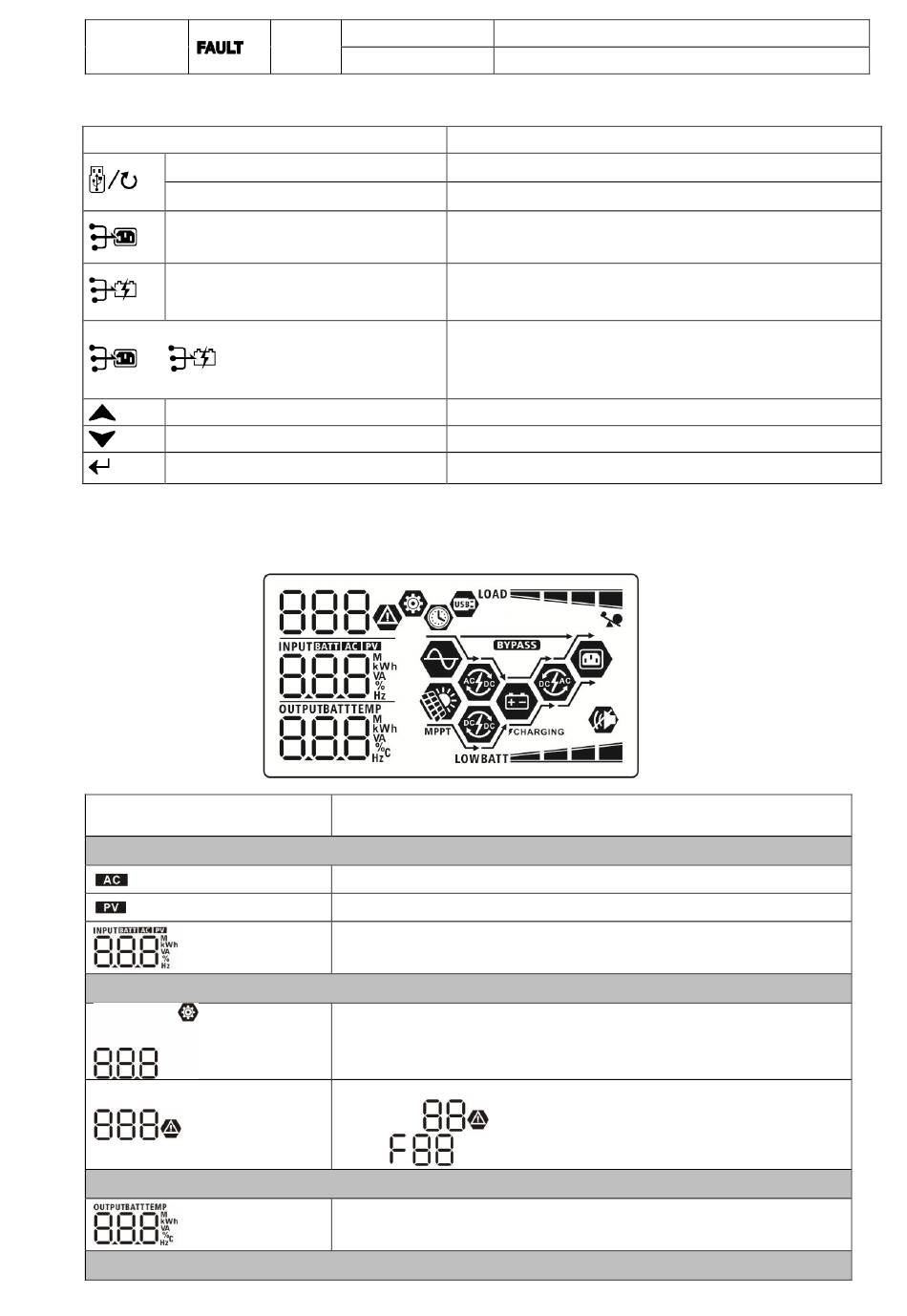

Function Keys
Function Key
ESC
USB function setting
Timer setting for the Output source
priority
Timer setting for the Charger source
priority
+
Up
Down
Enter

LCD Display Icons

Icon
Input Source Information
Configuration Program and Fault Information
Output Information
Battery Information
Solid On
Red
Flashing
Description
Exit the setting
Select USB OTG functions
Setup the timer for prioritizing the output source
Setup the timer for prioritizing the charger source
Press these two keys at the time to switch RGB LED bar
for output source priority and battery discharge/charge
status
To last selection
To next selection
To confirm/enter the selection in setting mode
Indicates the AC input.
Indicates the PV input
Indicate input voltage, input frequency, PV voltage, charger current,
charger power, battery voltage.
Indicates the setting programs.
Indicates the warning and fault codes.
Warning:
Fault: lighting with fault code
Indicate output voltage, output frequency, load percent, load in VA,
load in Watt and discharging current.
14
Fault mode
Warning mode
Function description
flashing with warning code.
