REVEX
PA from 35A to 90A

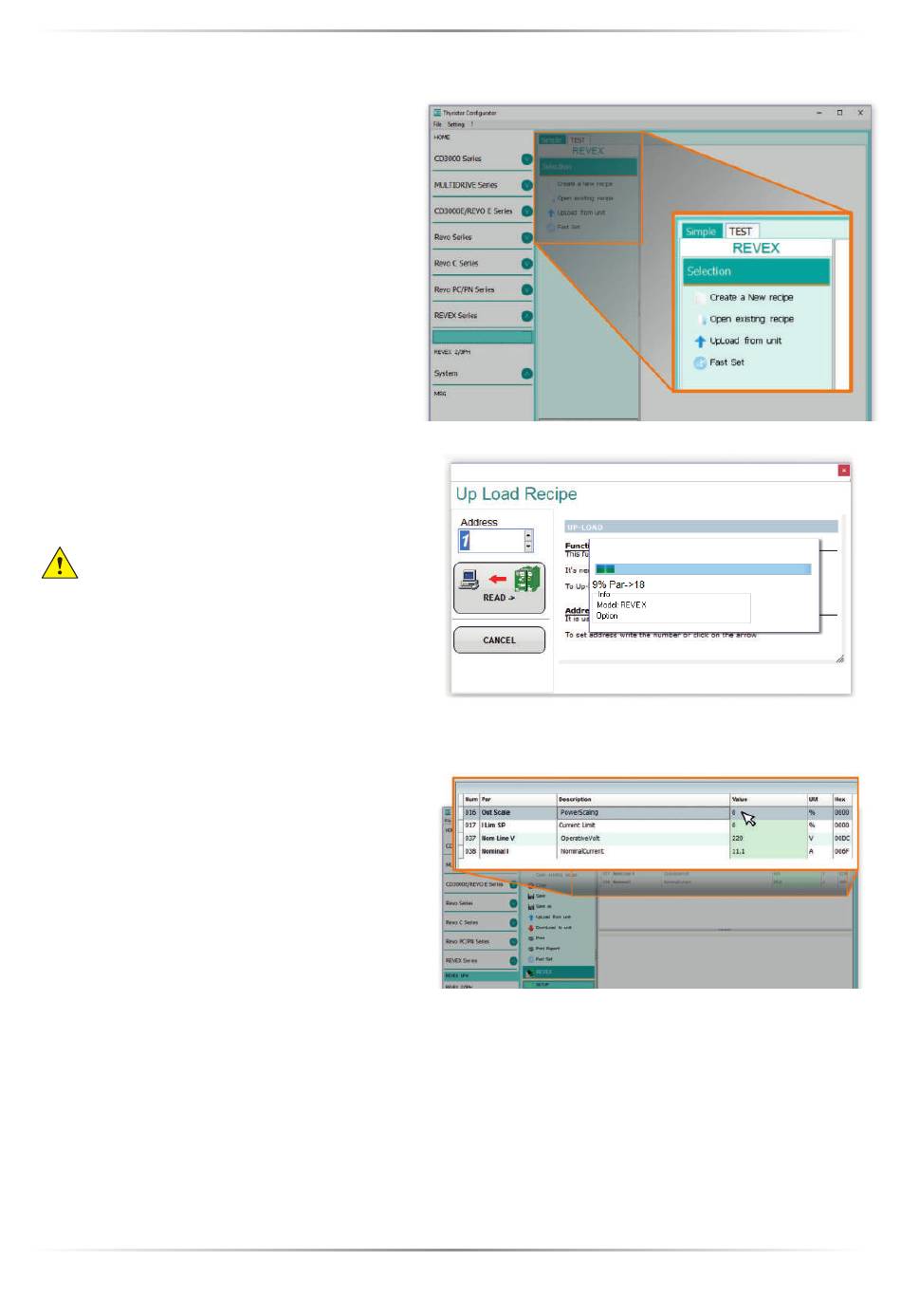

10.5 Using the Confi gurator
After the software
communication has been set up and model type
selected, is possible to operate with the power
controller.
10.5.1 To view or save a power controller's
settings using "Simple" view section:
1) Click Simple, if not already on the simple
view
2) Click
Upload from unit
3) Set the address, if necessary
4) Click
READ->
5) Wait for the software to read the parameter
settings
6) Click
OK
7) If necessary save the settings in a recipe fi le:
- Click
Save
- Name the recipe
- Click button
Save
NOTE! In the simple view the change are not
"live", so to take eff ect the change in simple
section is necessary to download it following
download procedure.
10.5.2 To edit a setting in a recipe:
1) Click Simple, if not already on the simple view
2) Click existing recipe
Open
3) Locate and select the recipe fi le and click
4) Click
OK
5) Click the menu with the setting you want to
change
-
SETUP
-
ADVANCED SETUP
-
HARDWARE
-
COM MUNICATIONS
6) Select the value you want to change
7) Edit the value with the increment and decrement
buttons in the fi eld or type the new value and
press the Enter key
8) Repeat steps 5 to 7 for all the changes you want to make
9) To save the settings in a recipe fi le:
- Click
Save
- Name the recipe
- Click button
Save
has been installed,
Open
REVEX PA
