CD Automation REVEX PA User Manual page 43

REVEX
PA from 35A to 90A

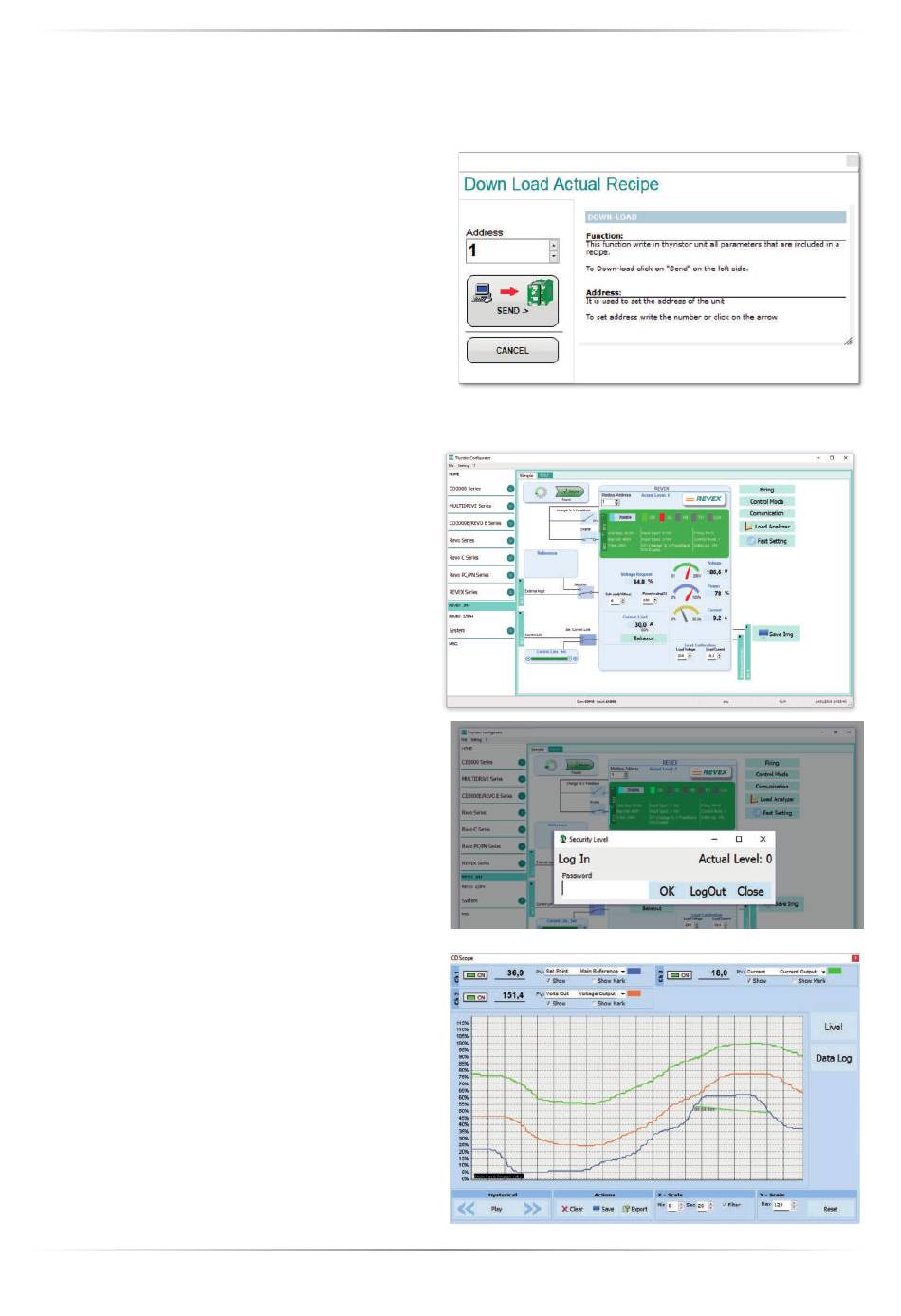

10.5.3 To download a recipe fi le into a power controller:
1) Click Simple, if not already on the Simple view
2) Click existing recipe
Open
3) Locate and select the recipe fi le and click
4) Click
OK
5) Click
Download to unit
6) Set the address, if necessary
7) Click
SEND->
8) Wait for the software to write the parameter
settings
9) Click
OK
10.5.4 To monitor a power controller with the Test view:
1) Click Test, if not already on the test view
2) Click
Online
10.5.5 To log in on the test view to change
the digital input and analog input functions:
1) Click the
Access Level
out)
2) Type the password:
3) Click
OK
10.5.6 To log out the test view:
1) Click the Access Level value.
2) Click
Log out.
3) Click OK.
10.5.7 To view data on the scope:
1) Click Test, if not already on the test view
2) Click
Online
3) Click
Load Analyzer
4) For each of up to three channels (Ch 1 to Ch 3):
- With choose the value to monitor
PV1
- Select
Show
- Click the color swatch to change the color
- Click the button to turn the channel on.
Open
value (zero when logged
1111
43
User's manual
