REVEX
PA from 35A to 90A

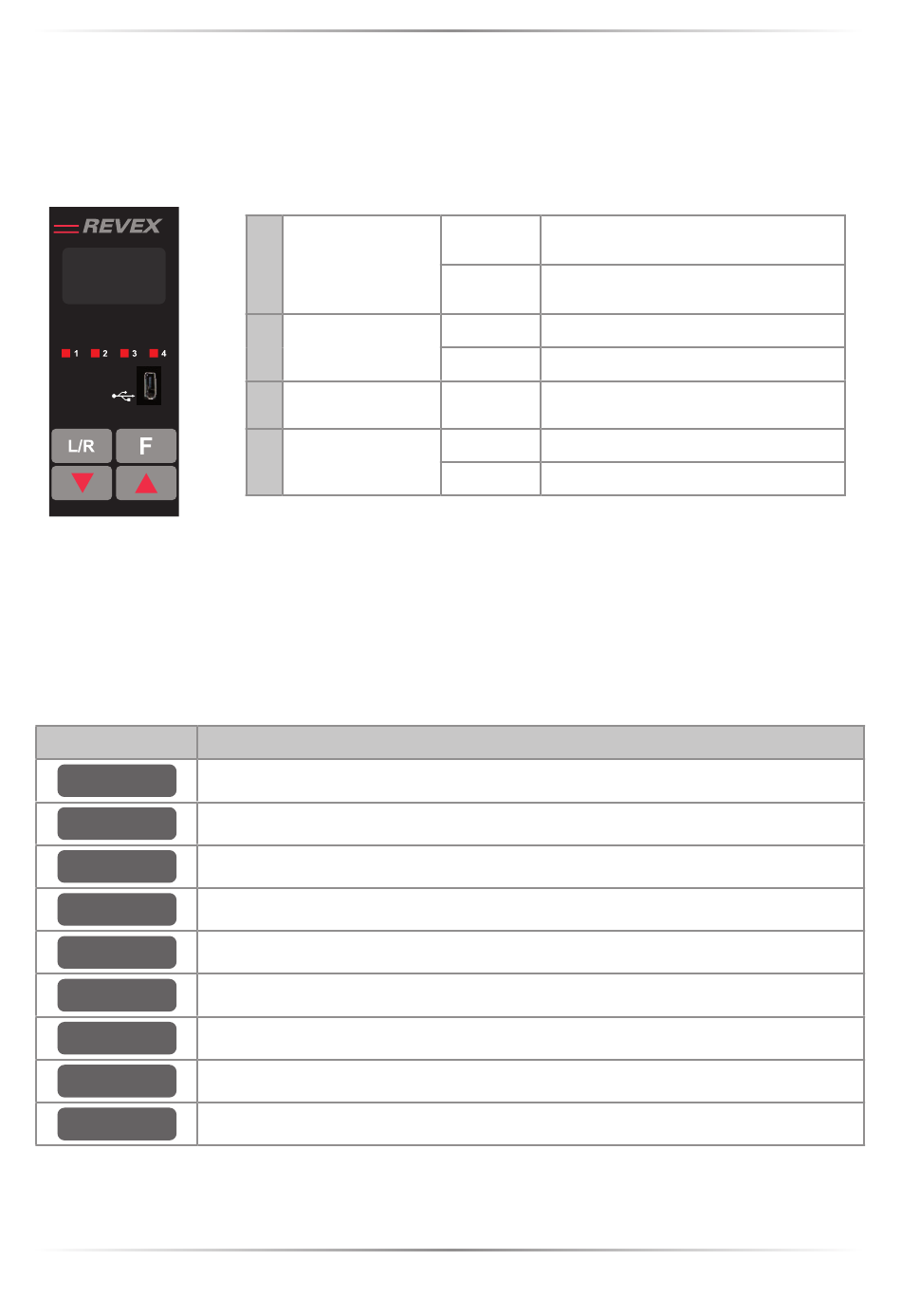

9.2 Led indicators

The four indicators on the control panel show the general state of the power controller.
Aux High
SP 100%

9.3 Displayed alarms

Alarm Description
HeatBrk
Heater Break (if available)
Aux High
Aux voltage too high
Aux Low
Aux voltage too low
ComError
Communication Watchdog error
Aux Line Loss
Auxiliary voltage (24V) not present
Line Loss
Line power not detected
I Limit
Output limited by current limit feature (if available)
SHRT
Short Circuit on SCR
SCR Temp
Thermal Switch over temperature
Local/Remote
1
Enable
2
Communications
3
Alarm
4
Power output set locally or via
Flashing
communications
Power output set remotely (via analog
Off
input)
On Output enabled
Off Output disabled
Flashing Active communications
Flashing Active alarm
Off No alarm
27
