Hardware Design Files
4.2 PCB Layouts
The PCB is 62-mils standard thickness with 2-oz copper on all 6 layers.
12
TPSM64406 4-Phase, 36V, Single 12A Output, Synchronous, Buck Module
Evaluation Module

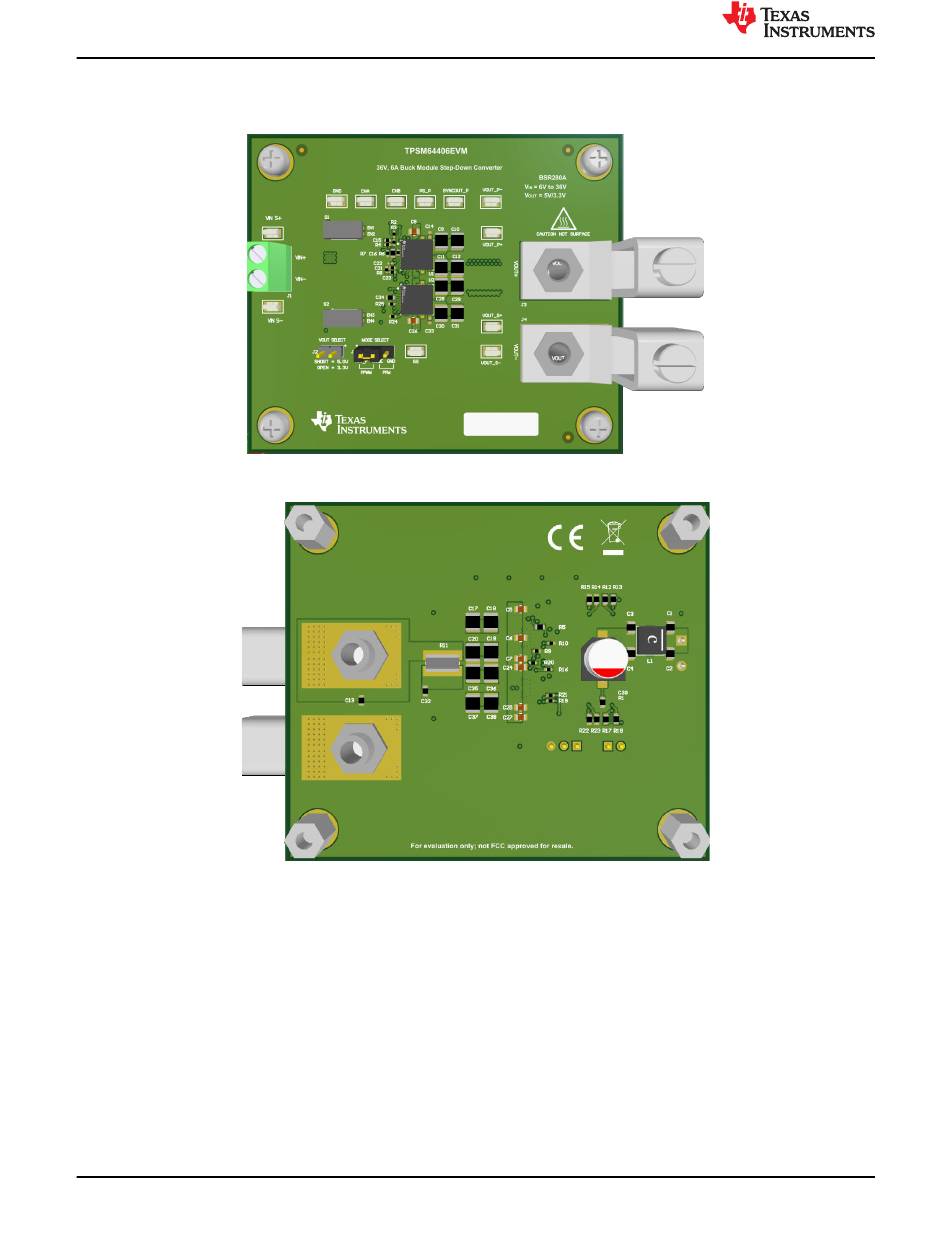

Figure 4-2. Top 3D View
Figure 4-3. Bottom 3D View
Copyright © 2024 Texas Instruments Incorporated
www.ti.com
SLVUCT1 – APRIL 2024
Submit Document Feedback
