EVM User's Guide: TPSM82813PEVM-062, TPSM82816PEVM-062
MagPack™ Technology 3A/6A Power Module with
Frequency Sync Evaluation Module
Description

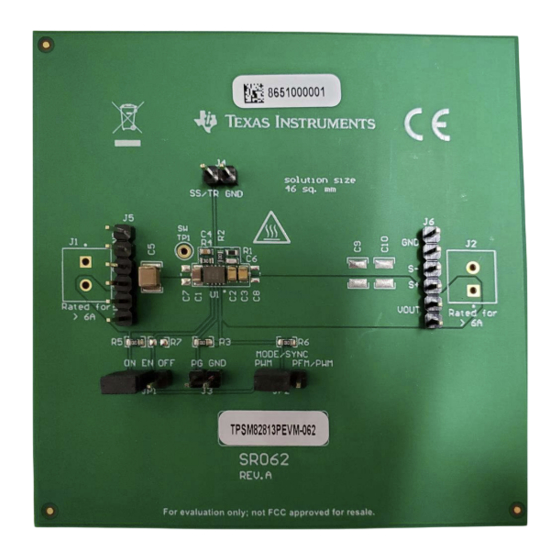

The TPSM8281xPEVM-062 evaluation modules
(EVM) facilitate the evaluation of the TPSM82813 and
TPSM82816, 3A and 6A pin-to-pin compatible step-
down power modules with frequency synchronization
in a 2.5mm × 3mm × 1.95mm MagPack
The EVMs provide a 1.8V output voltage with 1%
accuracy for input voltages up to 6V.
SLUUD40 – JULY 2024
Submit Document Feedback
Features
• 6A or 3A output current power module with
integrated inductor in a MagPack
• 2.5mm × 3mm power module provides 46mm
total solution-size with 1.95mm height
™ package. • Excellent thermal performance (θ
for TPSM82816 and 27.4 °C/W for TPSM82813)
• Synchronizable to an external clock
MagPack™ Technology 3A/6A Power Module with Frequency Sync Evaluation
Copyright © 2024 Texas Instruments Incorporated
Description
™ package
2
= 26.6 °C/W
JA
1
Module
