EVM User's Guide: TPSM828303AEVM-245
TPSM82830xAEVM Evaluation Module
Description
TPSM82830xAEVM evaluation module (EVM) is a
simple, easy-to-use synchronous step-down DC/DC
power module with integrated inductor. The EVM is
available for different output current versions such
as TPSM828301AEVM for 1A, TPSM828302AEVM
for 2A and TPSM828303AEVM for 3A. The EVMs
regulate the output voltage to 1.8 V with the input
voltage from 2.25 V to 5.5V.
Get Started
1. Order the EVM on ti.com.
2. Download the data sheet (SLVSGM1).
3. Use data sheet or WEBENCH
output voltage & to change the input &/or output
capacitors.
SLVUCQ8 – JULY 2023
Submit Document Feedback
® to modify the

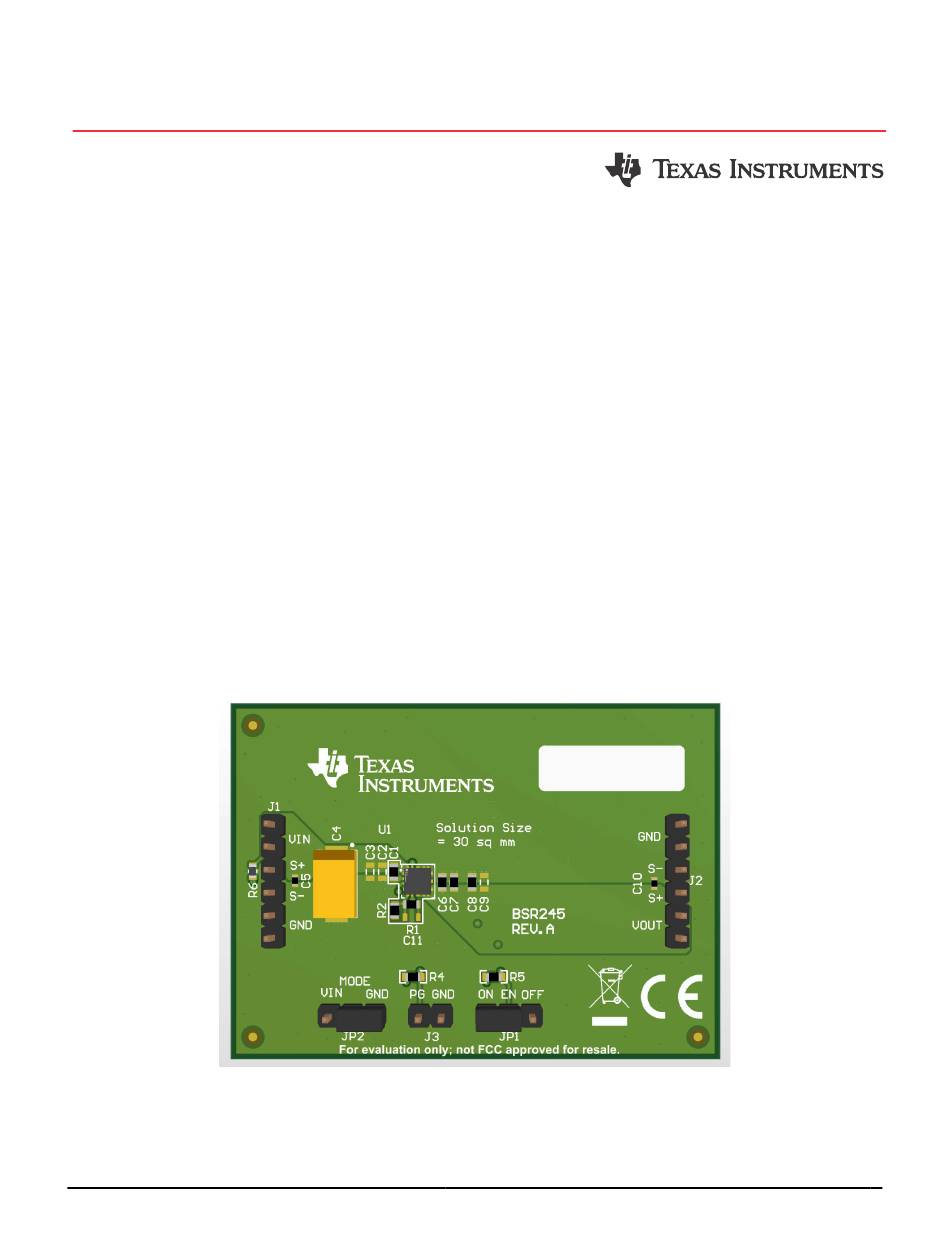

TPSM82830xAEVM Hardware Image (Top View)
Copyright © 2023 Texas Instruments Incorporated
Features
• 2.25-V to 5.5-V input voltage range
• 0.5-V to 4.5-V adjustable output voltage
• 1% FB voltage accuracy (–40°C to 125°C T
• 2.0-MHz switching frequency
• DCS-Control topology
• Optimized EMI performance
• Facilitates CISPR 11/32 compliance
– Integrated on-chip noise-filtering capacitors
– Measurements according to CISPR available
• Excellent transient response
• MODE pin, power-good output
• Supports 1.2-V GPIO
• 100% duty cycle for lowest dropout
• Active output discharge
• Thermal shutdown protection
• Hiccup or latch-off OCP/OVP
Applications
• Factory automation and control
• Industrial PC
• ASIC, SoC, and MCU supply
• Generic point of load
TPSM82830xAEVM Evaluation Module
