EVM User's Guide: TPSM82843678EVM-057
TPSM82843xEVM-057 Evaluation Module
Description
The TPSM82843xEVM-057 facilitates the evaluation
of the TPSM82843x family of 600mA, step-down
converter power modules with 275nA I
2.65mm x 1.27mm QFN packages. The EVM contains
three separate circuits to create output voltages
between 0.4V and 3.6V from higher input voltages
between 1.8V and 5.5V. The TPSM82843x is a highly
efficient and tiny device module for point-of-load
(POL) converters for space-constrained applications.
Get Started
1. Order the TPSM82843678EVM-057.
2. Download the TPSM82843 data
3. Use data sheet or WEBENCH
output voltage.
SLUUD41 – AUGUST 2024
Submit Document Feedback
Features
•
•
•
in 2.45mm ×
Q
•
•
•
•
•
•
•
•
sheet.
® to modify the
Applications
•
•
•
•
•

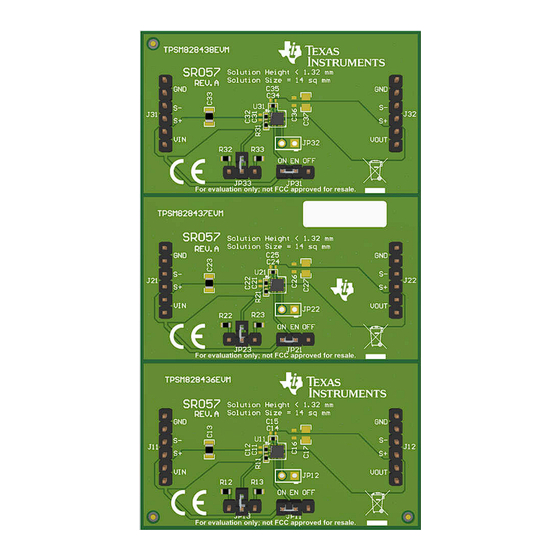

TPSM82843xEVM-057 Hardware (Top View)
Copyright © 2024 Texas Instruments Incorporated
Input voltage range: 1.8V to 5.5V
Output voltage range: 0.4V to 3.6V
275nA typical quiescent current
600mA output current
1% output voltage accuracy
4nA typical shutdown current
Active output discharge
Low output voltage ripple in power save mode
RF-friendly and fast transient DCS-Control
Automatic transition to no ripple 100% mode
VSET pin-selectable output voltage through a
single resistor
– TPSM828436: 0.4V to 0.8V
– TPSM828437: 0.8V to 1.8V
– TPSM828438: 1.8V to 3.6V
Wearable electronics
Headsets, headphones, and ear buds
Mobile phones
Medical sensor patches
Hearing aid
TPSM82843xEVM-057 Evaluation Module
