TPSM8D6C24 2-Phase Power Module Evaluation Module
User's Guide
This user's guide describes the characteristics, operation, and use of the TPSM8D6C24EVM-2PH evaluation
module (EVM). In addition, the user's guide includes test information, descriptions, and results. A complete
schematic diagram, printed circuit board layouts, and bill of materials are also included in this document.
1 Description..............................................................................................................................................................................
1.1 Before You Begin...............................................................................................................................................................
1.2 Features.............................................................................................................................................................................
2 Electrical Performance Specifications.................................................................................................................................
3
Schematic................................................................................................................................................................................5
Setup................................................................................................................................................................................6
4.1 Test and Configuration Software........................................................................................................................................
4.2 Test Equipment..................................................................................................................................................................
4.4 Evaluating Split Rail Input..................................................................................................................................................
5.1 Configuration Procedure....................................................................................................................................................
6 Test Procedure........................................................................................................................................................................
6.1 Line and Load Regulation and Efficiency Measurement Procedure..................................................................................
6.2 Efficiency Measurement Test Points..................................................................................................................................
6.3 Control Loop Gain and Phase Measurement Procedure...................................................................................................
7 Performance Data and Typical Characteristic Curves......................................................................................................
7.1
Efficiency..........................................................................................................................................................................10
7.2 Load Regulation...............................................................................................................................................................
Regulation.................................................................................................................................................................11
7.4 Transient Response.........................................................................................................................................................
7.5 Control Loop Bode Plot....................................................................................................................................................
7.6 Output Ripple...................................................................................................................................................................
On........................................................................................................................................................................13
Off........................................................................................................................................................................14
7.9 Thermal Image.................................................................................................................................................................
8 EVM Assembly Drawing and PCB Layout..........................................................................................................................
9 Bill of Materials.....................................................................................................................................................................
10 Using the Fusion GUI.........................................................................................................................................................
10.1 Opening the Fusion GUI................................................................................................................................................
10.2 General Settings............................................................................................................................................................
10.3 Changing ON_OFF_CONFIG........................................................................................................................................
10.4 Pop-Up for Some Commands While Conversion is Enabled.........................................................................................
10.5 SMBALERT# Mask........................................................................................................................................................
10.6 Device Info.....................................................................................................................................................................
Commands..........................................................................................................................................................28
Config........................................................................................................................................................................29
Strapping..................................................................................................................................................................30
10.10 Monitor.........................................................................................................................................................................
10.11 Status...........................................................................................................................................................................
History..................................................................................................................................................................32
SLUUCL8A - DECEMBER 2021 - REVISED FEBRUARY 2022
Submit Document Feedback
ABSTRACT
Table of Contents
Connectors....................................................................................................................7
GUI............................................................................................................................8
TPSM8D6C24 2-Phase Power Module Evaluation Module User's Guide
Copyright © 2022 Texas Instruments Incorporated
Table of Contents
3
3
3
4
6
6
8
8
8
8
9
9
10
10
11
12
12
15
16
19
22
22
23
23
25
26
27
31
32
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments TPSM8D6C24
Summary of Contents for Texas Instruments TPSM8D6C24
-
Page 1: Table Of Contents
10.7 Phase Commands................................28 10.8 All Config..................................29 10.9 Pin Strapping..................................30 10.10 Monitor..................................10.11 Status................................... 11 Revision History..................................32 SLUUCL8A – DECEMBER 2021 – REVISED FEBRUARY 2022 TPSM8D6C24 2-Phase Power Module Evaluation Module User's Guide Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated... - Page 2 PMBus is a registered trademark of System Management Interface Forum, Inc.. All trademarks are the property of their respective owners. TPSM8D6C24 2-Phase Power Module Evaluation Module User's Guide SLUUCL8A – DECEMBER 2021 – REVISED FEBRUARY 2022 Submit Document Feedback Copyright © 2022 Texas Instruments Incorporated...
-
Page 3: Description

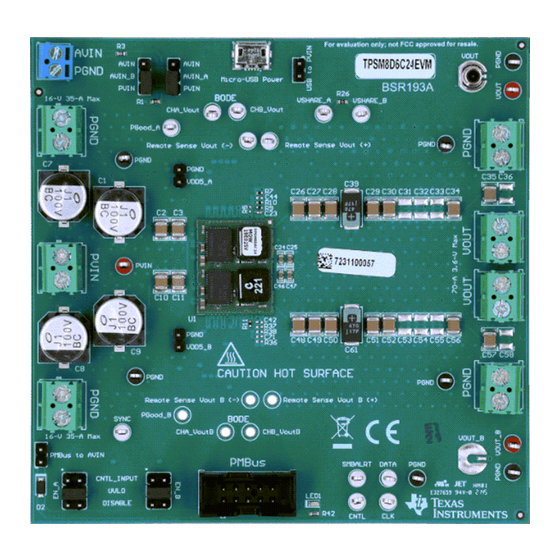

Description 1 Description The TPSM8D6C24 is a configurable dual-output buck converter module. The TPSM8D6C24EVM-2PH uses a nominal 12-V bus to produce a regulated 0.8-V output at up to 70 A of load current. The TPSM8D6C24EVM-2PH demonstrates the dual phase capability. -
