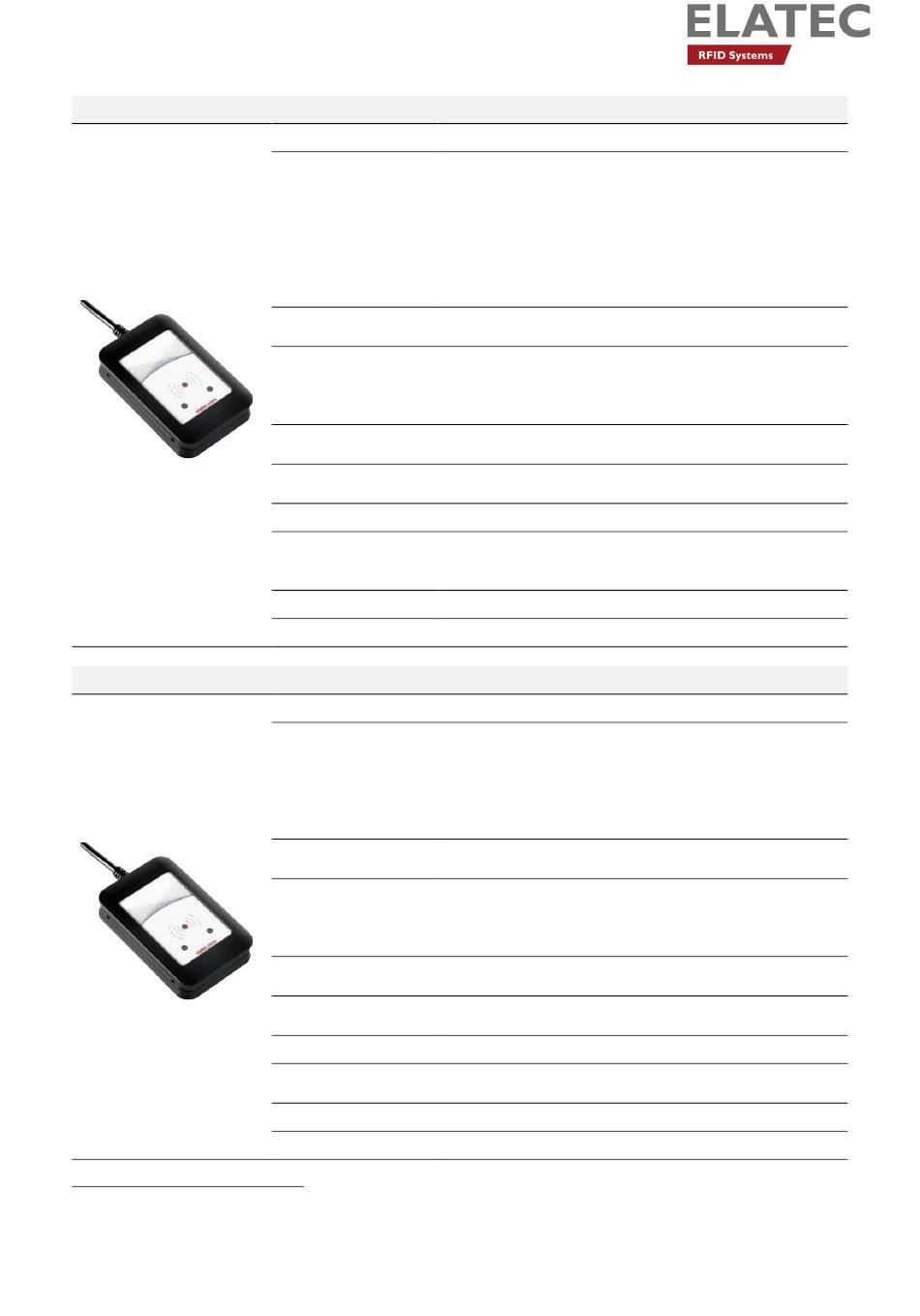

TWN4 MultiTech 2 LEGIC
TWN4 MultiTech 2 LEGIC LF HF
It is strictly prohibited to take the BLE SAM card out of the SAM slot on the reader. Removing the BLE SAM card is considered
2
as an unauthorized product modification and improper use of the product, which may result in the loss of product certifications.
ELATEC excludes any liability in case of unauthorized product modification or improper use of the product.
© 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024
Frequencies 125 kHz (LF) / 13.56 MHz (HF) / 2.4 GHz (BLE)
Integrated RFID LF antenna
Diameter: 16.00 mm / 0.63 inch
Number of turns: 120
Integrated RFID HF antenna
Antennas
Dimensions: 42.00 x 47.00 mm / 1.65 x 1.85 inch
Number of turns: 3
Bluetooth Low Energy
Plug-in BLE SAM card
Dimensions Approx.
(L x W x H) 88.00 x 56.00 x 18.50 mm / 3.46 x 2.20 x 0.73 inch
USB: 4.3 V - 5.5 V
RS-232: requires 5 V external power supply
Power
ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Current
RF field on: 140 mA typically
consumption
Temperature Operating: -25 °C up to +70 °C / -13 °F up to +158 °F
ranges Storage: -40 °C up to +75 °C / -40 °F up to +167 °F
Relative humidity 5% to 95% non-condensing
LF and HF: up to 100 mm / 4 inch, depending on
R/W distance environment and transponder
BLE: up to several meters/feet
MTBF 500,000 hours
Weight Approx. 120 g / 4.23 oz (with cable)
Frequencies 125 kHz (LF) / 13.56 MHz (HF)
Integrated RFID LF antenna
Diameter: 16.00 mm / 0.63 inch
Number of turns: 120
Antennas
Integrated RFID HF antenna
Dimensions: 42.00 x 47.00 mm / 1.65 x 1.85 inch
Number of turns: 3
Dimensions (L x W Approx.
x H) 88.00 x 56.00 x 18.50 mm / 3.46 x 2.20 x 0.73 inch
USB: 4.3 V - 5.5 V
RS-232: requires 5 V external power supply
Power
ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Current
RF field on: 140 mA typically
consumption
Temperature Operating: -25 °C up to +70 °C / -13 °F up to +158 °F
ranges Storage: -40 °C up to +75 °C / -40 °F up to +167 °F
Relative humidity 5% to 95% non-condensing
LF and HF: up to 100 mm / 4 inch, depending on
R/W distance
environment and transponder
MTBF 500,000 hours
Weight Approx. 120 g / 4.23 oz (with cable)
2
