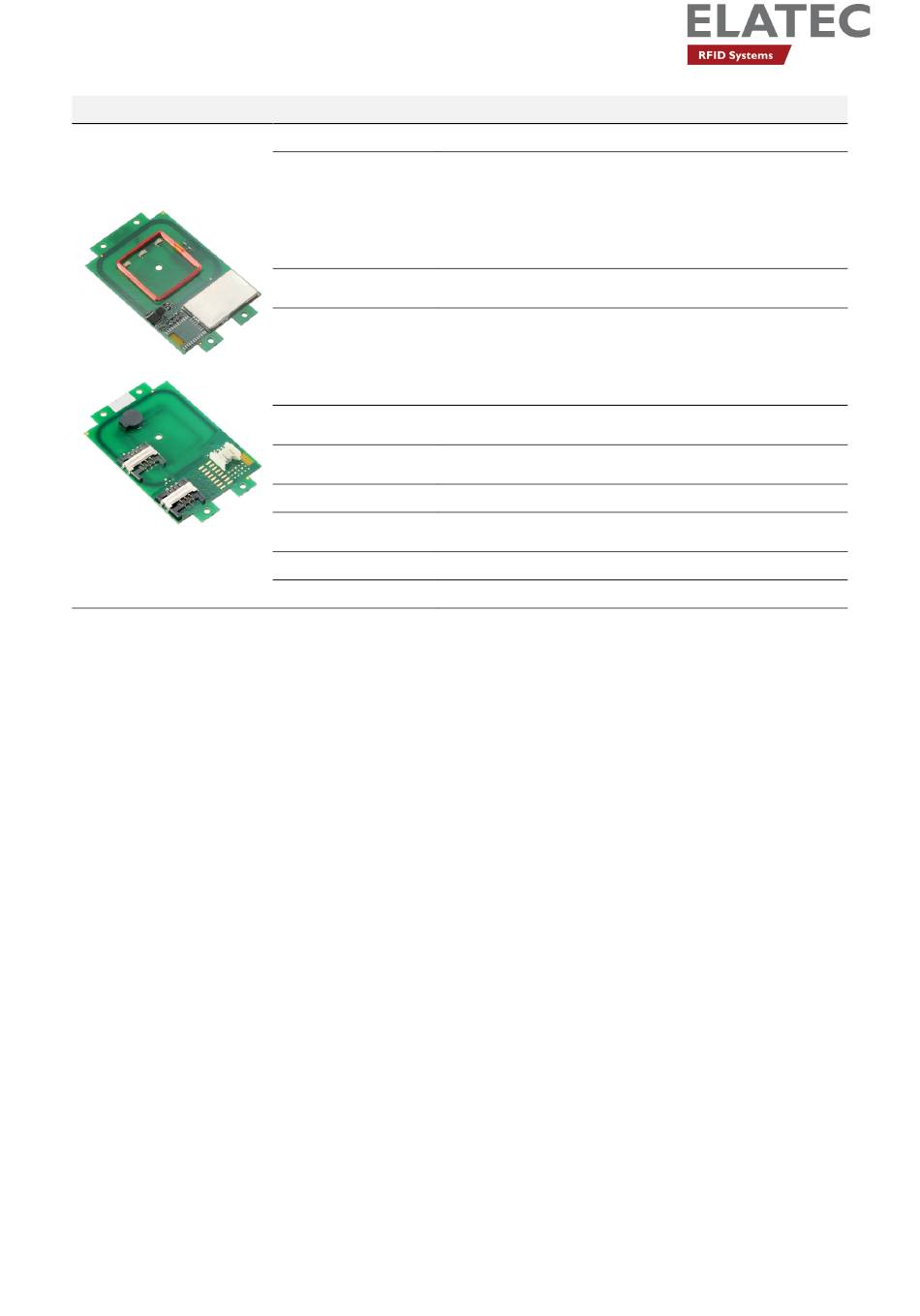

TWN4 MultiTech 2 M LF HF
Refer to the data sheet of your product for additional technical specifications.
© 2024 – ELATEC GmbH – TWN4 MultiTech 2 family – user manual – DocRev01 – EN – 05/2024
Frequencies 125 kHz (LF) / 13.56 MHz (HF)
Integrated RFID LF antenna
Dimensions: 28.00 x 28.00 mm / 1.10 x 1.10 inch
Number of turns: 151
Antennas
Integrated RFID HF antenna
Dimensions: 42.00 x 44.00 mm / 1.65 x 1.73 inch
Number of turns: 3
Dimensions Approx.
(L x W x H) 76.00 x 49.00 x 8.20 mm / 2.99 x 1.93 x 0.32 inch
USB: 4.3 V - 5.5 V
Generic interface (X1): 3.3 V ± 5%
Power RS-232: requires 5 V external power supply
ES1/PS2 classified power source according to
IEC 62368-1, short-circuit current < 8 A
Current
RF field on: 120 mA typically / Sleep: 500 µA typ.
consumption
Temperature Operating: -25 °C up to +80 °C / -13 °F up to +176 °F
ranges Storage: -40 °C up to +85 °C / -40 °F up to +185 °F
Relative humidity 5% to 95% non-condensing
LF and HF: up to 100 mm / 4 inch, depending on
R/W distance
environment and transponder
MTBF 500,000 hours
Weight Approx. 10 g / 0.35 oz (without cable)
